Magneto Cover LH - Bs Vi

Select a diagram reference or a row below to enquire about the exact part.

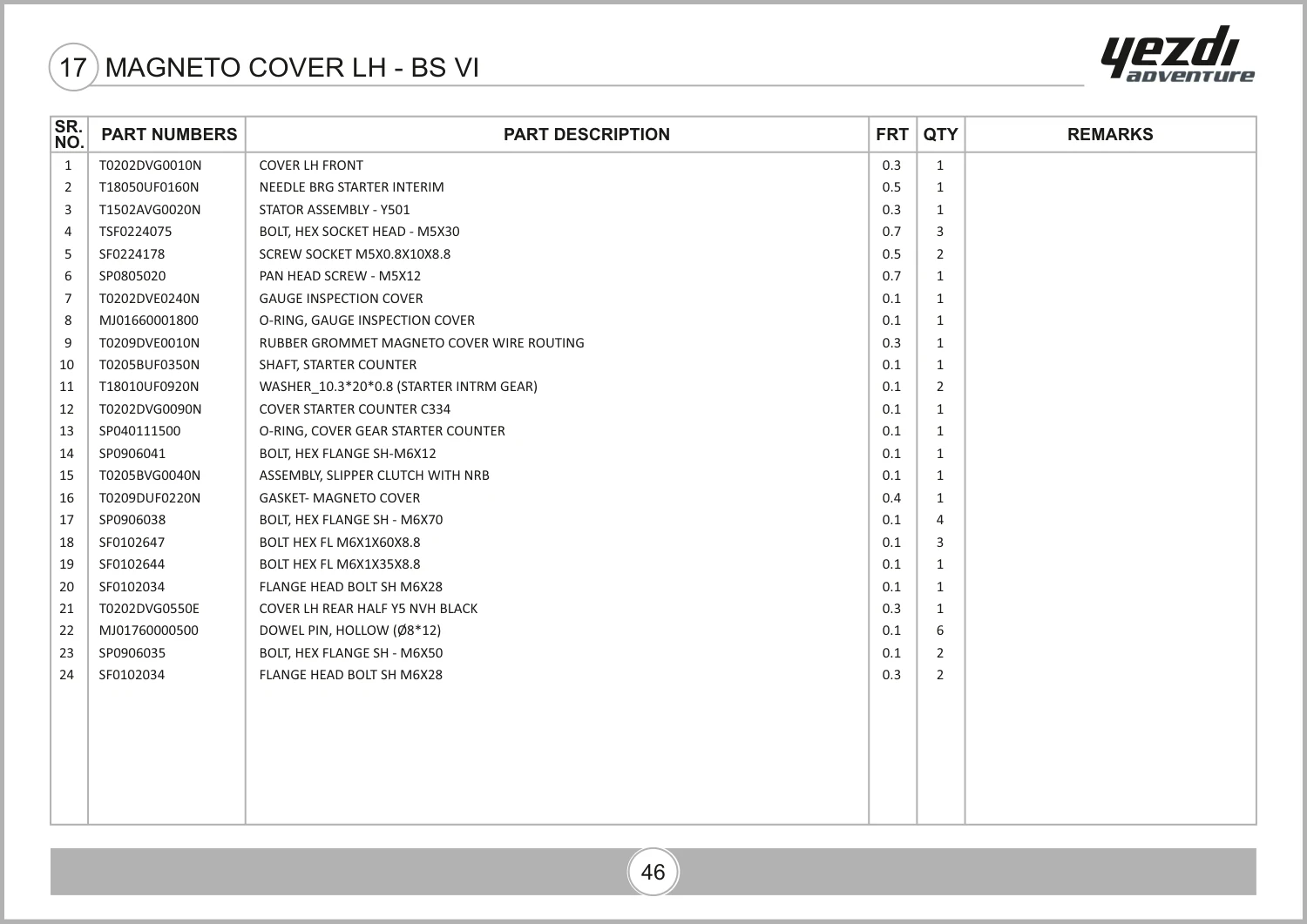

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Adventure · Rev 22 · p. 45Original parts list ↗

24 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover LH FrontT0202DVG0010N	1	Enquiry ↗
2	Needle Brg Starter InterimT18050UF0160N	1	Enquiry ↗
3	Stator Assembly - Y501T1502AVG0020N	1	Enquiry ↗
4	Bolt, Hex Socket Head - M5X30TSF0224075	3	Enquiry ↗
5	Screw Socket M5X0.8X10X8.8SF0224178	2	Enquiry ↗
6	Pan Head Screw - M5X12SP0805020	1	Enquiry ↗
7	Gauge Inspection CoverT0202DVE0240N	1	Enquiry ↗
8	O-Ring, Gauge Inspection CoverMJ01660001800	1	Enquiry ↗
9	Rubber Grommet Magneto Cover Wire RoutingT0209DVE0010N	1	Enquiry ↗
10	Shaft, Starter CounterT0205BUF0350N	1	Enquiry ↗
11	Washer 10.3200.8 (Starter Intrm Gear)T18010UF0920N	2	Enquiry ↗
12	Cover Starter Counter C334T0202DVG0090N	1	Enquiry ↗
13	O-Ring, Cover Gear Starter CounterSP040111500	1	Enquiry ↗
14	Bolt, Hex Flange Sh-M6X12SP0906041	1	Enquiry ↗
15	Assembly, Slipper Clutch With NrbT0205BVG0040N	1	Enquiry ↗
16	Gasket- Magneto CoverT0209DUF0220N	1	Enquiry ↗
17	Bolt, Hex Flange Sh - M6X70SP0906038	4	Enquiry ↗
18	Bolt Hex Fl M6X1X60X8.8SF0102647	3	Enquiry ↗
19	Bolt Hex Fl M6X1X35X8.8SF0102644	1	Enquiry ↗
20	Flange Head Bolt Sh M6X28SF0102034	1	Enquiry ↗
21	Cover LH Rear Half Y5 NVH BlackT0202DVG0550E	1	Enquiry ↗
22	Dowel Pin, Hollow (Ø8*12)MJ01760000500	6	Enquiry ↗
23	Bolt, Hex Flange Sh - M6X50SP0906035	2	Enquiry ↗
24	Flange Head Bolt Sh M6X28SF0102034	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 60, parts table page 61. View original parts table ↗
