Rotor Assembly
T1502AVG0030N
Enquiry ↗CATALOGUE DRAWING
This part is reference 2
Jawa 42 Bobber · Rev 17 · p. 13Original parts list ↗
Highlighted catalogue reference 2. The image shows the complete assembly.
Stator Assembly · T1502AVG0020N

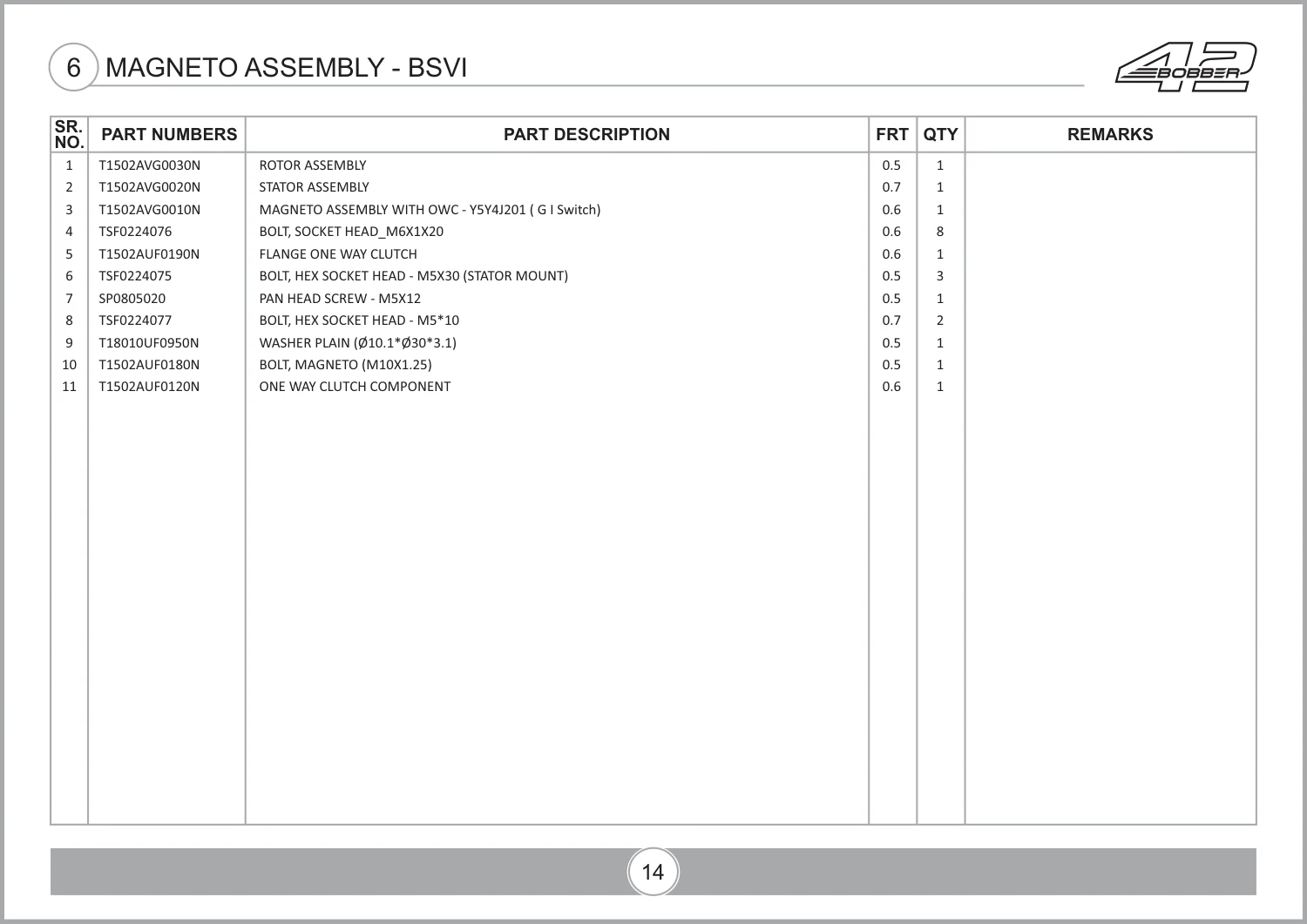

Listed in the supplied Jawa 42 Bobber catalogue, revision 17, under Magneto Assembly - BSVI. Match reference 2 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Other catalogue names for this part number
- Stator Assembly - 501
- Stator Assembly - Y501
Stator Assembly specifications & catalogue names
- Part number
- T1502AVG0020N
- Catalogue part name
- STATOR ASSEMBLY / STATOR ASSEMBLY - 501 / STATOR ASSEMBLY - Y501
- Also called
- Magnet coil
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Jawa 42 BobberStator AssemblyRev 17 · PDF p. 26 | Magneto Assembly - BSVIRef 2 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa 42 BobberStator AssemblyRev 17 · PDF p. 62 | Magneto Cover LH - BSVIRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi RoadsterStator Assembly - 501Rev 22 · PDF p. 28 | Magneto Assembly - Bs Vi [Fitted Till - Mzdj21C16P1B18810]Ref 2 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi RoadsterStator AssemblyRev 22 · PDF p. 62 | Magneto Cover LH - Bs Vi [Fitted Till - Mzdj21C16P1B18810]Ref 3 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi ScramblerStator Assembly - Y501Rev 19 · PDF p. 24 | Magneto Assembly - BSVIRef 2 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi ScramblerStator Assembly - Y501Rev 19 · PDF p. 52 | Magneto Cover LH - BSVIRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi ScramblerStator Assembly - Y501Rev 19 · PDF p. 54 | Magneto Cover LH - OBD IIRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi AdventureStator Assembly - Y501Rev 22 · PDF p. 27 | Magneto Assembly - Bs ViRef 2 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi AdventureStator Assembly - Y501Rev 22 · PDF p. 61 | Magneto Cover LH - Bs ViRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi AdventureStator Assembly - Y501Rev 22 · PDF p. 63 | Magneto Cover LH - OBD IIRef 3 · Assembly qty. 1 | Confirm exact bike variant. |
