Yezdi Adventure · ASSEMBLY 62 · REV 22
Swing Arm Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Adventure · Rev 22 · p. 153Original parts list ↗
Parts in this drawing
28 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Bush Inner LHT1101AKW0010N | 1 | |
| 2 | Chain CoverT13000Y50020N | 1 | |
| 3 | Screw Rdskt M6X1X12X8.8SF0212037 | 3 | |
| 4 | Spacer Swing ArmT1101AY50010N | 1 | |
| 5 | Swing Arm Kit For Spd-Without Dog Bone LinkT11010Y50080N FITTED TILL - XXXXX | 1 | |
| 6 | Swing Arm AssyT11010Y50140N FITTED FROM - XXXXX | 1 | |
| 7 | Bush Inner RHT1101AKW0020N | 1 | |
| 8 | Collar - Bush Inner RHT1101AKW0040N | 1 | |
| 9 | Self Lock Nut M16TSF0318003 | 1 | |
| 10 | Bush Outer RHT1101AKW0030N | 1 | |
| 11 | Swing Arm Axle M16T1101CKW0010N | 1 | |
| 12 | Washer 16MmTSF0400010 | 1 | |
| 13 | Circlip Int - Lug 30X1.2XphSF0602002 | 2 | |
| 14 | Tapping Screw M4X12TSF0214025 | 4 | |
| 15 | Cover Rear ArmT11010Y50050N FITTED TILL - XXXXX | 2 | |
| 16 | Cover Rear ArmT11010Y50120N FITTED FROM - XXXXX | 2 | |
| 17 | Bearing Ndl Rlr Dc 25X32X186801CAP00021N | 3 | |
| 18 | Body Rear Wheel AdjusterT11010Y50040N FITTED TILL - XXXXX | 2 | |
| 19 | Bracket Rear Wheel AdjusterT11010J10070N FITTED FROM - XXXXX | 2 | |
| 20 | Swing ArmT11010Y50030N FITTED TILL - XXXXX | 1 | |
| 21 | Kit Swing Arm With Wheel Adjuster & CoverT11010Y50150N FITTED FROM - XXXXX | 1 | |
| 22 | Caution Sticker Chain & TyreT14080Y50020N | 1 | |
| 23 | Bearing Dg Ball Sr 17X30X7SP010100119 | 1 | |
| 24 | Washer 4Mm94101-04700 | 2 | |
| 25 | Screw Special M8X1.25X75X8.8SF0200195 FITTED TILL - XXXXX | 2 | |
| 26 | Nut Hex M8X1.25X6.8X8SF0301245 FITTED FROM - XXXXX | 4 | |
| 27 | Brake Hose HolderT11010Y40050N | 1 | |
| 28 | Chain GuideT1103BY50010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

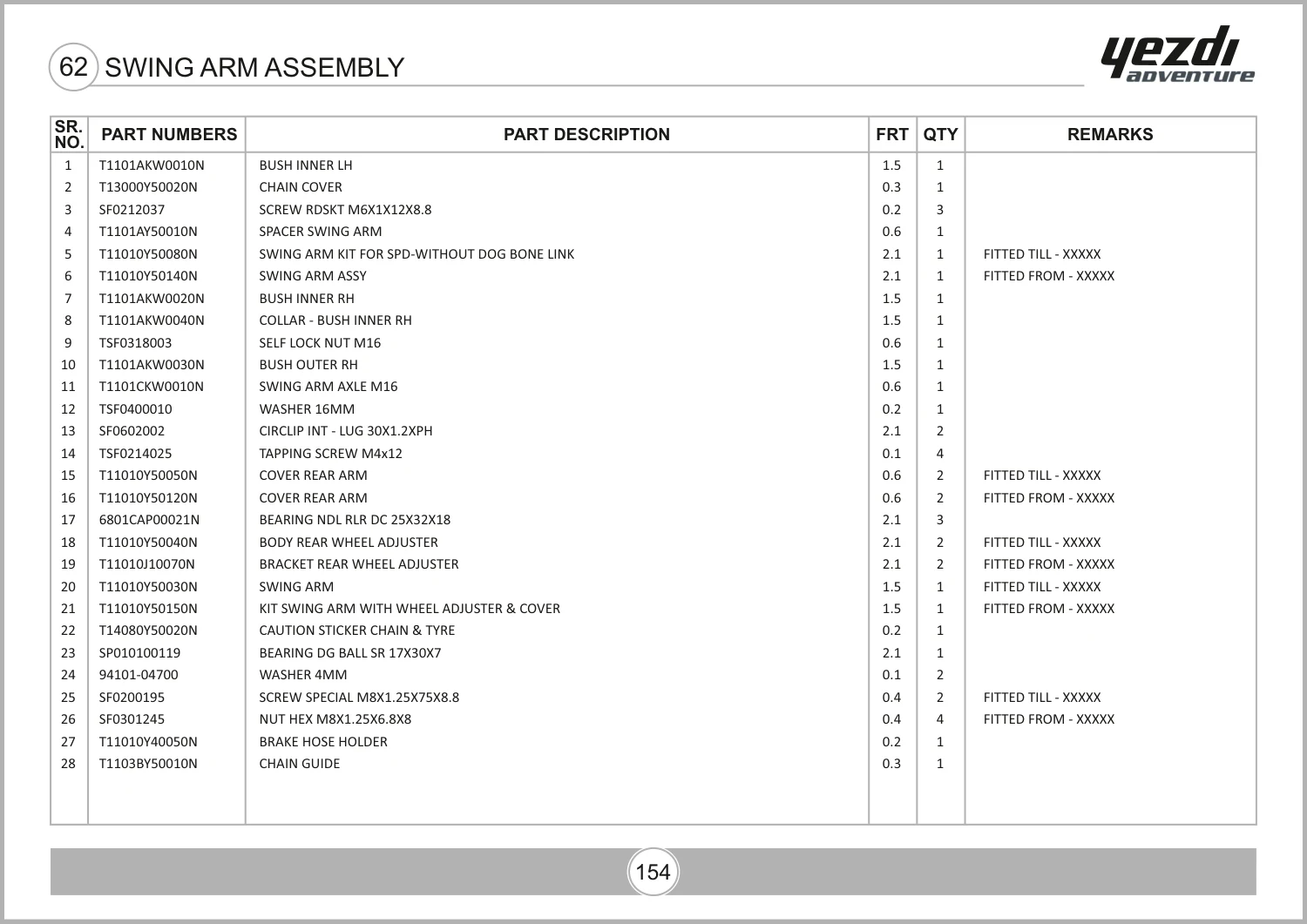

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 168, parts table page 169. View original parts table ↗
