Swing Arm Assembly
T11010Y40100N
Enquiry ↗CATALOGUE DRAWING
This part is reference 20
Yezdi Scrambler LWE · Rev 04 · p. 95Original parts list ↗
Highlighted catalogue reference 20. The image shows the complete assembly.
Brake Hose Holder · T11010Y40050N

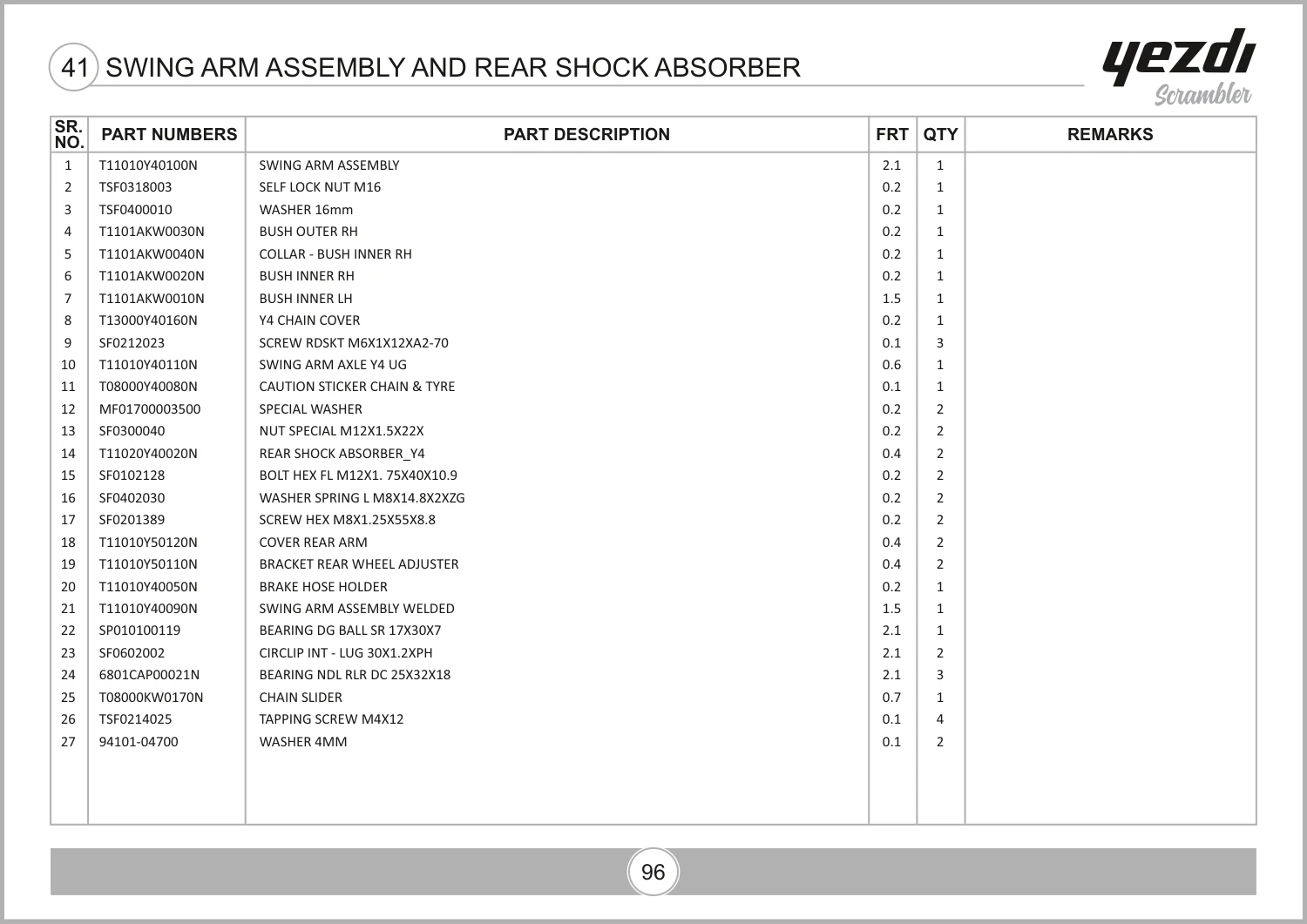

Listed in the supplied Yezdi Scrambler LWE catalogue, revision 04, under Swing Arm Assembly And Rear Shock Absorber. Match reference 20 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Brake Hose Holder specifications & catalogue names
- Part number
- T11010Y40050N
- Catalogue part name
- BRAKE HOSE HOLDER
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Yezdi Scrambler LWEBrake Hose HolderRev 04 · PDF p. 107 | Swing Arm Assembly And Rear Shock AbsorberRef 20 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi ScramblerBrake Hose HolderRev 19 · PDF p. 122 | Swing Arm Assembly And Rear Shock AbsorberRef 24 · Assembly qty. 1 | Confirm exact bike variant. |
| Yezdi AdventureBrake Hose HolderRev 22 · PDF p. 169 | Swing Arm AssemblyRef 27 · Assembly qty. 1 | Confirm exact bike variant. |
