Yezdi Adventure · ASSEMBLY 61 · REV 22
Rear Shock Absorber
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Adventure · Rev 22 · p. 151Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Rear Shock AbsorberT11020Y50050N | 1 | |
| 2 | Rocker Arm Assy Y5T11020Y50030N | 1 | |
| 3 | Rocker Arm, RR Shox Y5T11020Y50020N | 1 | |
| 4 | Dog-Bone Link AssyT11020Y50040N | 2 | |
| 5 | Dog-Bone Link Y5T11020Y50010N | 2 | |
| 6 | Needle Roller Bearing (18X24X16)T11020Y50060N | 6 | |
| 7 | Collar Inner Dog-Bone Link 25T11020Y50100N | 2 | |
| 8 | Collar Inner 52T11020Y50070N | 1 | |
| 9 | Collar Inner 84T11020Y50080N | 1 | |
| 10 | Dust Seal (18X24X4)T11020Y50090N | 8 | |
| 11 | Bolt Hex Fl M10X1.25X60X8.8SF0102631 | 1 | |
| 12 | Axle, Rocker Arm-Dog BoneT11020Y50110N | 1 | |
| 13 | Bolt Hex Fl M10X1.25X50X8.8SF0102630 | 2 | |
| 14 | Bolt Hex Fl M10X1.25X76X8.8SF0102652 | 2 | |
| 15 | Flange U Nut M10X1.25TSF0318009 | 6 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

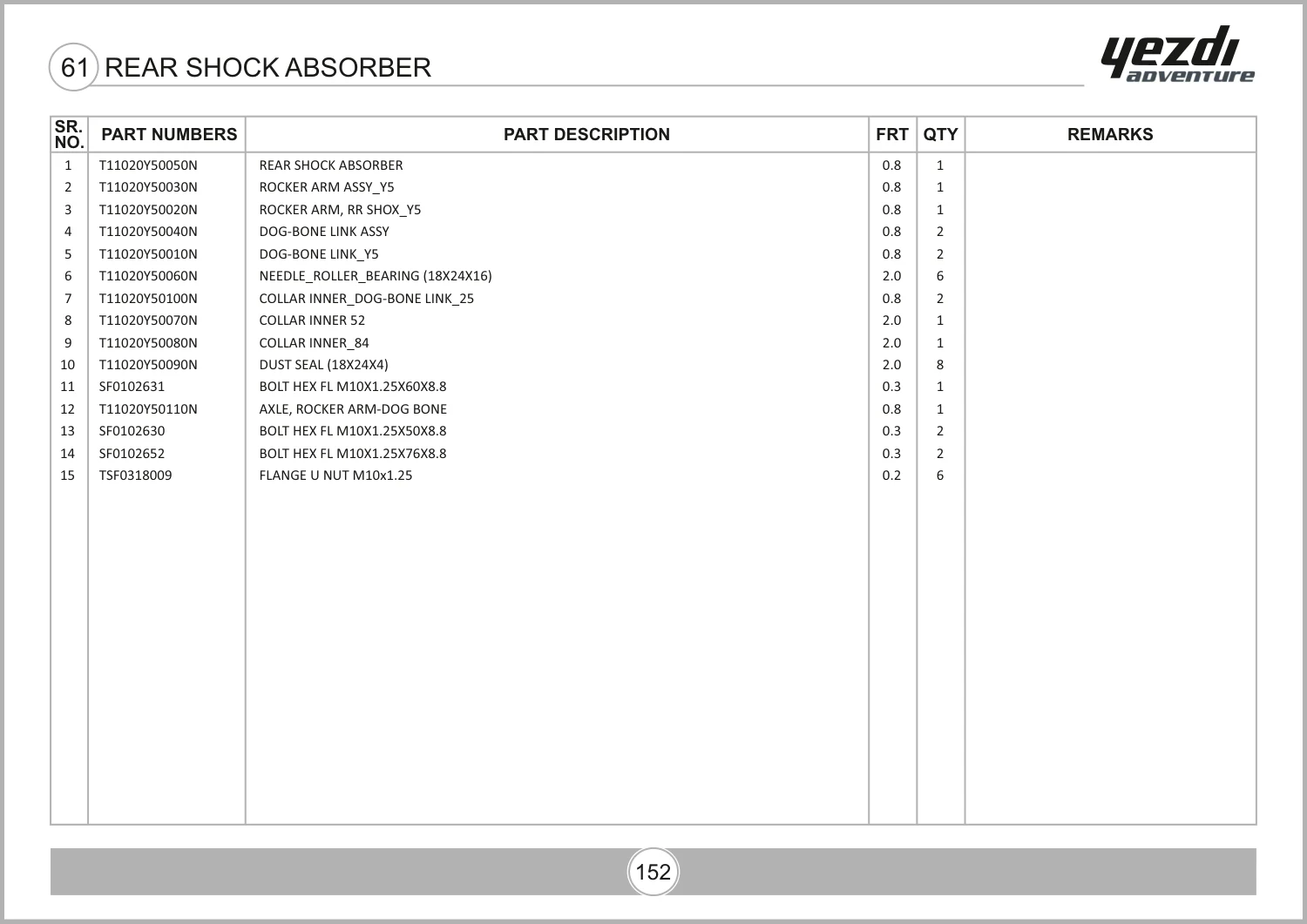

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 166, parts table page 167. View original parts table ↗
