Yezdi Adventure · ASSEMBLY 59 · REV 22

Engine Mountings & Side Stand Assembly- Central Exhaust & Twin Headlamp

Select a diagram reference or a row below to enquire about the exact part.

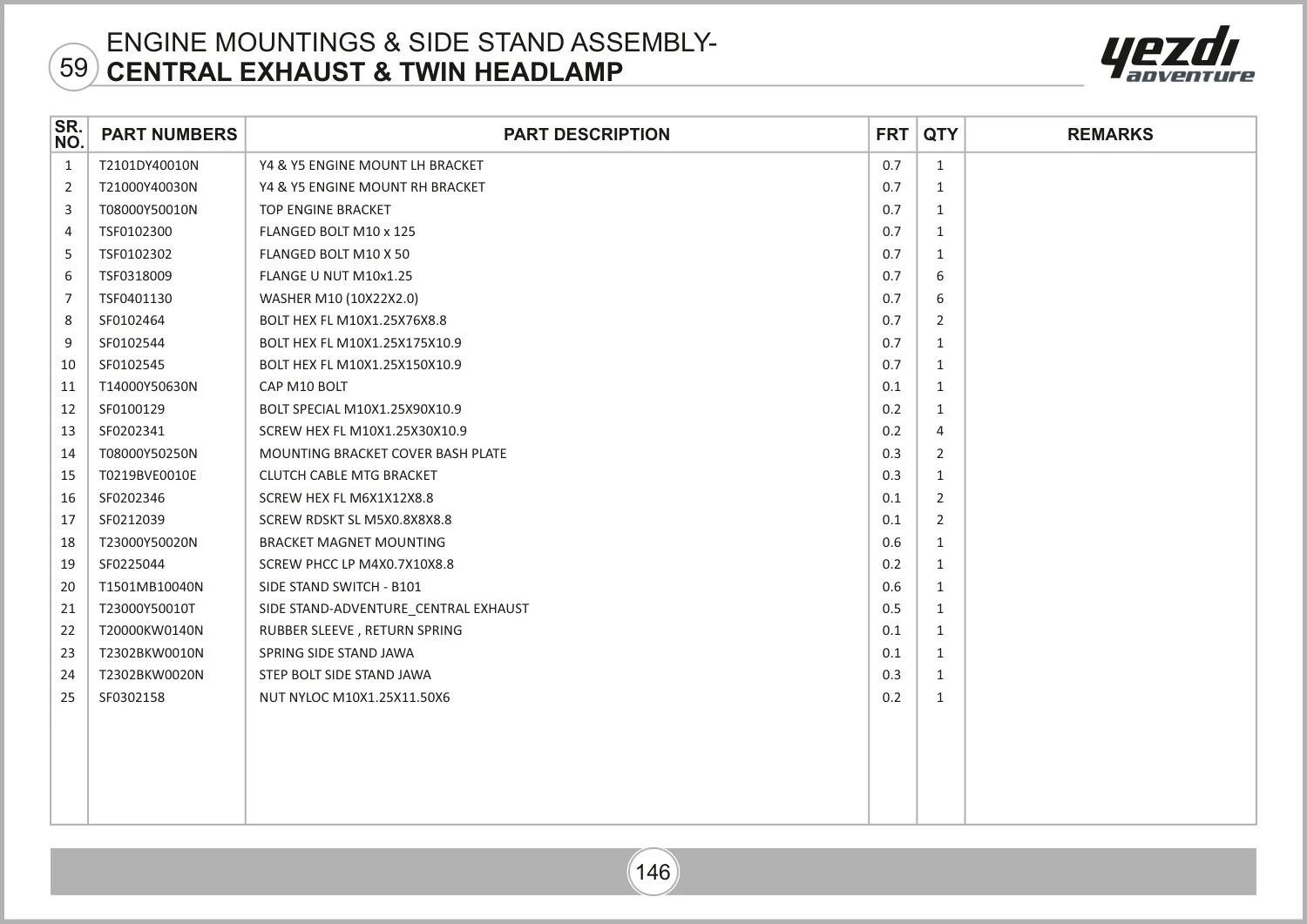

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Adventure · Rev 22 · p. 145Original parts list ↗

25 entries

Ref.	Part name / number	Assembly qty.	Action
1	Y4 & Y5 Engine Mount LH BracketT2101DY40010N	1	Enquiry ↗
2	Y4 & Y5 Engine Mount RH BracketT21000Y40030N	1	Enquiry ↗
3	Top Engine BracketT08000Y50010N	1	Enquiry ↗
4	Flanged Bolt M10 X 125TSF0102300	1	Enquiry ↗
5	Flanged Bolt M10 X 50TSF0102302	1	Enquiry ↗
6	Flange U Nut M10X1.25TSF0318009	6	Enquiry ↗
7	Washer M10 (10X22X2.0)TSF0401130	6	Enquiry ↗
8	Bolt Hex Fl M10X1.25X76X8.8SF0102464	2	Enquiry ↗
9	Bolt Hex Fl M10X1.25X175X10.9SF0102544	1	Enquiry ↗
10	Bolt Hex Fl M10X1.25X150X10.9SF0102545	1	Enquiry ↗
11	Cap M10 BoltT14000Y50630N	1	Enquiry ↗
12	Bolt Special M10X1.25X90X10.9SF0100129	1	Enquiry ↗
13	Screw Hex Fl M10X1.25X30X10.9SF0202341	4	Enquiry ↗
14	Mounting Bracket Cover Bash PlateT08000Y50250N	2	Enquiry ↗
15	Clutch Cable Mtg BracketT0219BVE0010E	1	Enquiry ↗
16	Screw Hex Fl M6X1X12X8.8SF0202346	2	Enquiry ↗
17	Screw Rdskt Sl M5X0.8X8X8.8SF0212039	2	Enquiry ↗
18	Bracket Magnet MountingT23000Y50020N	1	Enquiry ↗
19	Screw Phcc Lp M4X0.7X10X8.8SF0225044	1	Enquiry ↗
20	Side Stand Switch - B101T1501MB10040N	1	Enquiry ↗
21	Side Stand-Adventure Central ExhaustT23000Y50010T	1	Enquiry ↗
22	Rubber Sleeve , Return SpringT20000KW0140N	1	Enquiry ↗
23	Spring Side Stand JawaT2302BKW0010N	1	Enquiry ↗
24	Step Bolt Side Stand JawaT2302BKW0020N	1	Enquiry ↗
25	Nut Nyloc M10X1.25X11.50X6SF0302158	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 160, parts table page 161. View original parts table ↗
