Yezdi Adventure · ASSEMBLY 30 · REV 22
Fuel Tank Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Adventure · Rev 22 · p. 77Original parts list ↗
Parts in this drawing
10 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 14 | Fuel Tube OutletT10000Y50050N | 1 | |
| 14.1 | Fuel Tube Outlet OBD-II Phase-2 (E20)T10000Y50240N | 1 | |
| 15 | Fuel Tube InletT10000Y50060N | 1 | |
| 15.1 | Fuel Tube Inlet OBD-II Phase-2 (E20)T10000Y50250N | 1 | |
| 16 | Support FilterMH00900000800 | 1 | |
| 17 | Fuel FilterT10000KW0340N | 1 | |
| 18 | Quick Fuel Connector 2T10050KE0050N | 1 | |
| 19 | Spring Band Clamp Dia 11 Mm (Black)T10050KE0100N | 1 | |
| 20 | Spring Band Clamp Dia 14 Mm (Black)T10050KE0030N | 3 | |
| 21 | Y5 Fuel Tank ProtectorT10000Y50160N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

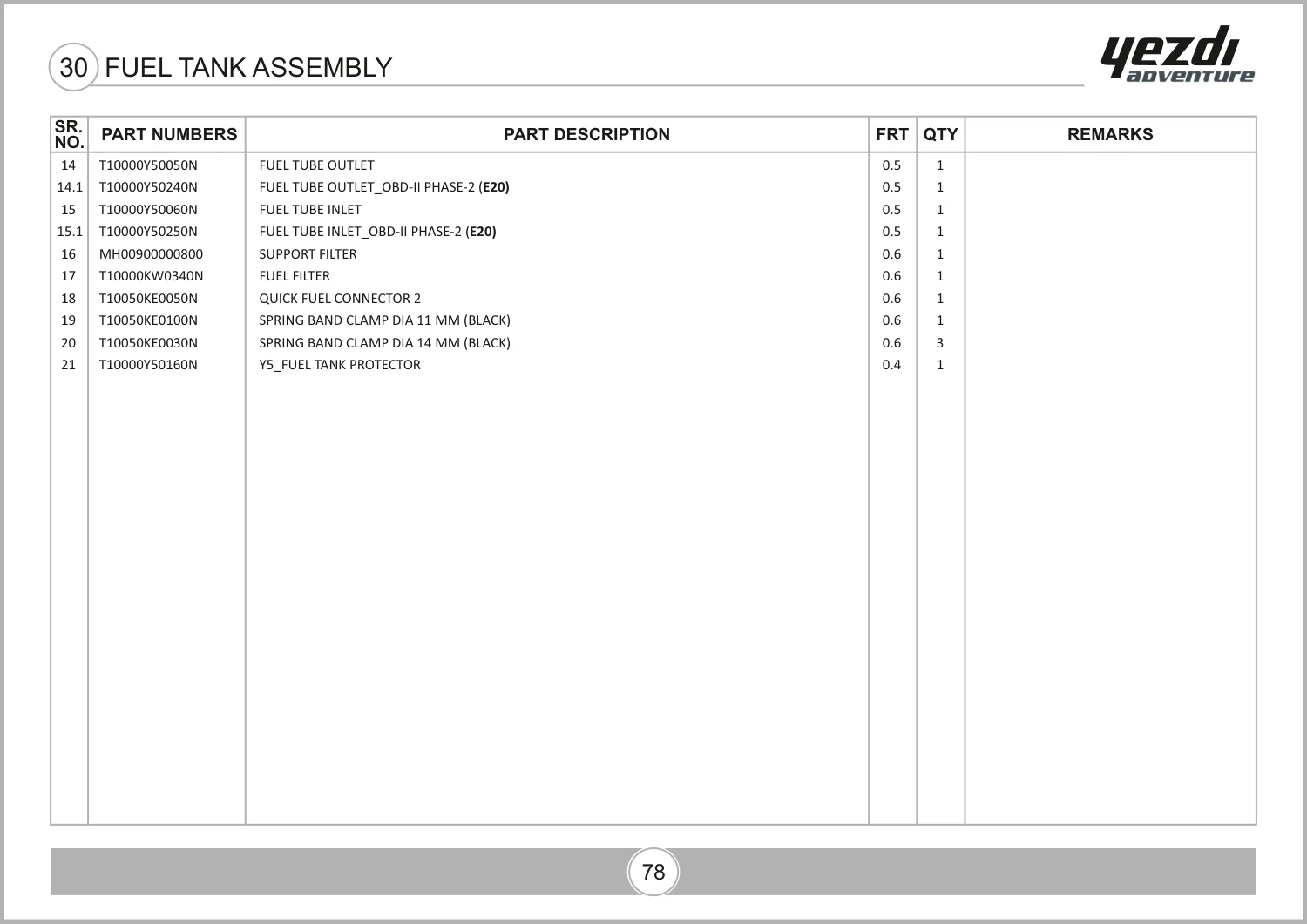

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 92, parts table page 93. View original parts table ↗
