Yezdi Adventure · ASSEMBLY 26 · REV 22

Rider Foot Rest Assembly / Rear Brake Pedal / Gear Shift Lever

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Yezdi Adventure Rider Foot Rest Assembly / Rear Brake Pedal / Gear Shift Lever exploded assembly diagram, catalogue page 65

Yezdi Adventure · Rev 22 · p. 65Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Holder Rider Footrest LHT2201AY50010N	1	Enquiry ↗
1.1	Holder Rider Footrest LH Raven TextureT2201AY50010T CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
2	Rider Footpeg LHT2201AY50050N	1	Enquiry ↗
3	Rubber Rider FootpegT2201AY50070N	1	Enquiry ↗
4	Bracket Footrest GripT2201BB10070N	2	Enquiry ↗
5	Bolt Hex Fl M8X1.25X35X10.9SF0102642	2	Enquiry ↗
6	Spring Torsion Rider FootrestT2201AKW0130E	2	Enquiry ↗
7	Pivot Rider FootrestT2201BY50080N	2	Enquiry ↗
8	Seeger Diameter 5 Uni 7434MH01890000800	2	Enquiry ↗
9	Bolt Hex Fl M8X1.25X30X8.8SF0102183	2	Enquiry ↗
10	Button Head Socket Screw M6X16TSF0212011	2	Enquiry ↗
11	Holder Rider Footrest RHT2201AY50030N	1	Enquiry ↗
11.1	Holder Rider Footrest RH Raven TextureT2201AY50030T CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
12	Rider Footpeg RHT2201AY50060N	1	Enquiry ↗
13	Rubber, Rider FootpegT2201AY50070N	1	Enquiry ↗
14	Bolt Hex Fl M8X1.25X35X10.9SF0102642	2	Enquiry ↗
15	Rear Brake Pedal Sub Assembly Y5T2001CY50030T	1	Enquiry ↗
16	Pin Pivot, Rear Brake Pedal LHT20010Y50010N	1	Enquiry ↗
17	Torsion Return Spring, Rear Brake Pedal Y5T20000Y50010N	1	Enquiry ↗
18	Holder Rider Footrest RH Mounting PlateT2201AY50080N	1	Enquiry ↗
18.1	Holder Rider Footrest RH Mounting Plate Raven TextureT2201AY50080T CENTRAL EXHAUST & TWIN HEADLAMP	1	Enquiry ↗
19	Screw Socket M8X1.25X30X10.9SF0224176	2	Enquiry ↗
20	Foot Peg, Rear Brake Pedal Y5T2001CY50020N	1	Enquiry ↗
21	Rider Foot Rest Assy LHT2201AY50020N	1	Enquiry ↗
22	Spring Washer For M8SP3908001	4	Enquiry ↗
23	Screw Hex Fl M6X1X20X8.8SF0202347	1	Enquiry ↗
24	Kit Rider Footrest Assembly RHT2201AY50100N	1	Enquiry ↗
25	Gear Shift Lever CompleteT0215DY50010N	1	Enquiry ↗
26	Grip Gear LeverMH00590000400	1	Enquiry ↗
27	Gear Shift Lever Complete (Black)T0215DKW0020E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

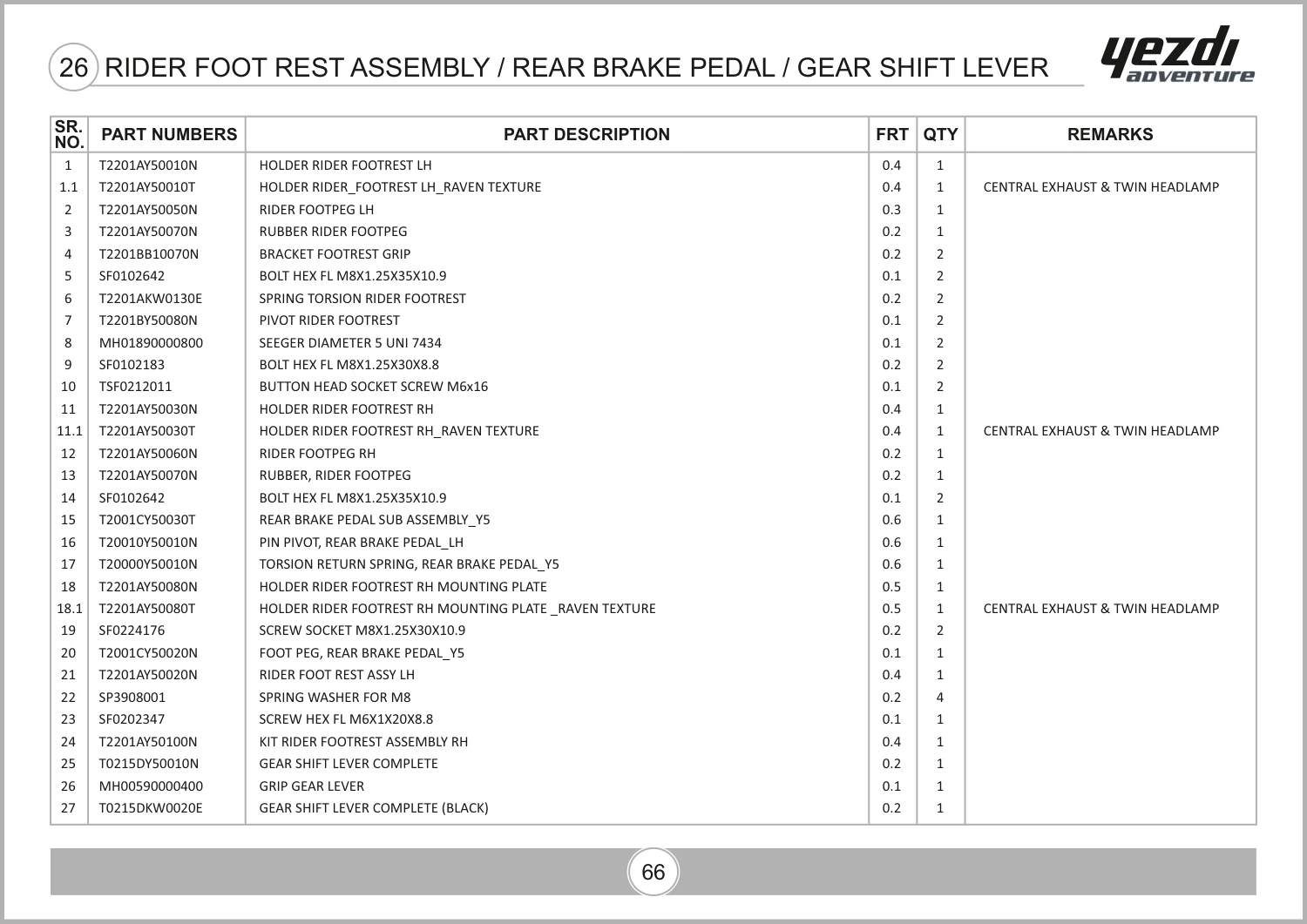

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 80, parts table page 81. View original parts table ↗
