Yezdi Adventure · ASSEMBLY 39 · REV 22
Rear Fender Assembly & Mountings (3/3)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Yezdi Adventure · Rev 22 · p. 99Original parts list ↗
Parts in this drawing
6 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 27 | Spring Washer B10 Is:3063 Twin Headlamp93910007 | 2 | |
| 28 | Nut Hex M10X1.25X5X8Xzn Twin HeadlampSF0301023 | 2 | |
| 29 | Cover Front Tail Lamp Twin HeadlampT13070Y50150N | 1 | |
| 30 | Nut Nyloc M5X0.8X6.8X6 Twin HeadlampSF0302157 | 2 | |
| 31 | Washer M5 Twin HeadlampTSF0401123 | 2 | |
| 32 | Number Plate Lamp - Y501 Ug Twin HeadlampT1501TY50020N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

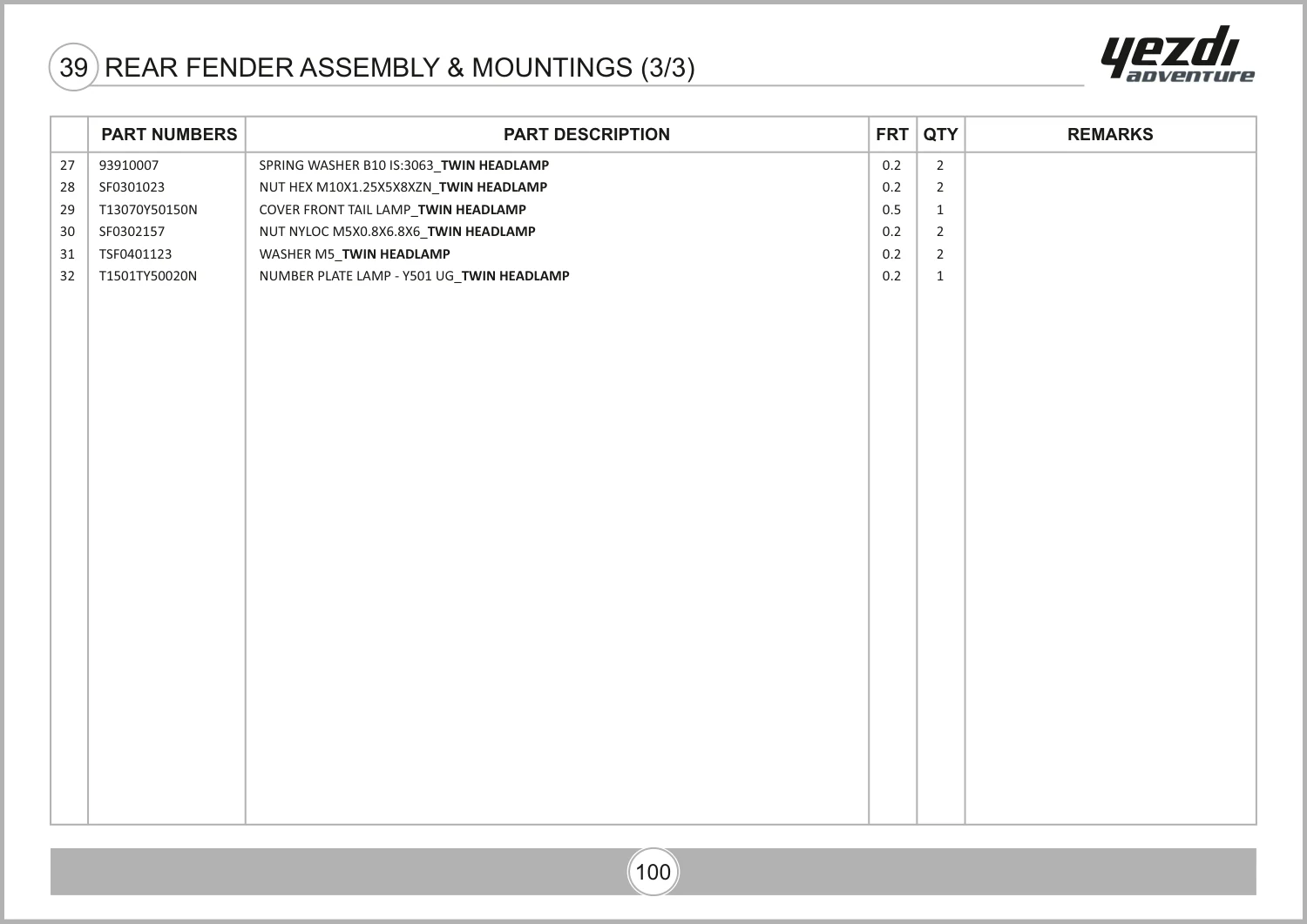

Source: PARTS CATALOUGE - YEZDI_ADVENTURE_REV_22.pdf · PDF diagram page 114, parts table page 115. View original parts table ↗
