Jawa 42 Bobber · ASSEMBLY 30 · REV 17
Rear Fender Assembly (1/2)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 85Original parts list ↗
Parts in this drawing
20 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Rear Fender - Black GlossT13070J20140W | 1 | |
| 1.1 | Rear Fender - SilverT13070J20140F BSA-SILVER | 1 | |
| 1.2 | Rear Fender - BlackT13070J20140L ROADSTER GREY | 1 | |
| 2 | Rear Number Plate BracketT13070J30150N | 1 | |
| 3 | Button Head Socket Screw M6X16TSF0212011 | 2 | |
| 4 | Nyloc Nut M5SF0302015 | 1 | |
| 4.1 | Nut Nyloc M5X0.8X6.8X6 Bobber Ug 2.2SF0302157 | 1 | |
| 5 | Reflex Reflector Mtg Bkt Black GlossyT08020KW0030W | 1 | |
| 6 | License Lamp AssemblyT1501TKW0010N | 1 | |
| 7 | Pad (Main Stand)MF01240000400 | 1 | |
| 8 | Flange Bolt M6X18TSF0102271 | 6 | |
| 9 | Spacer H=6 For M6MH01790003300 | 2 | |
| 10 | Mud Flap Rear FenderT13070J30140N | 1 | |
| 11 | Nut Clip 6 Mm90305-GK8-0001 | 4 | |
| 12 | Rear Indicator HolderT13070J30130N | 1 | |
| 13 | Screw Rdskt M6X1X16SF0212041 | 4 | |
| 13.1 | Screw Rdskt M6X1X16X8.8 Bobber Ug 2.2SF0212048 | 4 | |
| 13.2 | Screw Rdskt M6X1X20X8.8 OBD-II Phase-2SF0212050 | 4 | |
| 14 | Rear Reflex ReflectorT1501FKW0060N | 1 | |
| 15 | Cover Rear Number Plate Bkt Bobber UgT13030KW0010N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

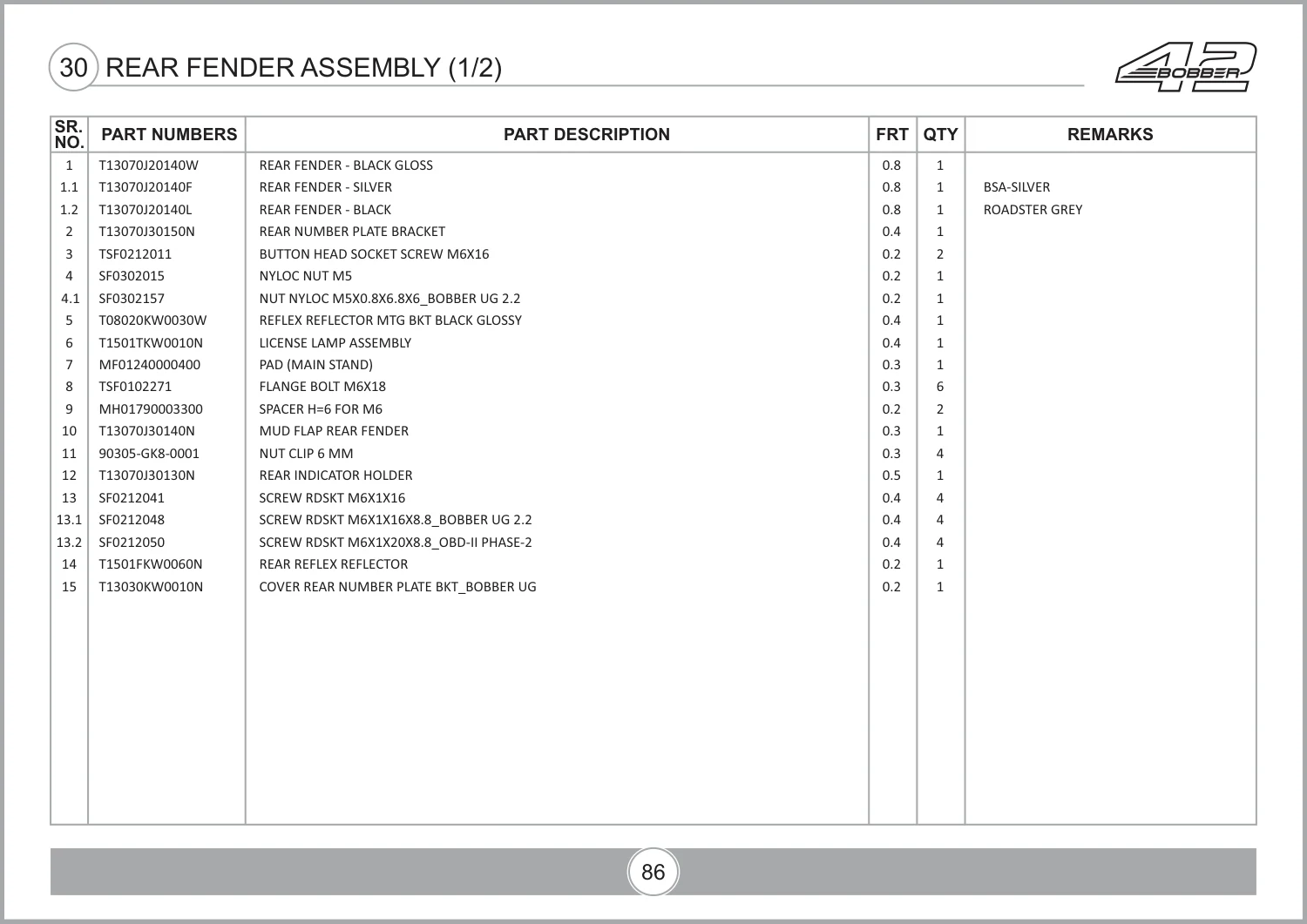

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 97, parts table page 98. View original parts table ↗
