Engine Mounting System & Gear Shift Lever Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber Engine Mounting System & Gear Shift Lever Assembly exploded assembly diagram, catalogue page 125

Jawa 42 Bobber · Rev 17 · p. 125Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Fr Engine Bracket LH Black GlossyT2101DKW0010W	1	Enquiry ↗
2	Fr Engine Bracket RH Black GlossyT2101DKW0020W	1	Enquiry ↗
3	Flanged Bolt M10 X 90TSF0102299	1	Enquiry ↗
4	Bolt Special M101.2590*10.9SF0100129	1	Enquiry ↗
5	Flanged Bolt M10 X 125TSF0102300	2	Enquiry ↗
6	Washer M10 (110222.0)TSF0401130	5	Enquiry ↗
7	Flange U Nut M10X1.25TSF0318009	6	Enquiry ↗
8	Bolt Hex Fl M10X1.25X175X10.9SF0102544	1	Enquiry ↗
9	Bolt Hex Fl M10X1.25X150X10.9SF0102545	1	Enquiry ↗
10	Top Engine Bkt LH Black GlossyT2101DKW0030W	1	Enquiry ↗
11	Flange Bolt M10X25SF0102038	2	Enquiry ↗
11.1	Screw Hex Fl M10X1 5X25X8 8 Bobber UgSF0202258	2	Enquiry ↗
12	Flanged Bolt M10 X 50TSF0102302	1	Enquiry ↗
13	Gear Shift Lever Comp AsslyT0215DJ30070N	1	Enquiry ↗
14	Stopper Hook Gear Shift LeverT0215DJ30060N	1	Enquiry ↗
15	Button Head Socket Screw M6X16TSF0212011	1	Enquiry ↗
16	Grip Gear LeverMH00590000400	1	Enquiry ↗
17	M6 Nyloc Nut (Black)TSF0318007	1	Enquiry ↗
18	Pin Pivot, Rear Brake PedalT20010KW0100N	1	Enquiry ↗
18.1	Pin Pivot, Rear Brake Pedal Bobber Ug 2.2T20010KW0150N	1	Enquiry ↗
19	Flange Bolt M6 X 20 (White)SP0906029	1	Enquiry ↗
20	Cap M10 BoltT14000Y50630N	1	Enquiry ↗
21	Gear Shift Lever AssemblyT0215DJ30040N	1	Enquiry ↗
22	Gear Shift Guide (Imcr)T0215DJ30020N	1	Enquiry ↗
23	Gear Shift Lever (Imcr)T21000J20010N	1	Enquiry ↗
24	Tie Rod (Imcr)T21000J20020N	1	Enquiry ↗
25	Washer 6.4X12.4X1 (Imcr)T0208AVF0140N	2	Enquiry ↗
26	A02-Split Pin 2 X 16 Is:549 (Imcr)MF01920001500	2	Enquiry ↗
27	Grip Gear Shift Lever (Imcr)T21000B10050N	1	Enquiry ↗
28	Dust Cover (Imcr)T0215DJ20010N	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

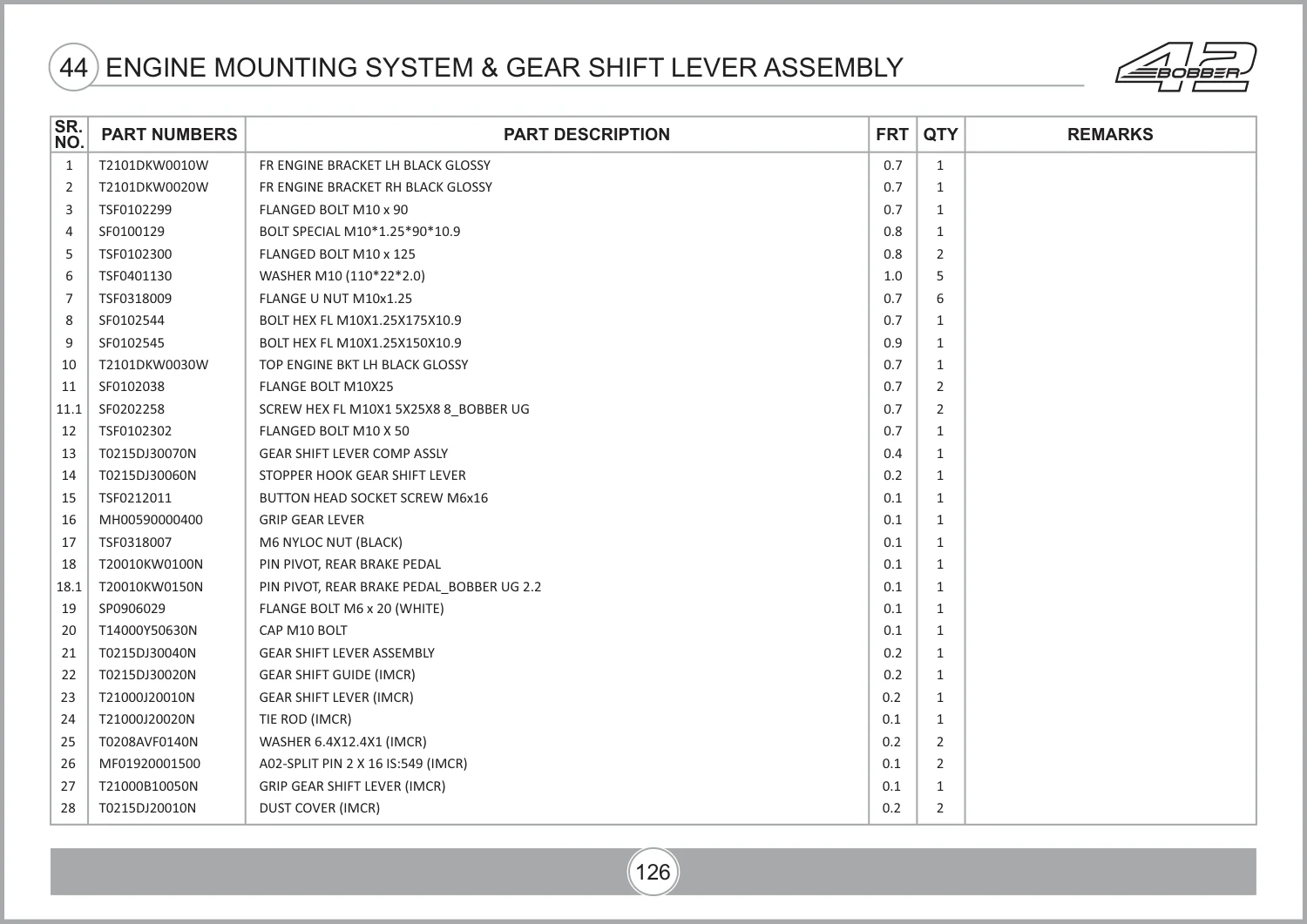

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 137, parts table page 138. View original parts table ↗
