Jawa 42 Bobber · ASSEMBLY 32 · REV 17

Rear Wheel Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber Rear Wheel Assembly exploded assembly diagram, catalogue page 89

Jawa 42 Bobber · Rev 17 · p. 89Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Kit Drive Chain SprocketT0215GJ30010N	1	Enquiry ↗
2	Chain, Final Drive - 114 LinksT14080J30010N	1	Enquiry ↗
3	Rim Assembly, RearT12010J30010N	1	Enquiry ↗
4	Rear Spoke Wheel (4.25X17)T1201KB10010N	1	Enquiry ↗
5	Inner Spoke, RearT1201KJ30010N	18	Enquiry ↗
6	Outer Spoke, RearT1201KJ30020N	18	Enquiry ↗
7	Spoke Nipple (Yellow)T0601JKW0030D	36	Enquiry ↗
8	Rear Wheel Hub For Disc, MachiningT1201HKW0020E	1	Enquiry ↗
9	Spacer Assy Inner, Rear WheelT1201CKW0050N	1	Enquiry ↗
10	Self Lock Nut M16TSF0318003	1	Enquiry ↗
11	Wheel Bearing 6203 (17X40X12)T0601DKW0021N	2	Enquiry ↗
12	Front Dust Seal (A22X40X7)T0601EKW0021N	1	Enquiry ↗
13	Coupler For Rear Hub & Disc, MachiningT1201HKW0030E	1	Enquiry ↗
14	Socket Head Screw M8X28SP0308023	5	Enquiry ↗
15	Rear Disc (RH, D=240)T2501GKW0010N	1	Enquiry ↗
16	Toner Wheel FrontT0602LKE0010N	1	Enquiry ↗
17	Screw Special M8X1.25X28Xa2-70SF0200097	5	Enquiry ↗
18	Spacer Rear Wheel (RH Side) Rear DiscT1201CKW0060N	1	Enquiry ↗
19	Cush DriveMH01270000500	4	Enquiry ↗
20	Cush Drive Housing, MachinedT12010KW0040E	1	Enquiry ↗
21	Cush Drive Housing Bearing 6005(25X47X12)T1201DKW0031N	1	Enquiry ↗
22	Chain Sprocket (Rear 45T)T1201MKW0010N	1	Enquiry ↗
23	Rear LH Dust Seal A31X47X7T1201EKW0021N	1	Enquiry ↗
24	Self-Tapping Nut For M8 (White)MH01680001700	5	Enquiry ↗
25	Spacer Cush Drive Housing RHT1201CKW0080N	1	Enquiry ↗
26	Spacer Cush Drive Housing LHT1201CKW0070N	1	Enquiry ↗
27	Spacer Rear Wheel (LH Side)T1201CKW0020N	1	Enquiry ↗
28	Bolt Special M16X1.5X305X10.9SF0100083	1	Enquiry ↗
29	Chain Link KitT14000KE0180N	1	Enquiry ↗
30	Socket Head Screw M8X28 (White)SP0308023	5	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

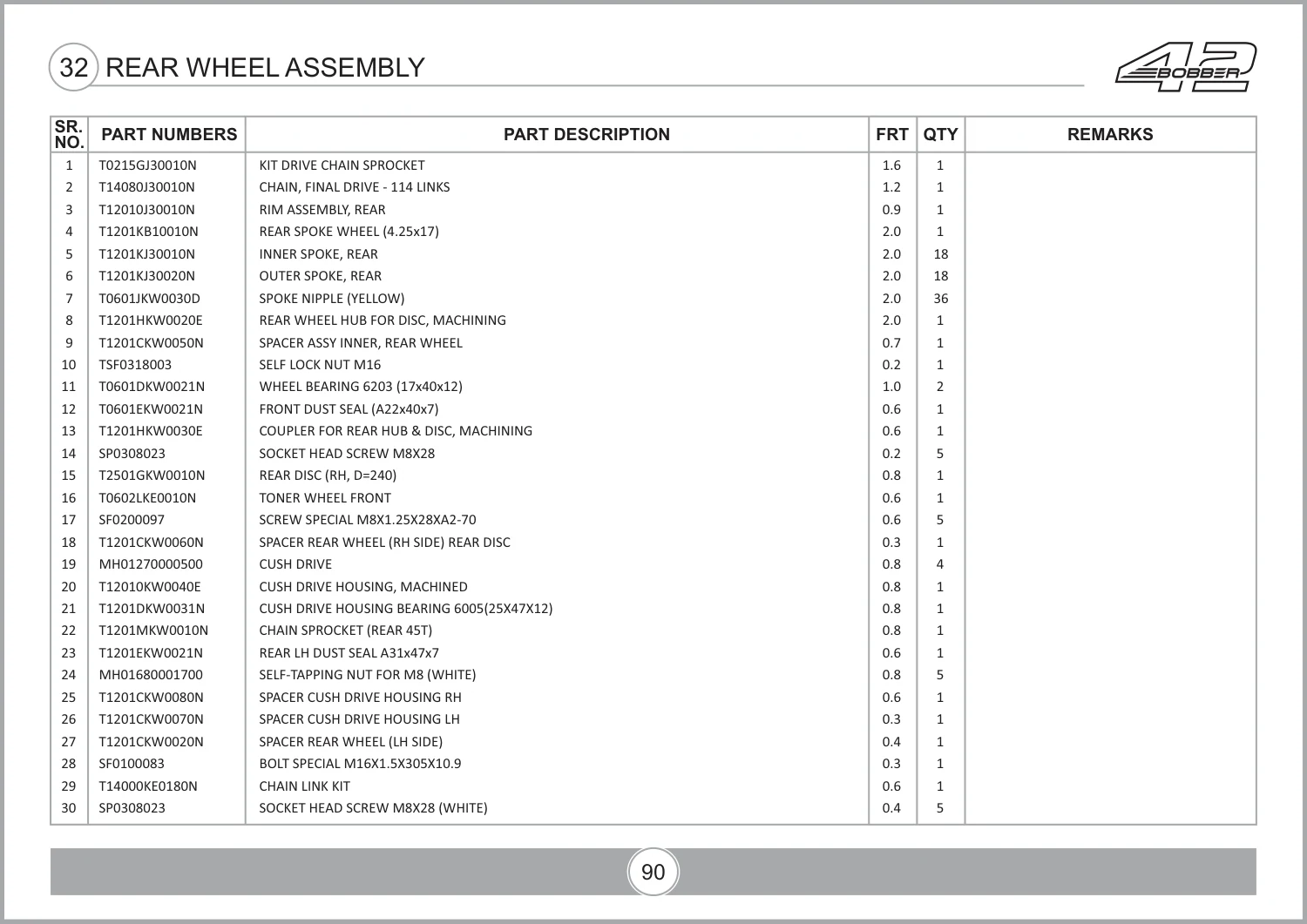

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 101, parts table page 102. View original parts table ↗
