Jawa 42 Bobber · ASSEMBLY 46 · REV 17

Swing Arm Assembly / Rear Shock Absorber / Side Stand Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber · Rev 17 · p. 133Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Swingarm Sub-AssyT11010J30040N	1	Enquiry ↗
2	Bush Inner LHT1101AKW0010N	1	Enquiry ↗
3	Bush Inner RHT1101AKW0020N	1	Enquiry ↗
4	Collar - Bush Inner RHT1101AKW0040N	1	Enquiry ↗
5	Bush Outer RHT1101AKW0030N	1	Enquiry ↗
6	Swing Arm Axle M16T1101CKW0010N	1	Enquiry ↗
7	Self Lock Nut M16TSF0318003	1	Enquiry ↗
8	Chain CoverT1103AJ30010E	1	Enquiry ↗
9	Screw Rdskt M6X1X12Xa2-70SF0212023	2	Enquiry ↗
9.1	Screw Rdskt M6X1X12X8.8 Bobber UgSF0212037	2	Enquiry ↗
10	Swing Arm Chain Adjuster LHT08000KW0610N	1	Enquiry ↗
11	Swing Arm Chain Adjuster RHT08000KW0620N	1	Enquiry ↗
12	Rear Shock AbsorberT11020J30010N	1	Enquiry ↗
13	Flanged Bolt M10 X 50TSF0102302	1	Enquiry ↗
14	Flange Bolt M10 X 75TSF0102301	1	Enquiry ↗
15	Flange U Nut M10X1.25TSF0318009	2	Enquiry ↗
16	Stay Exhaust Mtg LHT2201BJ30010N	1	Enquiry ↗
17	Swing ArmT11010J30010W	1	Enquiry ↗
18	Circlip Int - Lug 30X1.2XphSF0602002	2	Enquiry ↗
19	Bearing Dg Ball Sr 17X30X7SP010100119	1	Enquiry ↗
20	Needle Roller Bearing6801CAP00021N	3	Enquiry ↗
21	Washer 4Mm94101-04700	2	Enquiry ↗
22	Tapping Screw M4X12TSF0214025	2	Enquiry ↗
23	Nut Hex M8X1.25X6.8X8SF0301245	2	Enquiry ↗
24	Screw Hex M8X1.25X55X8.8SF0201389	2	Enquiry ↗
25	Chain SliderT1103BJ30010N	1	Enquiry ↗
26	Caution StickerT13200J30010N	1	Enquiry ↗
27	Cable Tie Clamp AraymondT25010KW0034N	6	Enquiry ↗
28	Cable Strap 200Mm HellermannT1501AKE2052E	6	Enquiry ↗
29	Side Stand Black GlossyT2301AJ30010W	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

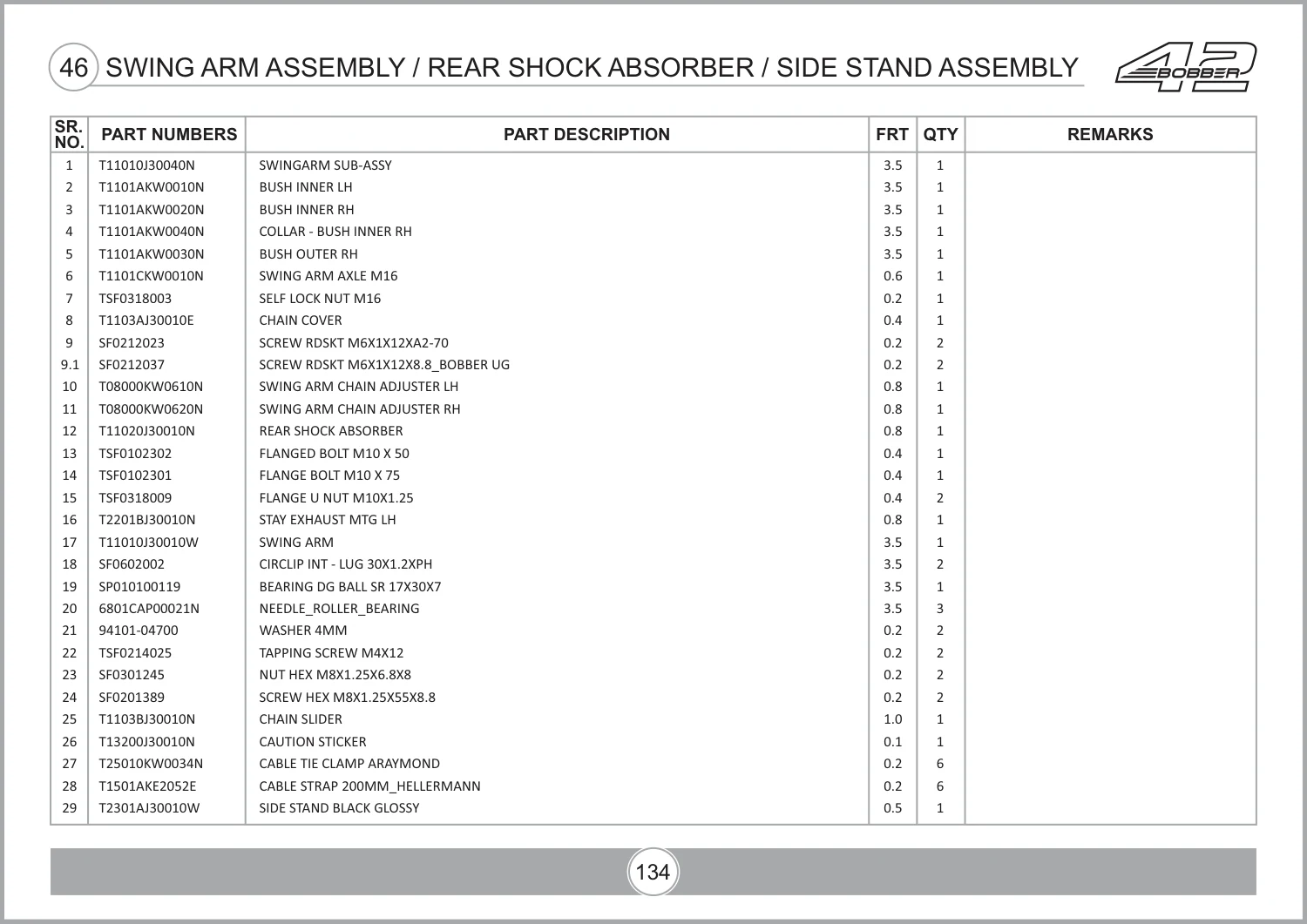

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 145, parts table page 146. View original parts table ↗
