Jawa 42 Bobber · ASSEMBLY 46 · REV 17
Swing Arm Assembly / Rear Shock Absorber / Side Stand Assembly
Select a diagram reference or a row below to enquire about the exact part.

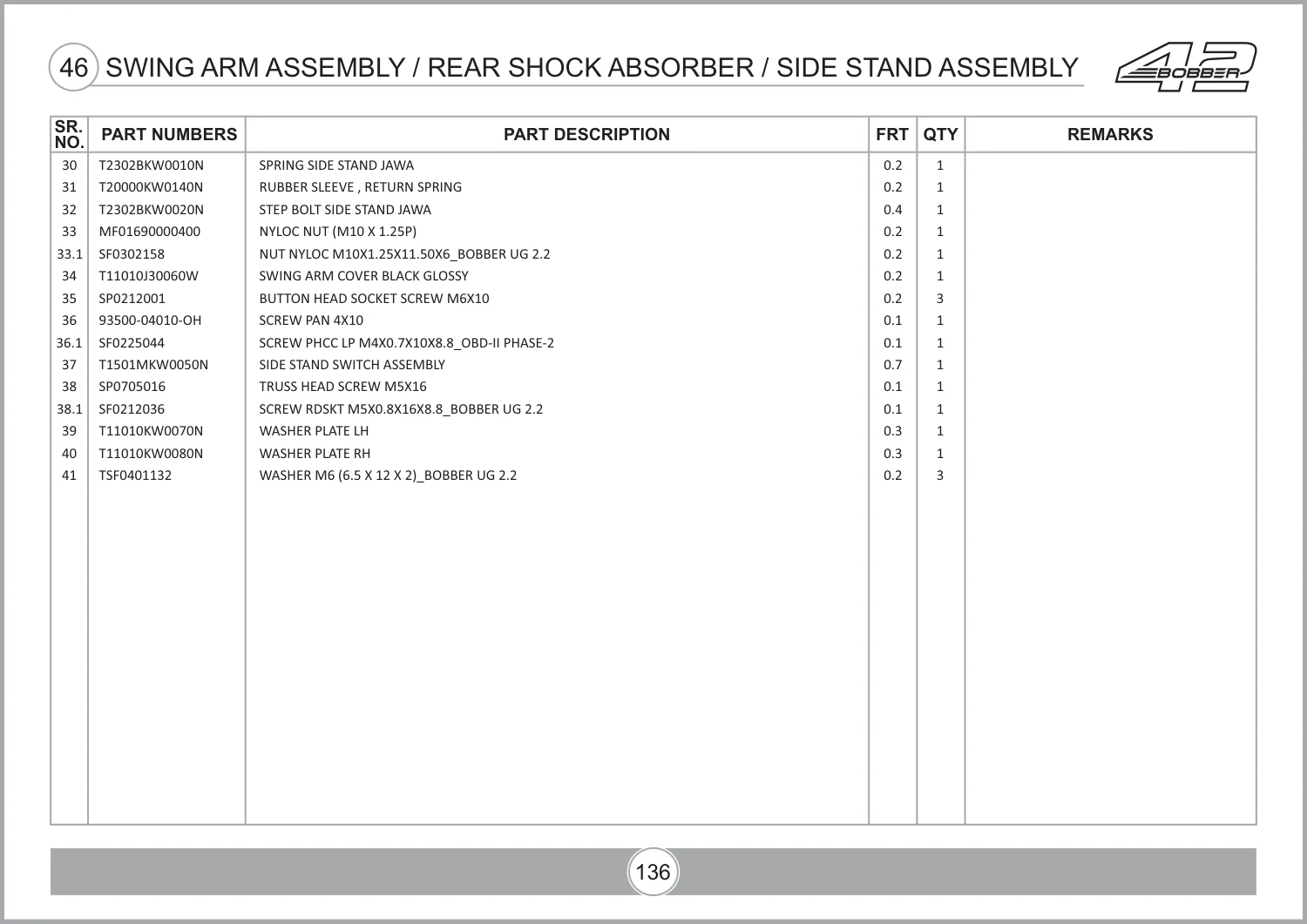

CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 135Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 30 | Spring Side Stand JawaT2302BKW0010N | 1 | |
| 31 | Rubber Sleeve , Return SpringT20000KW0140N | 1 | |
| 32 | Step Bolt Side Stand JawaT2302BKW0020N | 1 | |
| 33 | Nyloc Nut (M10 X 1.25P)MF01690000400 | 1 | |
| 33.1 | Nut Nyloc M10X1.25X11.50X6 Bobber Ug 2.2SF0302158 | 1 | |
| 34 | Swing Arm Cover Black GlossyT11010J30060W | 1 | |
| 35 | Button Head Socket Screw M6X10SP0212001 | 3 | |
| 36 | Screw Pan 4X1093500-04010-OH | 1 | |
| 36.1 | Screw Phcc Lp M4X0.7X10X8.8 OBD-II Phase-2SF0225044 | 1 | |
| 37 | Side Stand Switch AssemblyT1501MKW0050N | 1 | |
| 38 | Truss Head Screw M5X16SP0705016 | 1 | |
| 38.1 | Screw Rdskt M5X0.8X16X8.8 Bobber Ug 2.2SF0212036 | 1 | |
| 39 | Washer Plate LHT11010KW0070N | 1 | |
| 40 | Washer Plate RHT11010KW0080N | 1 | |
| 41 | Washer M6 (6.5 X 12 X 2) Bobber Ug 2.2TSF0401132 | 3 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 147, parts table page 148. View original parts table ↗
