Jawa 42 Bobber · ASSEMBLY 49 · REV 17

Electronic Fuel Injection (EFI) Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber Electronic Fuel Injection (EFI) Assembly exploded assembly diagram, catalogue page 143

Jawa 42 Bobber · Rev 17 · p. 143Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Throttle Body Assembly (33 Dia)T0102HKW0010N CUT OFF - MZDJ31C16P1C32733	1	Enquiry ↗
1.1	Throttle Body Assembly Type B OBD-II (38 Dia)T0102HY50050N FIT FROM - MZDJ31C16P1C32734	1	Enquiry ↗
2	Flanged Head Bolt-Sh M6X12SP0906041	4	Enquiry ↗
3	Throttle Cable BracketT0102HKW0040N	1	Enquiry ↗
4	Fastner-MtbT1501PKW0050N	5	Enquiry ↗
5	Fastner-TmapT1502EKW0020N	1	Enquiry ↗
6	Tmap ECU CT1502EKE0250N	1	Enquiry ↗
7	Metal FlangeT10050KW0050N	1	Enquiry ↗
8	Fuel Sensor UnitT1501PKW0010N	1	Enquiry ↗
8.1	Fuel Sensor Unit OBD-II Phase-2 (E20)T1501PJ10010N	1	Enquiry ↗
9	Rubber GasketT1501PKW0040N	1	Enquiry ↗
10	Iacv ECU (33 Dia)T1502HKW0020N	1	Enquiry ↗
10.1	Iacv ECU (38 Dia)T0102HY50040N	1	Enquiry ↗
11	Fuel Injector Cap (33 Dia)T1501PVF0020E	1	Enquiry ↗
11.1	Fuel Injector Cap (38 Dia)T1501PKW0020E	1	Enquiry ↗
12	SeperatorT1501PKW0060N	1	Enquiry ↗
13	Fixing Injector Clip (Dellorto)T0102BKE0050N	1	Enquiry ↗
14	Fuel Injector (33 Dia)T1501PKW0070N	1	Enquiry ↗
14.1	Fuel Injector (38 Dia)T0102HY50020N	1	Enquiry ↗
15	Electronic Control Unit - OBD-1T1502GJ20010N	1	Enquiry ↗
15.1	Electronic Control Unit - OBD-2AT1502GJ20020N	1	Enquiry ↗
15.2	Electronic Control Unit Hardware (Single Spark)T1502GJ30080N	1	Enquiry ↗
16	Lambda SensorT15000Y50020N	1	Enquiry ↗
17	Ignition Coil With CableT1502CKE0050N	1	Enquiry ↗
18	Fuel Pump PlasticT10050KW0010N CUT OFF - MZDJ31C16P1C32733	1	Enquiry ↗
18.1	Fuel Pump (OBD II)T10050J20010N FIT FROM - MZDJ31C16P1C32734	1	Enquiry ↗
19	Rubber GasketT10050KW0060N	1	Enquiry ↗
20	Fuel FilterT10050KW0040N	1	Enquiry ↗
21	Throttle Position Sensor Kit (33 Dia)T0102HKW0060N	1	Enquiry ↗
22	Kit 3 In 1 Sensor Throttle Body (38 Dia)T0102HY50060N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

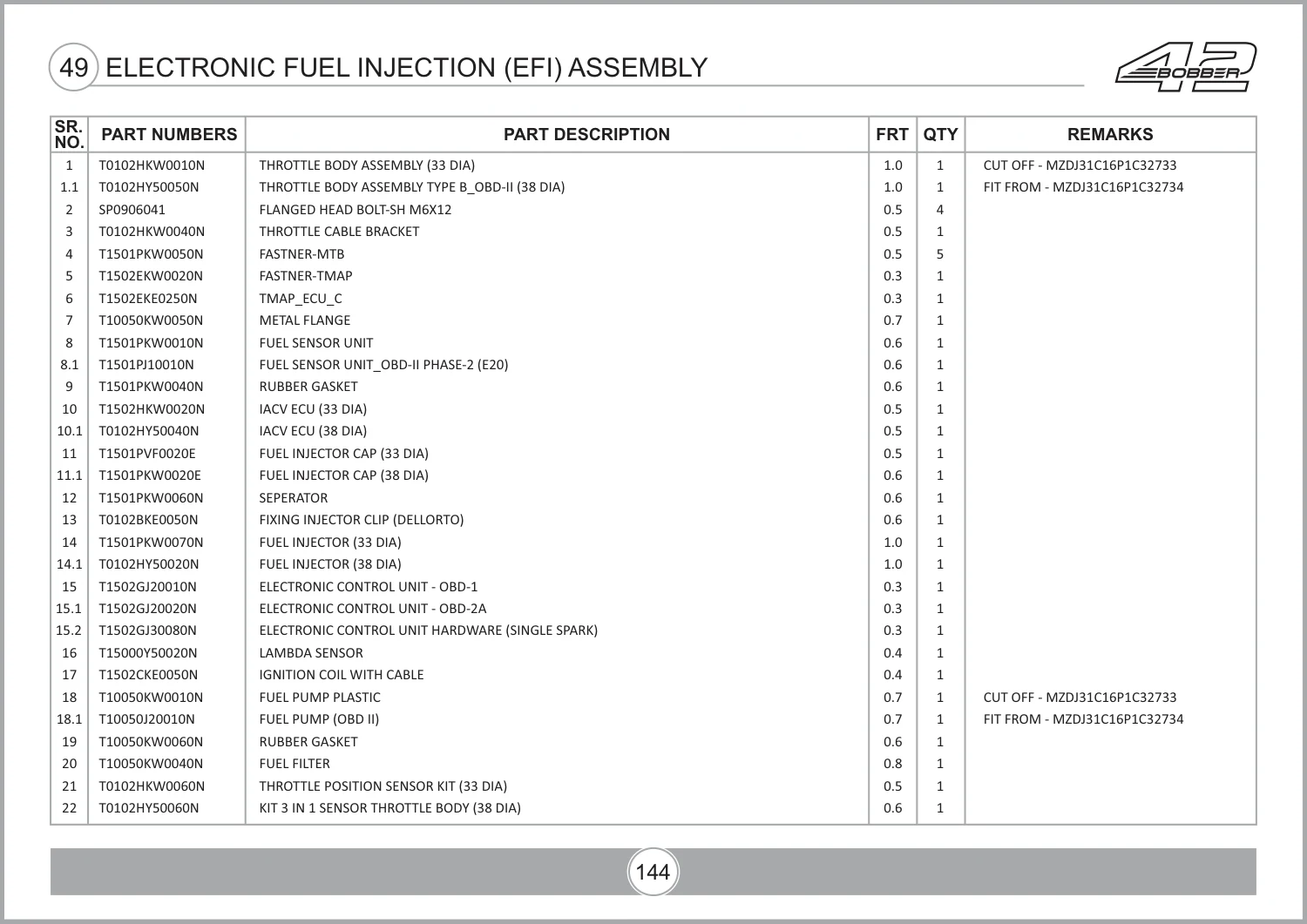

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 155, parts table page 156. View original parts table ↗
