Jawa 42 Bobber · ASSEMBLY 39 · REV 17
Fairing Assembly (1/2)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 111Original parts list ↗
Parts in this drawing
5 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 28 | Headlamp-Rim Assembly (Black)T1501DJ20240E ROADSTER GREY | 1 | |
| 29 | Headlamp O RingT1501DJ20100N ROADSTER GREY | 1 | |
| 30 | Mounting Bracket - 1T1501DJ20180N ROADSTER GREY | 2 | |
| 31 | Mounting Bracket - 2T1501DJ20190N ROADSTER GREY | 2 | |
| 32 | Screw M5X8 With Head Washer - (Head Lamp)T1501DJ20200N ROADSTER GREY | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

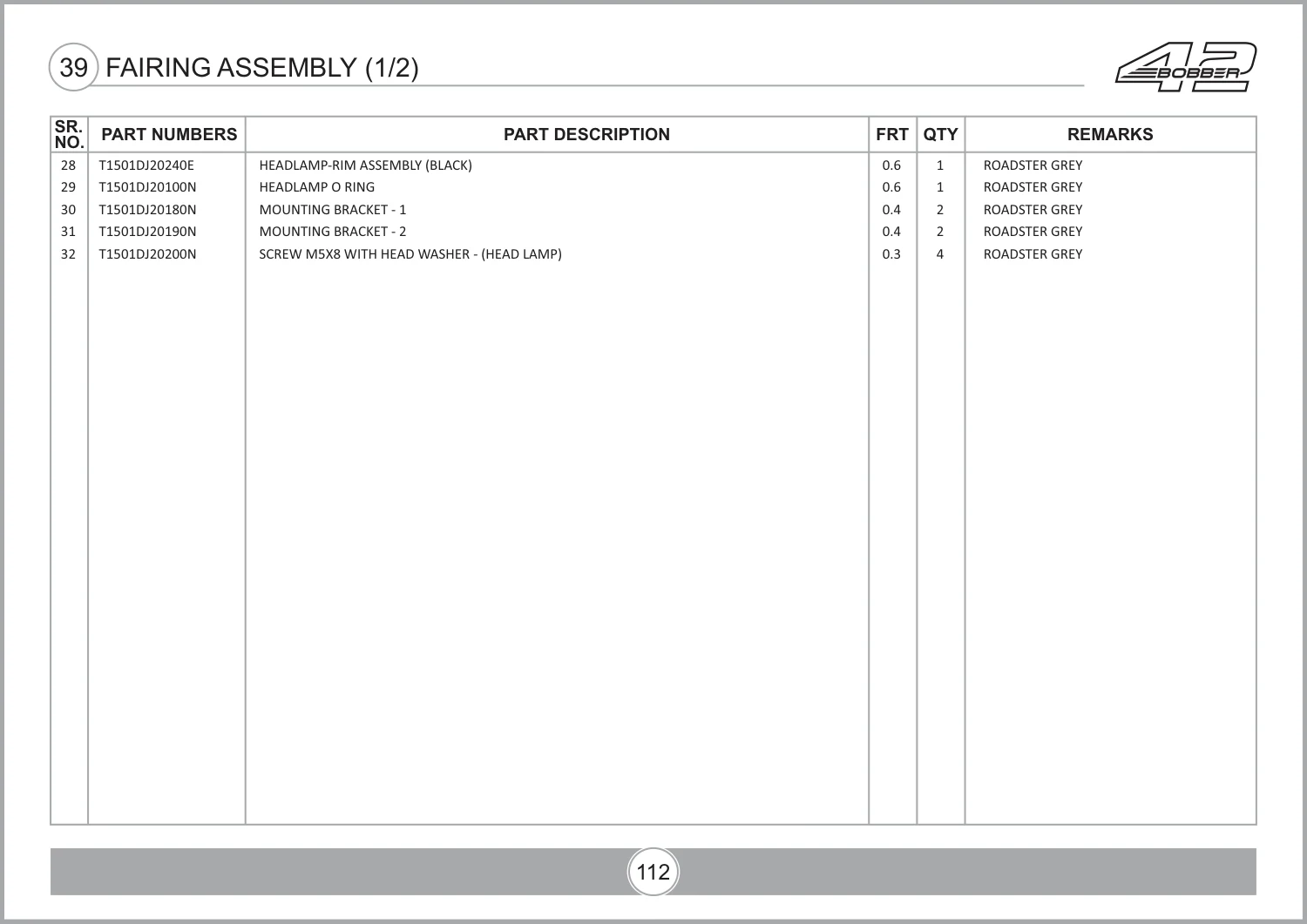

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 123, parts table page 124. View original parts table ↗
