Jawa 42 Bobber · ASSEMBLY 54 · REV 17
Decals - Silver & Black
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 155Original parts list ↗
Parts in this drawing
30 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Tank Grid Decal LH BlueT13200J30700C BSA-SILVER | 1 | |
| 2 | Tank Grid Decal RH BlueT13200J30720C BSA-SILVER | 1 | |
| 3 | Tank Grid Top BlueT13200J30740C BSA-SILVER | 1 | |
| 4 | Tank Decal LH 42 BlackT13200J30650E ROADSTER GREY | 1 | |
| 5 | Tank Decal RH 42 BlackT13200J30670E ROADSTER GREY | 1 | |
| 6 | Tank Center Decal - Gloss BlackT13200J30690E BSA-SILVER | 1 | |
| 6.1 | Tank Center Decal - Gloss & Matte BlackT13200J30690U ROADSTER GREY | 1 | |
| 7 | 3D Badge Tank LH BlackT13200J30460N BSA-SILVER & ROADSTER GREY | 1 | |
| 8 | 3D Badge Tank RH BlackT13200J30470N BSA-SILVER & ROADSTER GREY | 1 | |
| 9 | Front Fender Strip LH BlueT13200J30760C BSA-SILVER | 1 | |
| 9.1 | Front Fender Strip LH BlackT13200J30760E ROADSTER GREY | 1 | |
| 10 | Front Fender Strip RH BlueT13200J30790C BSA-SILVER | 1 | |
| 10.1 | Front Fender Strip RH BlackT13200J30790E ROADSTER GREY | 1 | |
| 11 | Rear Fender Strip LH BlueT13200J30820C BSA-SILVER | 1 | |
| 11.1 | Rear Fender Strip LH BlackT13200J30820E ROADSTER GREY | 1 | |
| 12 | Rear Fender Strip RH BlueT13200J30850C BSA-SILVER | 1 | |
| 12.1 | Rear Fender Strip RH BlackT13200J30850E ROADSTER GREY | 1 | |
| 13 | Side Panel Top LH BlueT13200J30880C BSA-SILVER | 1 | |
| 13.1 | Side Panel Top LH BlackT13200J30880E ROADSTER GREY | 1 | |
| 14 | Side Panel Top RH BlueT13200J30910C BSA-SILVER | 1 | |
| 14.1 | Side Panel Top RH BlackT13200J30910E ROADSTER GREY | 1 | |
| 15 | Side Panel Bottom LH BlueT13200J30940C BSA-SILVER | 1 | |
| 15.1 | Side Panel Bottom LH BlackT13200J30940E ROADSTER GREY | 1 | |
| 16 | Side Panel Bottom RH BlueT13200J30970C BSA-SILVER | 1 | |
| 16.1 | Side Panel Bottom RH BlackT13200J30970E ROADSTER GREY | 1 | |
| 17 | Decal All Star Rear Fender BlackT13200J31030E ROADSTER GREY | 1 | |
| 17.1 | Decal All Star Rear Fender BlueT13200J31030C BSA-SILVER | 1 | |
| 17.2 | Decal All Star Rear Fender WhiteT13200J31030B JASPER RED | 1 | |
| 17.3 | Decal All Star Rear Fender ChromeT13200J31030F CHROME BLACK | 1 | |
| 17.4 | Decal All Star Rear Fender GreyT13200J31030L MYSTIQUE COPPER | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

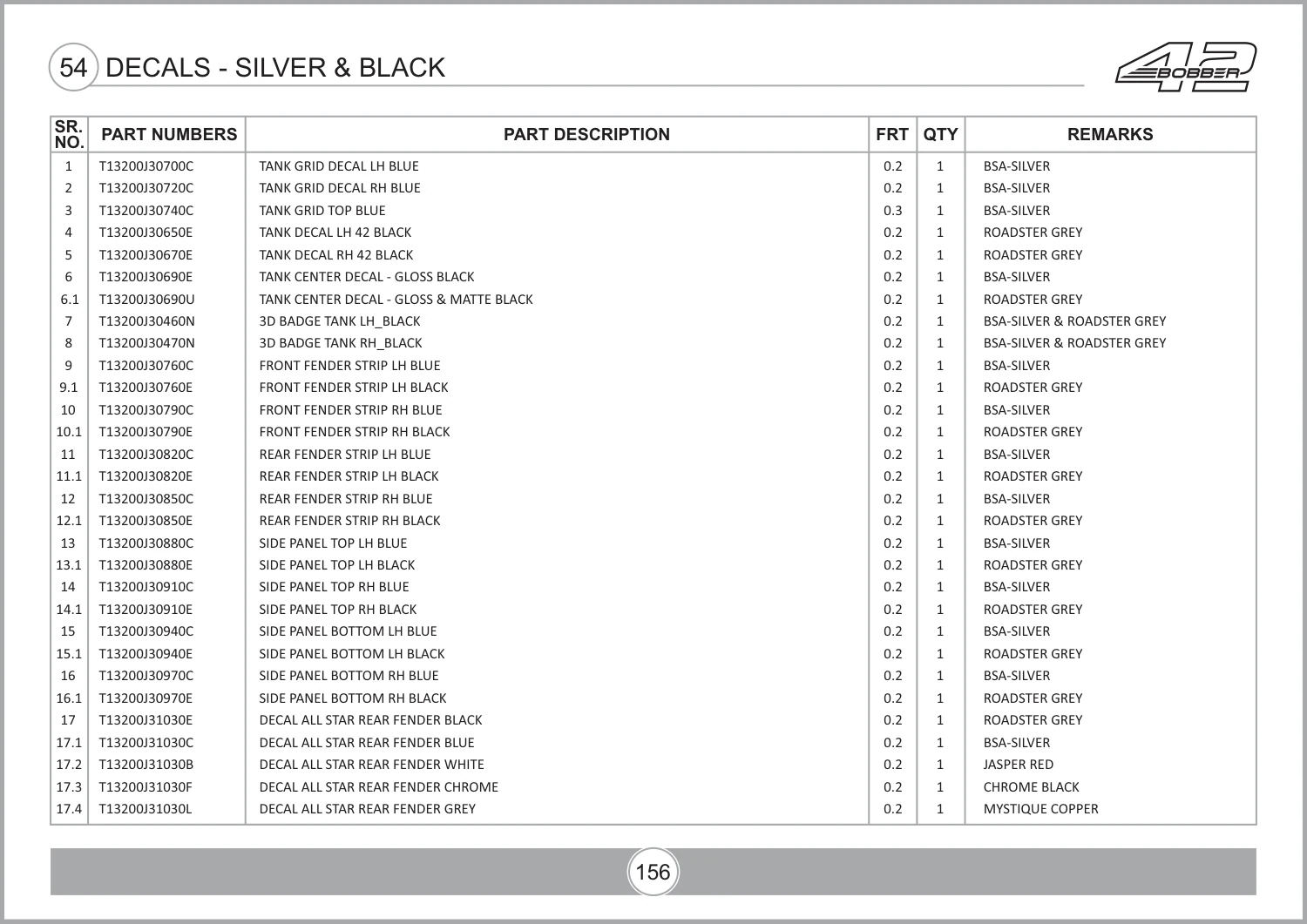

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 167, parts table page 168. View original parts table ↗
