Jawa 42 Bobber · ASSEMBLY 25 · REV 17
Anti-Lock Braking System (ABS)
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 71Original parts list ↗
Parts in this drawing
5 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Wet ABS Unit Dual ChannelT2501AKW0021N | 1 | |
| 2 | Dual Channel ABS Mounting BracketT08000KW0380N | 1 | |
| 3 | Flange Bolt Sh - M6 X 40SP0906032 | 2 | |
| 4 | M6 Nyloc Nut (Black)TSF0318007 | 2 | |
| 5 | Flange Bolt M6*14TSF0102282 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

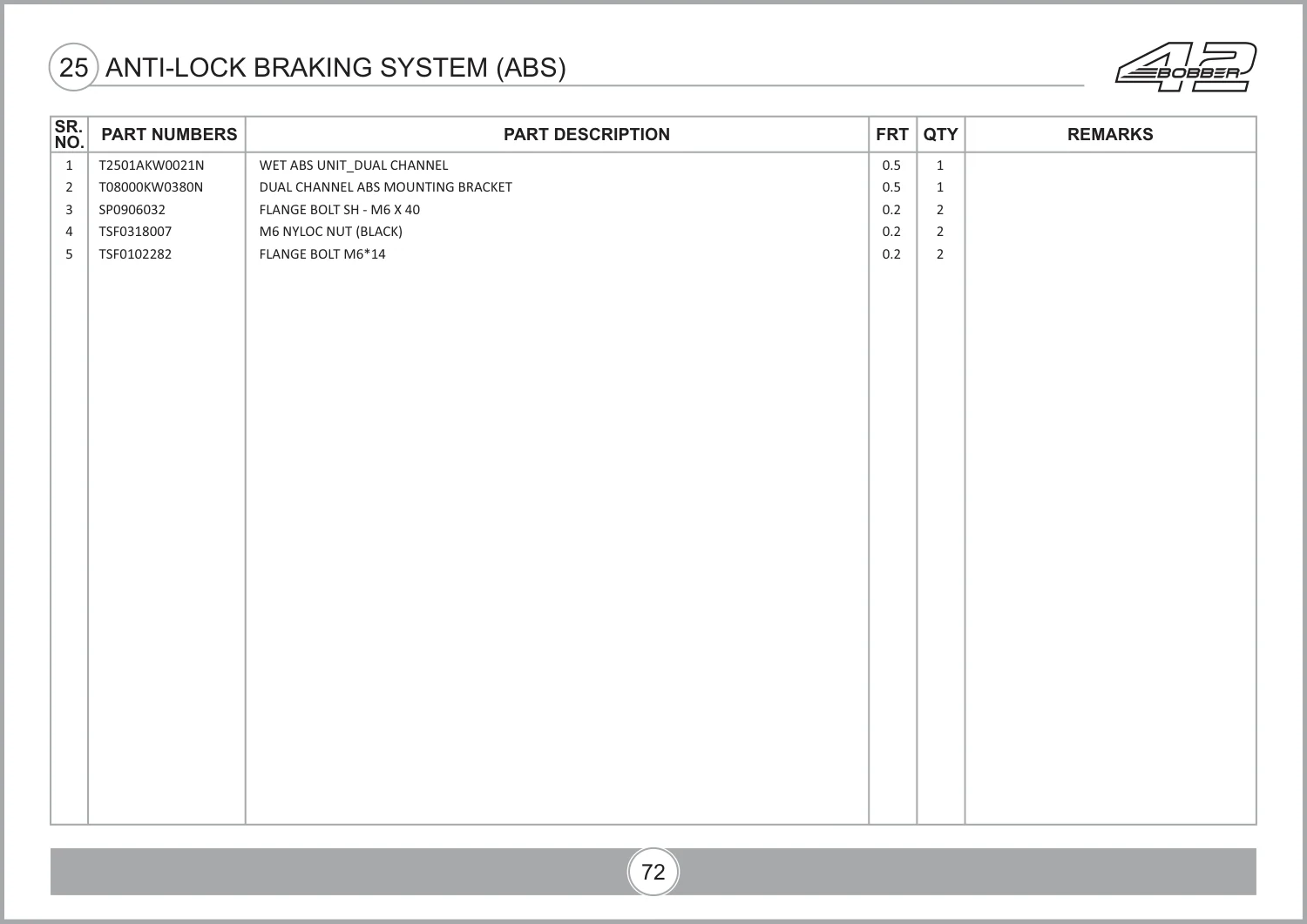

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 83, parts table page 84. View original parts table ↗
