Jawa 42 Bobber · ASSEMBLY 24 · REV 17

Brake System Rear

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber Brake System Rear exploded assembly diagram, catalogue page 67

Jawa 42 Bobber · Rev 17 · p. 67Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Socket Head Screw M6X16 Black (Locktite)TSF0224080	1	Enquiry ↗
2	Speed Sensor Front Wheel M104T0602FKE0010N	1	Enquiry ↗
3	Wet ABS Unit Dual ChannelT2501AKW0021N	1	Enquiry ↗
4	Rear Reservoir Hose ClipT25000KW0010N	2	Enquiry ↗
5	Banjo Bolt KitT1901JKW0020N	3	Enquiry ↗
6	A02-Split Pin 2 X 16 Is:549MF01920001500	1	Enquiry ↗
7	Hose, ABS To Rear Master Cylinder KitT2501HJ30080N	1	Enquiry ↗
8	Hose, ABS To Rear Caliper KitT2501HJ30060N	1	Enquiry ↗
9	Caliper Assy, Rear Brake RHT2001CKW0040N	1	Enquiry ↗
10	Master Cylinder Assy -Rear (Ø 12)T2501EJ30050N	1	Enquiry ↗
11	Screw Hex Fl M6X1X18X8.8TSF0102271	2	Enquiry ↗
11.1	Screw Hex Fl M6X1X20X8.8 Bobber Ug 2.2SF0202347	2	Enquiry ↗
12	Reservoir ABST25010KE0030N	1	Enquiry ↗
13	Hose Reservoir J302T2501EJ30070N	1	Enquiry ↗
14	Washer Plain M6X13X1SF0401213	1	Enquiry ↗
14.1	Washer 6.5X12.7X1 Bobber UgT0208AVF0140N	1	Enquiry ↗
15	Cable Strap 200MmT1501AKE2050E	4	Enquiry ↗
16	Return Spring, Rear Brake PedalT2001BJ30010N	1	Enquiry ↗
17	Rear Brake Lever CompleteT20010J30030N	1	Enquiry ↗
18	Wire GuideT2001CJ30020N	1	Enquiry ↗
19	Locking PinT25000KE0310N	1	Enquiry ↗
20	Rear Master Cyl Pressure Switch KitT2501EKW0020N	1	Enquiry ↗
21	Rear Brake Pad KitT2001KKW0020N	1	Enquiry ↗
22	Boot KitT2001KKW0040N	1	Enquiry ↗
23	Bleeder Screw KitT2001KKW0010N	1	Enquiry ↗
24	Pad Pin KitT2001KKW0030N	1	Enquiry ↗
25	Double Cable Clip Rev0 L1 A2T1501AKW0070N	2	Enquiry ↗
26	Cover Rear Master CylinderT20000J30010N	1	Enquiry ↗
27	Pivot Link Rear Brake LeverT2001CJ30030N	1	Enquiry ↗
28	Flange Bolt Sh M6X28SF0102034	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

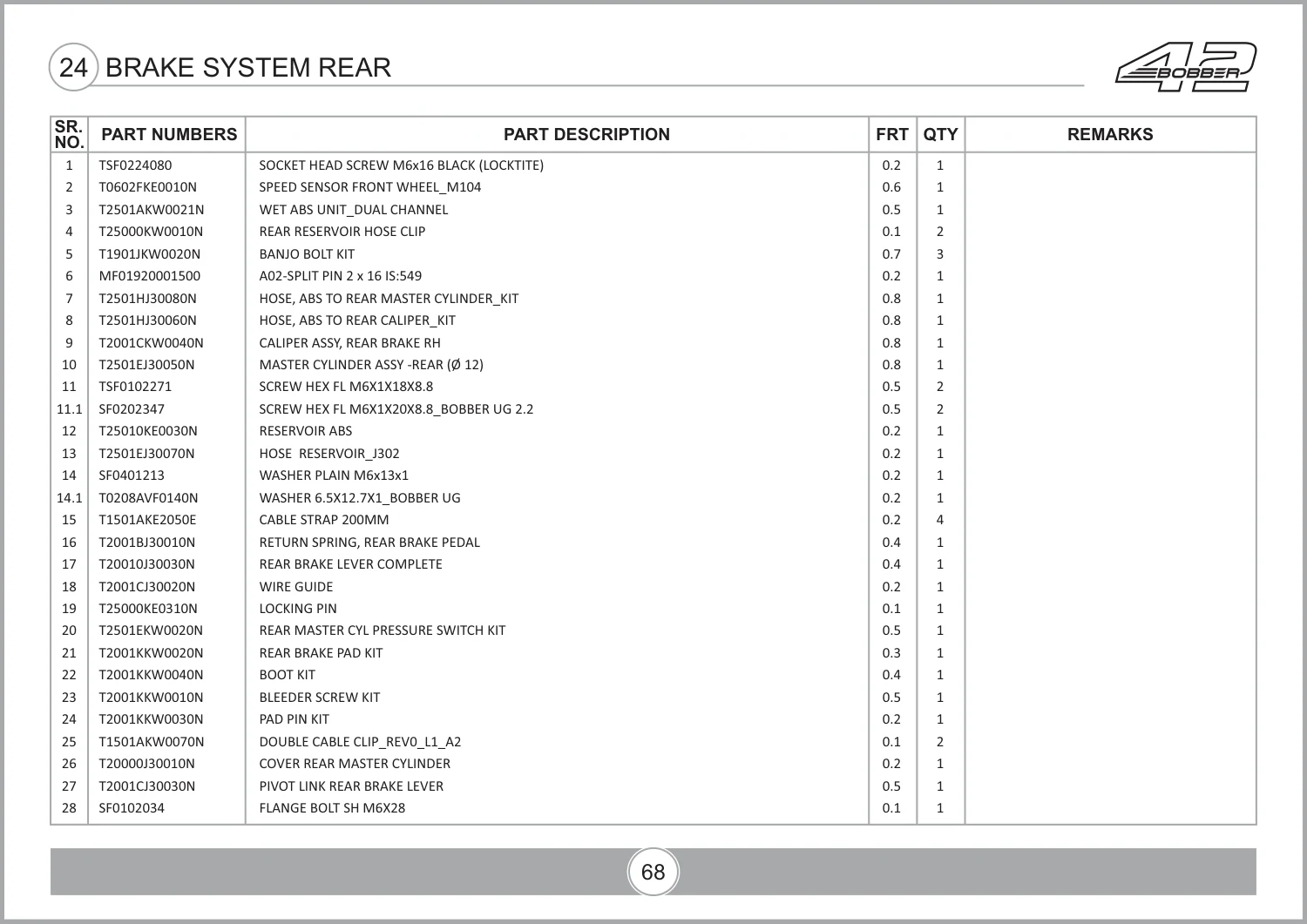

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 79, parts table page 80. View original parts table ↗
