Jawa 42 Bobber · ASSEMBLY 21 · REV 17
Evaporative Emission System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 Bobber · Rev 17 · p. 57Original parts list ↗
Parts in this drawing
13 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Clip Tube B895002-02080 | 4 | |
| 2 | Drain Tube CanisterT10000KW0090N | 1 | |
| 3 | Carbon CanisterT10000KE0021N | 1 | |
| 4 | Spring Band Clamp Dia 11T10050KE0100N | 2 | |
| 5 | Check ValveT10000KE0031N | 1 | |
| 6 | Hose Check Valve To 33 Dia Throttle BodyT10000KW0120N CUT OFF - MZDJ31C16P1C32733 | 1 | |
| 6.1 | Hose Check Valve To 38 Dia Throttle Body OBD IIT10000Y50120N FIT FROM - MZDJ31C16P1C32734 | 1 | |
| 7 | Hose Canister To Check ValveT10000KW0110N | 1 | |
| 8 | Hose Rollover Valve To CanisterT10010KW0190N | 1 | |
| 8.1 | Hose Rollover Valve To Canister OBD-II Phase-2 (E20)T10000J20260N | 1 | |
| 9 | Tool Kit BandT14010KE0010N | 2 | |
| 10 | Bracket Bs-IV Canister Mounting LooseT10000KW0070N | 1 | |
| 11 | Flanged Headbolt M6X12SP0906041 | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

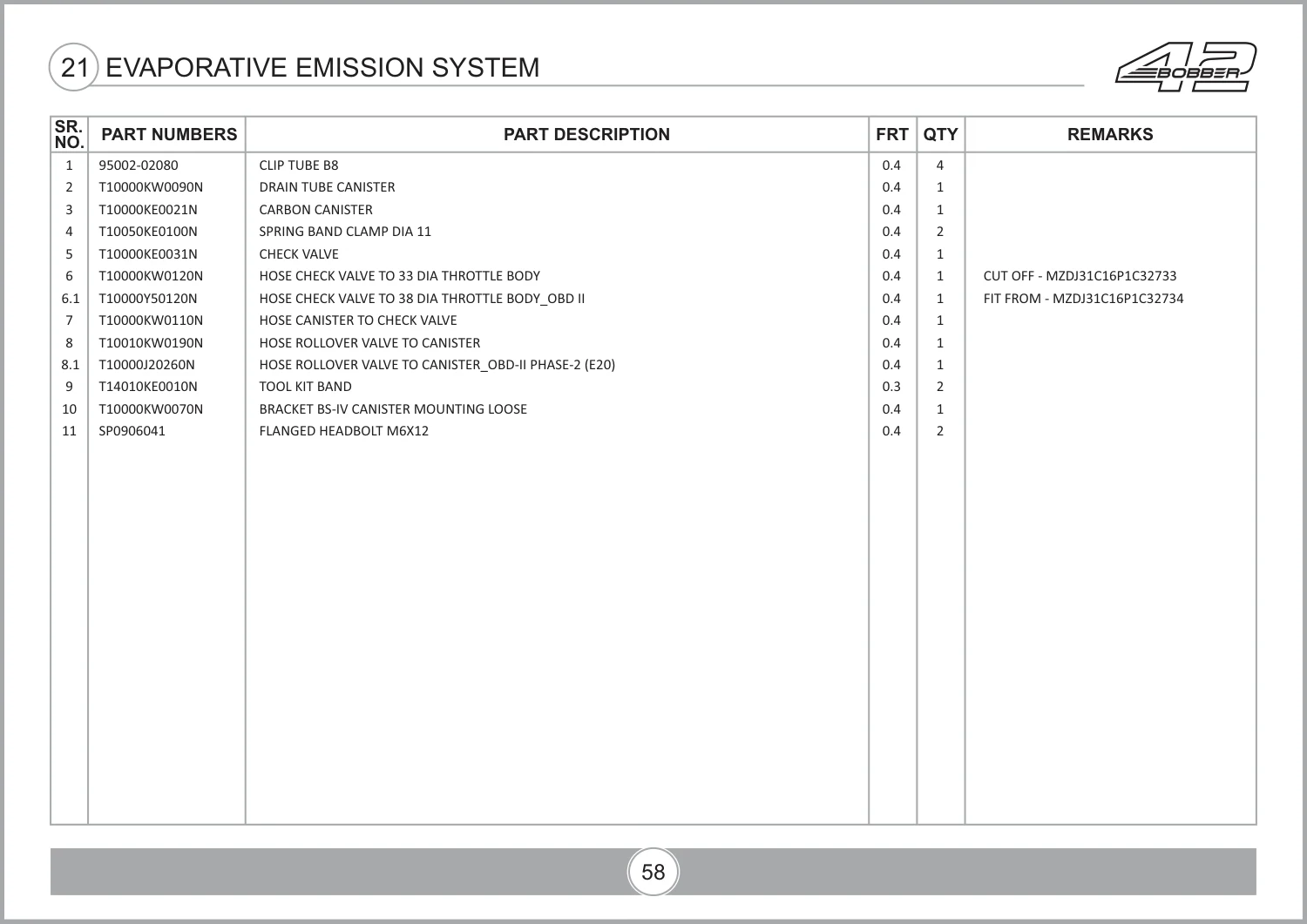

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 69, parts table page 70. View original parts table ↗
