Jawa 42 Bobber · ASSEMBLY 15 · REV 17

R Crankcase Cover

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber R Crankcase Cover exploded assembly diagram, catalogue page 41

Jawa 42 Bobber · Rev 17 · p. 41Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cover RH With Oil Plug OBD II Chrome VariantT0202DVG0970N	1	Enquiry ↗
1.1	Cover RH With Oil Plug OBD II NVH Black VariantT0202DVG1300E	1	Enquiry ↗
1.2	Cover RH With Oil Plug OBD II Black Mat Raven TextureT0202DVG1140E	1	Enquiry ↗
2	Flange Head Bolt Sh M6X28SF0102034	3	Enquiry ↗
2.1	Screw Hex Fl M6X1X28X8.8 Bobber Ug 2.2SF0202349	3	Enquiry ↗
3	Asm Cover RH Chrome VariantT0202DVG0750N	1	Enquiry ↗
3.1	Asm Cover RH NVH Black VariantT0202DVG0560E	1	Enquiry ↗
3.2	Asm Cover RH Black Mat Raven TextureT0202DVG1060N	1	Enquiry ↗
4	Oil Seal CrankshaftT18020UF0110N	2	Enquiry ↗
5	Circlip - Oil Seal CrankshaftT0202DUF0750N	1	Enquiry ↗
6	Lens, Oil Level CheckT02090UH0010N	1	Enquiry ↗
7	Wire Clip Glass WindowT0202CUF2410N	1	Enquiry ↗
8	Cap Oil FillerT0203BUF0250N	1	Enquiry ↗
9	O Ring Cap Oil FillerT0209AVN0300N	1	Enquiry ↗
10	Bolt, Hex Flange Sh - M6X25SP0206021	3	Enquiry ↗
11	Cover Oil Filter C300T0202DVE0080N	1	Enquiry ↗
12	Gasket Cover Oil FilterT02090VE0030N	1	Enquiry ↗
13	Plug M8X1.250302AB0560N	1	Enquiry ↗
14	Bolt, Flange Hex Head Sh M6X20SP0906029	4	Enquiry ↗
15	Assembly Clutch Lifter (Applicable For Chrome & NVH Black Variant)T0219AUF0010N	1	Enquiry ↗
15.1	Assembly Clutch Lifter (Applicable For Black Mat Raven Texture)T0219AVG0020N	1	Enquiry ↗
16	Clutch Lifter SpringT0219AUF0060N	1	Enquiry ↗
17	Oil Seal, Clutch Lifter Shaft (Ø11Ø185) FkmT18020UF0130N	1	Enquiry ↗
18	Needle Roller Bearing (121610)T18050UF0220N	2	Enquiry ↗
19	Asm Cover Coolant PumpT0202DVE0130N	1	Enquiry ↗
20	Service Cover RH Without Logo Chrome VariantT0202DVG0710N	1	Enquiry ↗
20.1	Service Cover RH Without Logo NVH Black VariantT0202DVG0580E	1	Enquiry ↗
20.2	Service Cover RH Without Logo Black Mat Raven TextureT0202DVG1010N	1	Enquiry ↗
21	Circlip Int - Lug 25X1.2SF0602068	1	Enquiry ↗
22	Bolt, Hex Flange Sh - M6X65SP0906033	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

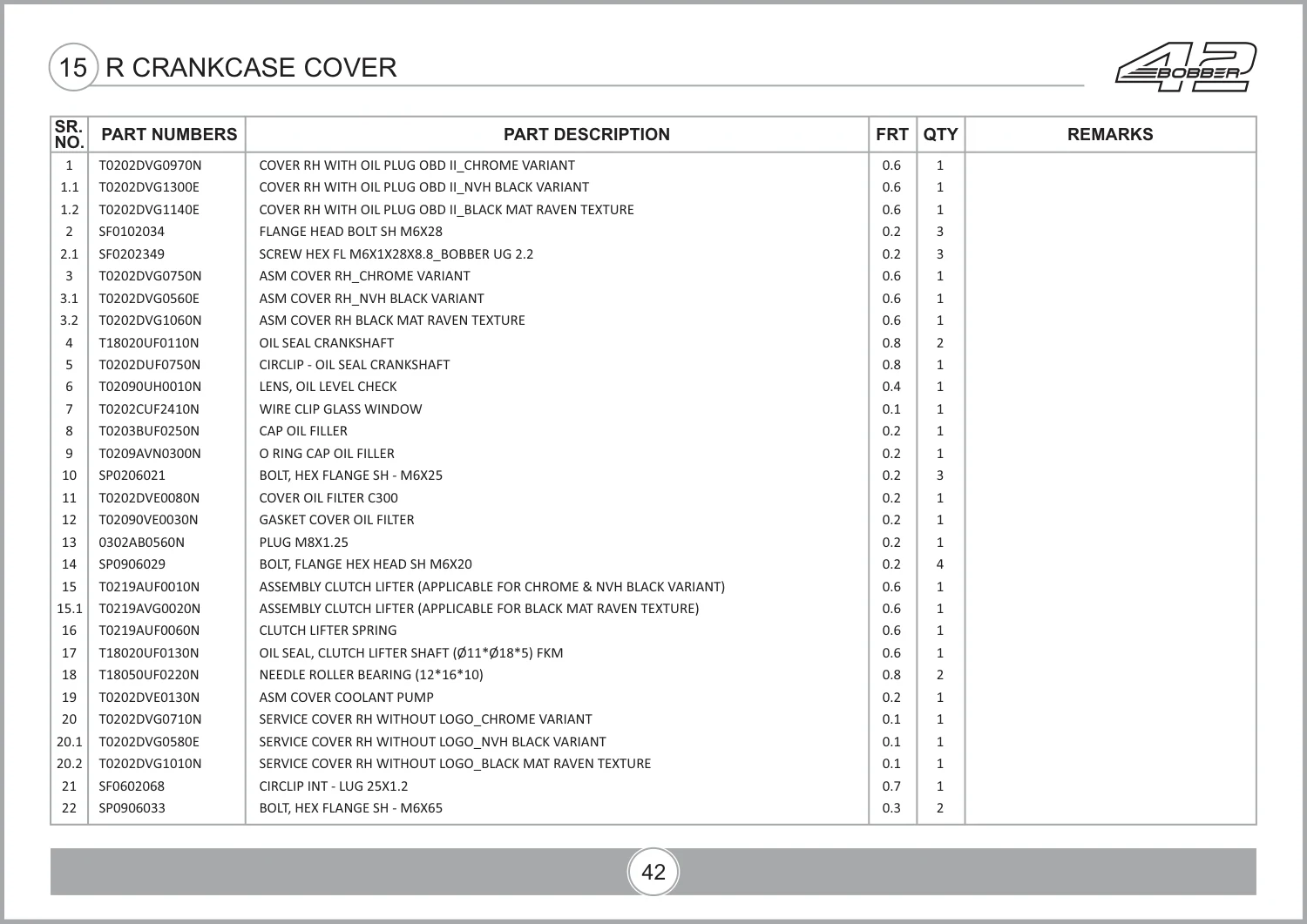

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 53, parts table page 54. View original parts table ↗
