Jawa 42 Bobber · ASSEMBLY 13 · REV 17

Transmission System - OBD II

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 Bobber Transmission System - OBD II exploded assembly diagram, catalogue page 33

Jawa 42 Bobber · Rev 17 · p. 33Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Washer Ø20.2Ø300.5T0215DVG0470N	1	Enquiry ↗
2	Shaft, Input T/M (NVH Final)T0215DVG0210N	1	Enquiry ↗
3	Gear, 5Th Drive (NVH Final)T0215DVG0240N	1	Enquiry ↗
4	Spline Washer Ø20.3Xø26X1.6 (NVH Final)T0215DVG0280N	2	Enquiry ↗
5	CirclipT0215AUF0130N	2	Enquiry ↗
6	Gear, 3Rd & 4Th Drive (Integral) (Intermediate) (NVH Final)T0215DVG0230N	1	Enquiry ↗
7	Spline Bush - 6Th Drive (NVH Final)T0215DVG0270N	1	Enquiry ↗
8	Gear, 6Th Drive (NVH Final)T0215DVG0250N	1	Enquiry ↗
9	Gear, 2Nd Drive (NVH Final)T0215DVG0220N	1	Enquiry ↗
10	Washer 15.2X25X1T18010UF0070N	1	Enquiry ↗
11	Sprocket, DriveT0215DUF0080N	1	Enquiry ↗
12	Lock Plate Drive SprocketT0215DUF0090N	1	Enquiry ↗
13	Flange Bolt M6*10TSF0102281	3	Enquiry ↗
14	Bearing Ball InputT18050UF0130N	1	Enquiry ↗
15	Oil Seal, Output ShaftT18020UF0080N	1	Enquiry ↗
16	Internal Circlip (Ø35*1.75)TSF0602039	1	Enquiry ↗
17	Bearing Input ShaftT18050UF0280N	1	Enquiry ↗
18	Washer Ø17.2Ø26*1T18010UF0100N	1	Enquiry ↗
18.1	Washer 17.2 X 26 X Thk. (1.000 To 1.050)T0215AUF0990N	1	Enquiry ↗
18.2	Washer 17.2 X 26 X Thk. (1.051 To 1.100)T0215AUF1000N	1	Enquiry ↗
18.3	Washer 17.2 X 26 X Thk. (1.101 To 1.150)T0215AUF1010N	1	Enquiry ↗
19	Breather Hole Cover PlateT0202CUF2430N	1	Enquiry ↗
20	Shaft, Output T/MT0215DUF0190N	1	Enquiry ↗
21	Bush, 2Nd GearT0215AUF0200N	3	Enquiry ↗
22	Gear 2Nd Driven (NVH Final)T0215DVG0160N	1	Enquiry ↗
23	Gear 6Th Driven (NVH Final)T0215DVG0200N	1	Enquiry ↗
24	Gear, 4Th Driven (NVH Final)T0215DVG0180N	1	Enquiry ↗
25	Gear 3Rd, Driven (NVH Final)T0215DVG0170N	1	Enquiry ↗
26	Washer 22.2280.5T18010UF0090N	1	Enquiry ↗
27	Bearing Output ShaftT18050UF0140N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

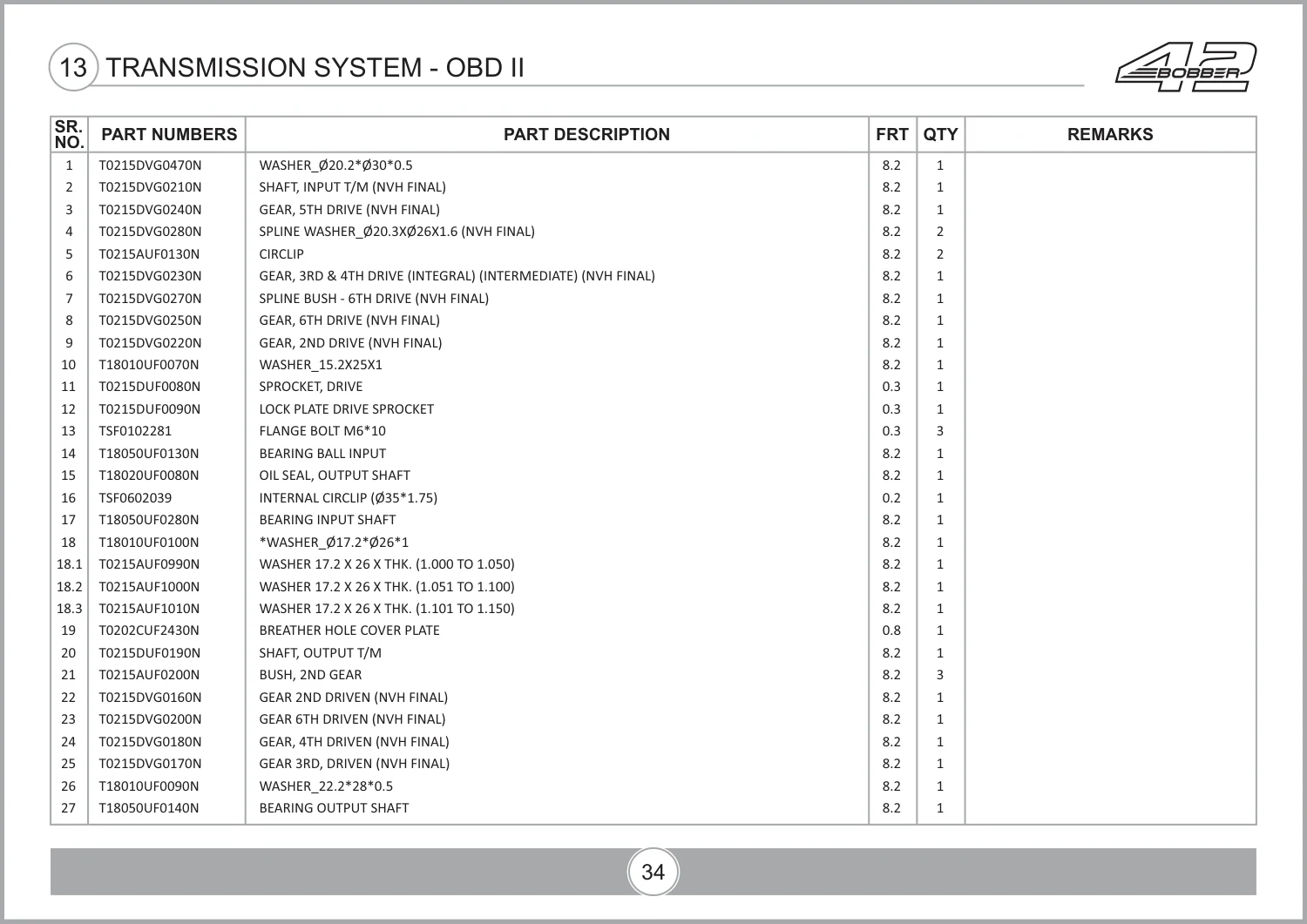

Source: PARTS CATALOGUE - JAWA 42 BOBBER_REV-17.pdf · PDF diagram page 45, parts table page 46. View original parts table ↗
