Jawa 42 OG All Star · ASSEMBLY 9 · REV 01
Balancer Shaft Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 OG All Star · Rev 01 · p. 21Original parts list ↗
Parts in this drawing
7 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Assembly Balancer Shaft CompleteT0204EVG0110N | 1 | |
| 2 | Kit Balancer ShaftT0204EVG0120N | 1 | |
| 3 | Balancer Gear SpringT0204EVG0070N | 4 | |
| 4 | Balancer Driven Gear Four SlotT0204EVG0050N | 1 | |
| 5 | Roller Pin Dia 3.9X2T0204EVG0080N | 2 | |
| 6 | Washer 2 Balancer ShaftT0204EVG0100N | 1 | |
| 7 | Circlip A17X1T0204EUF0120N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

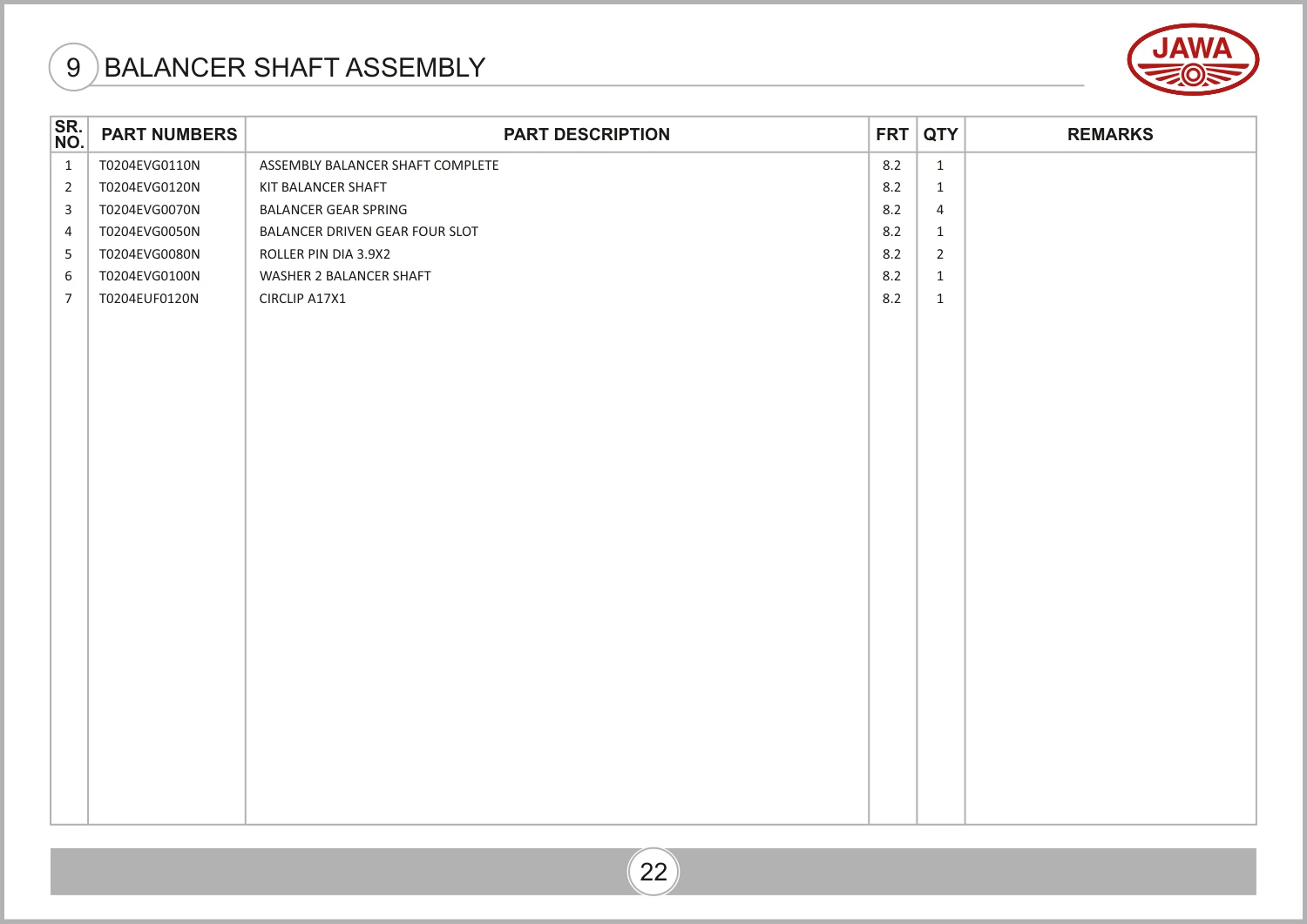

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 32, parts table page 33. View original parts table ↗
