Jawa 42 OG All Star spare parts
Choose an assembly to match the diagram number with the part name. This catalogue contains 54 diagram sheets and 1,037 parts entries, including repeated parts used in different assemblies.
Assembly 1
Camchain And Tensioner & Cylinder Head Cover
Page 1 · 21 parts
Assembly 2
Crankcase LH
Page 3 · 26 parts

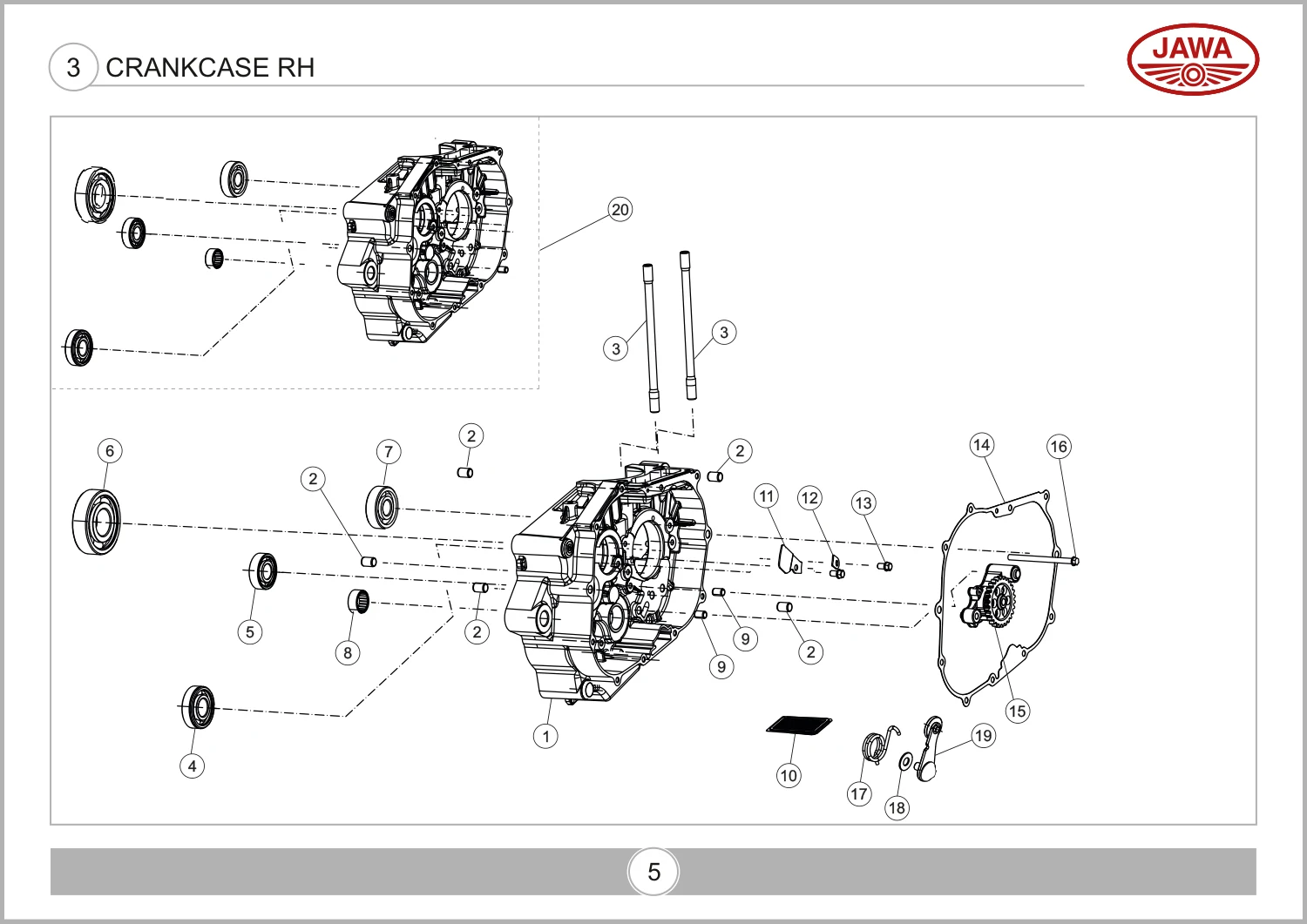

Assembly 3
Crankcase RH
Page 5 · 20 parts

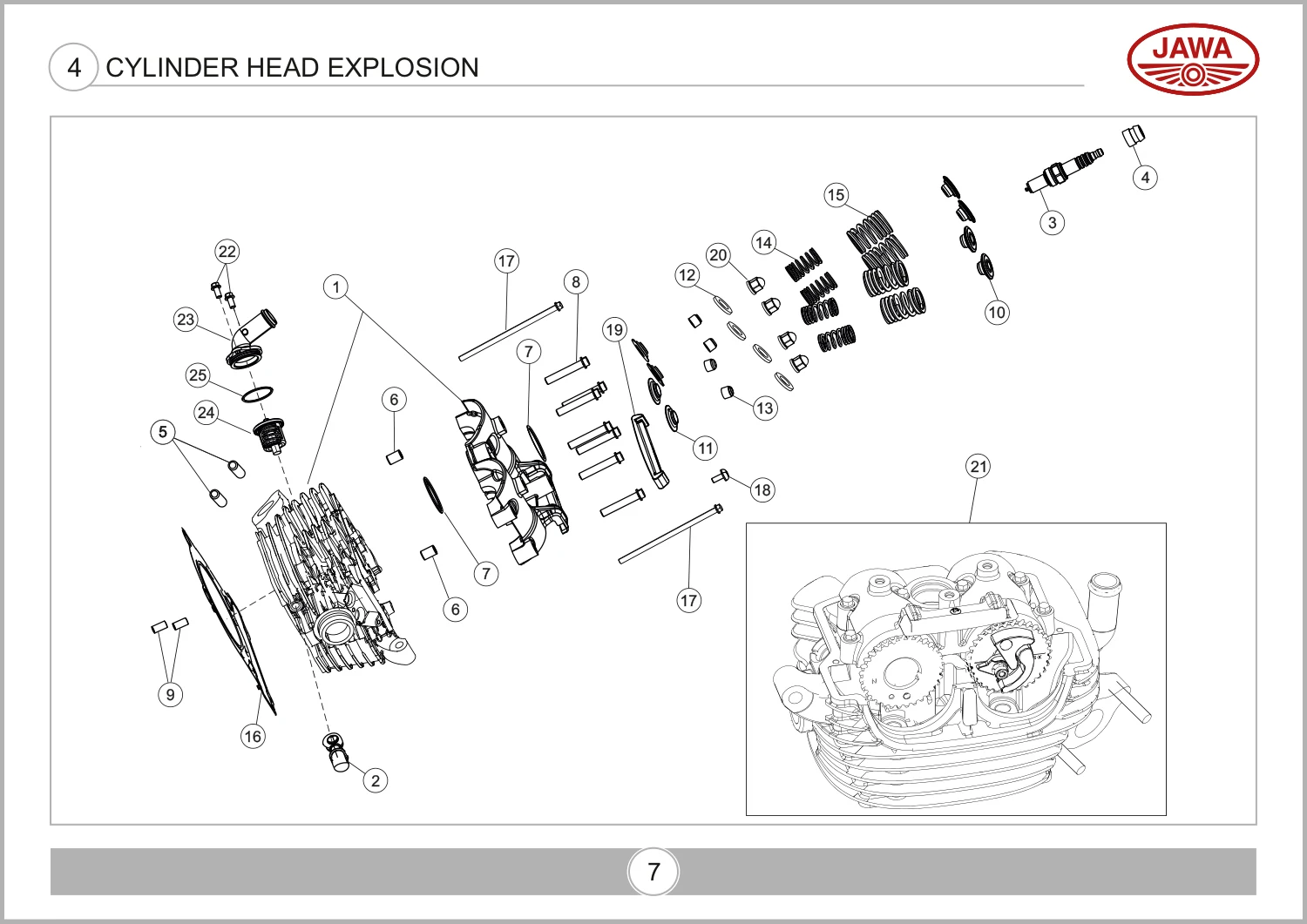

Assembly 4
Cylinder Head Explosion
Page 7 · 25 parts
Assembly 5
Drum Asm & Shift Shaft Mech Cambine
Page 9 · 24 parts
Assembly 6

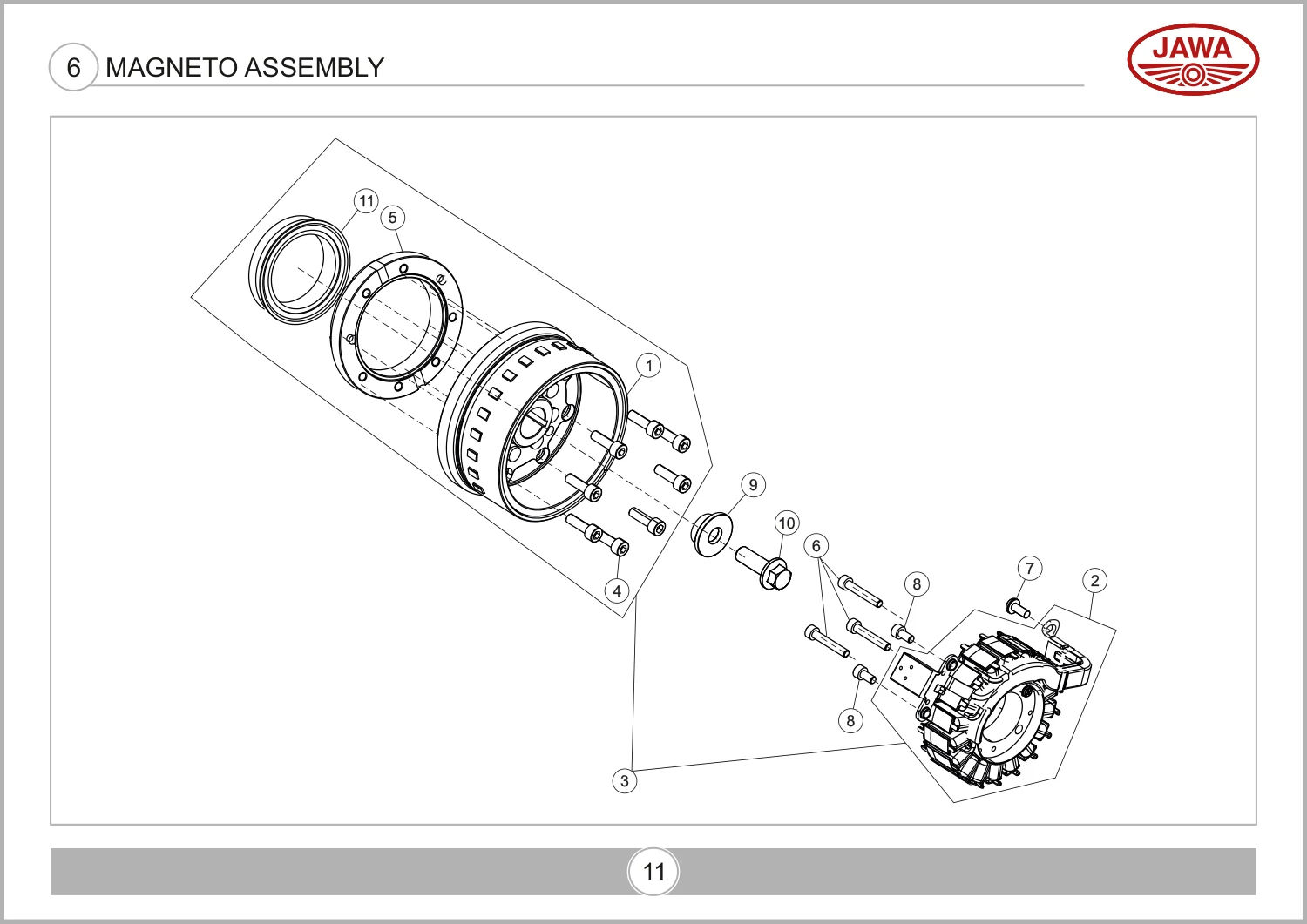

Magneto Assembly
Page 11 · 14 parts
Assembly 7

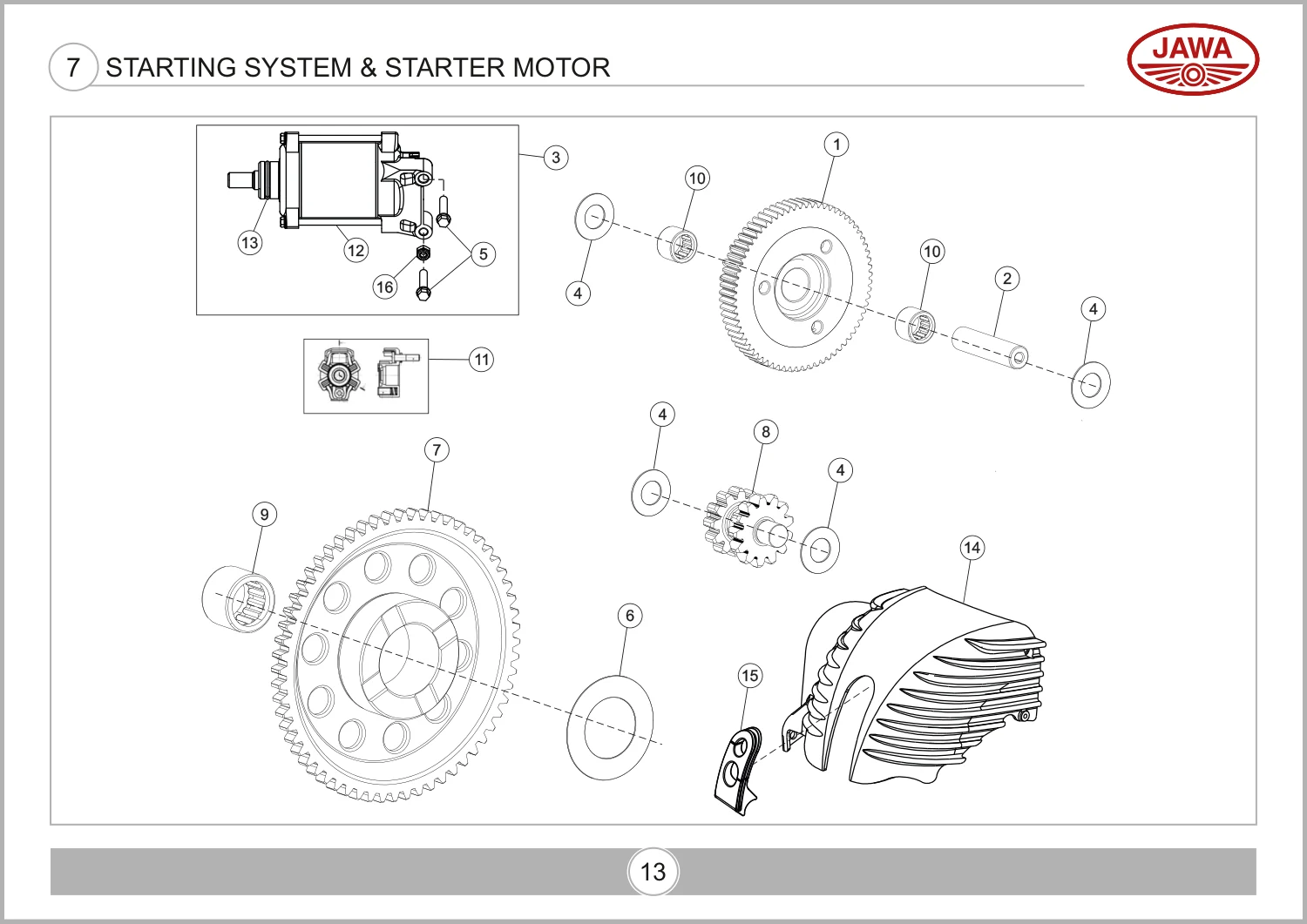

Starting System & Starter Motor
Page 13 · 16 parts
Assembly 8
Valve Train And Cam Shaft
Page 15 · 30 parts
Assembly 8
Valve Train And Cam Shaft
Page 17 · 30 parts

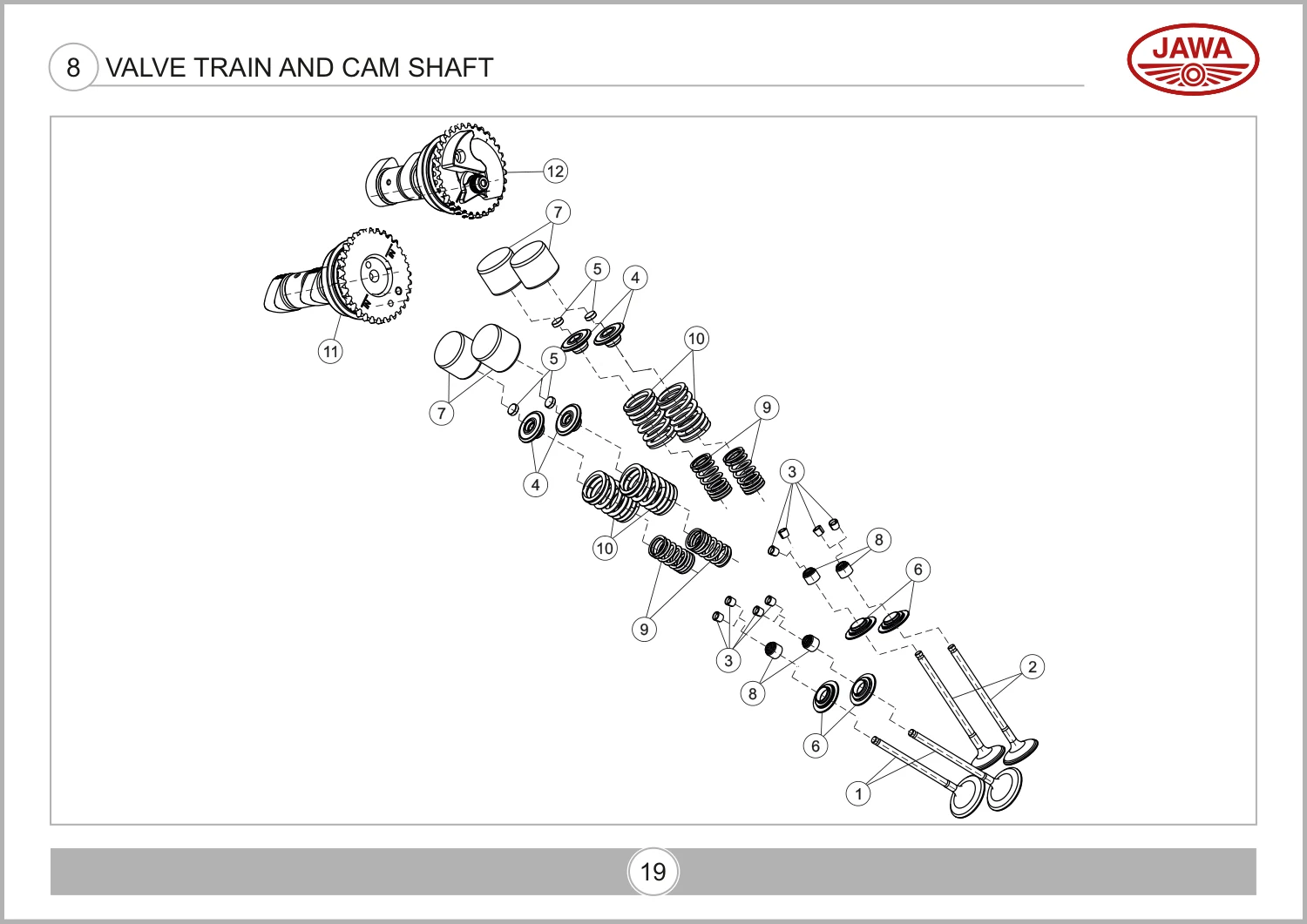

Assembly 8
Valve Train And Cam Shaft
Page 19 · 2 parts
Assembly 9
Balancer Shaft Assembly
Page 21 · 7 parts
Assembly 10
Transmission System
Page 23 · 30 parts
Assembly 10
Transmission System
Page 25 · 6 parts
Assembly 11

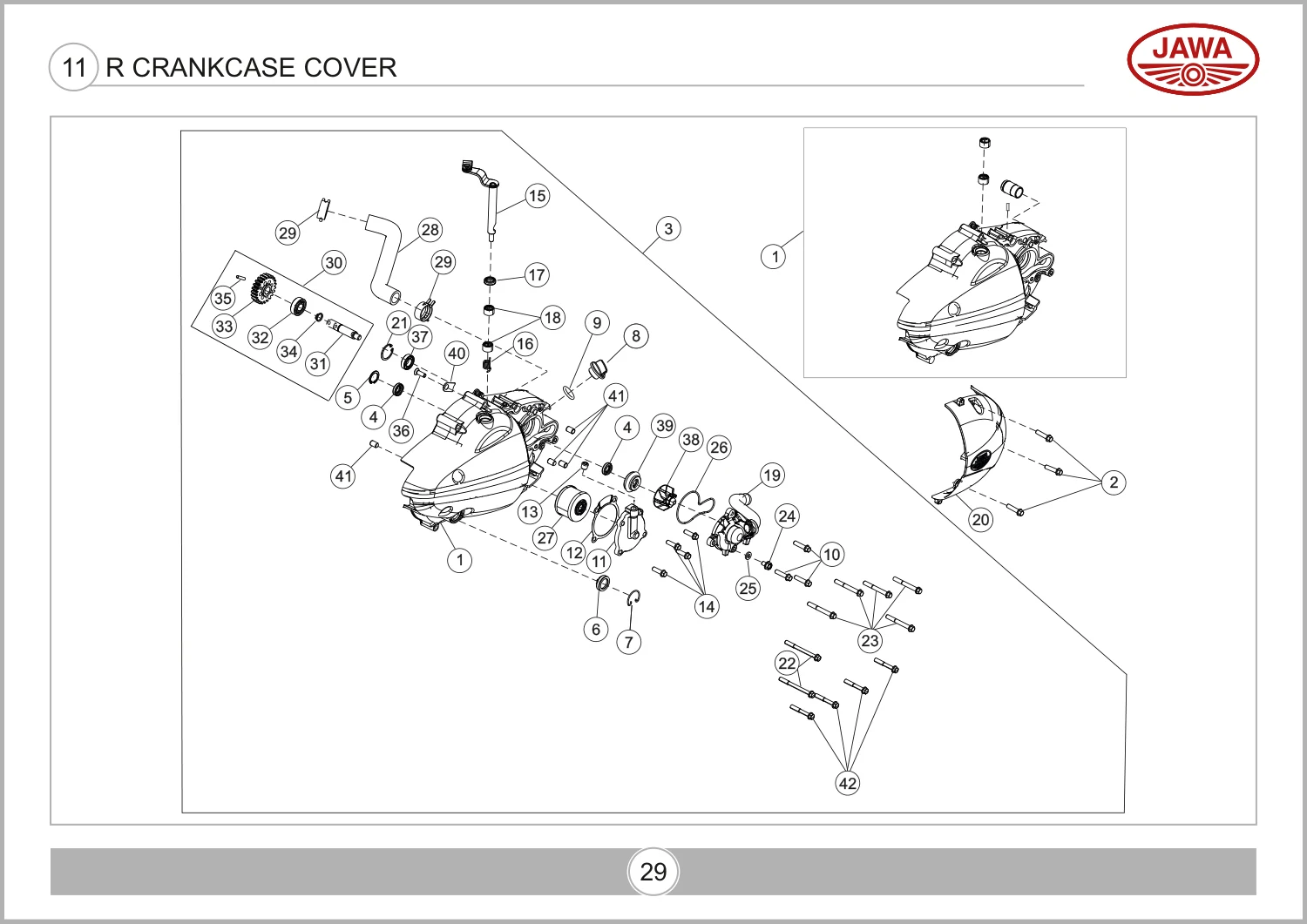

R Crankcase Cover
Page 27 · 30 parts
Assembly 11
R Crankcase Cover
Page 29 · 12 parts
Assembly 12
Crankshaft And Piston
Page 31 · 20 parts
Assembly 13

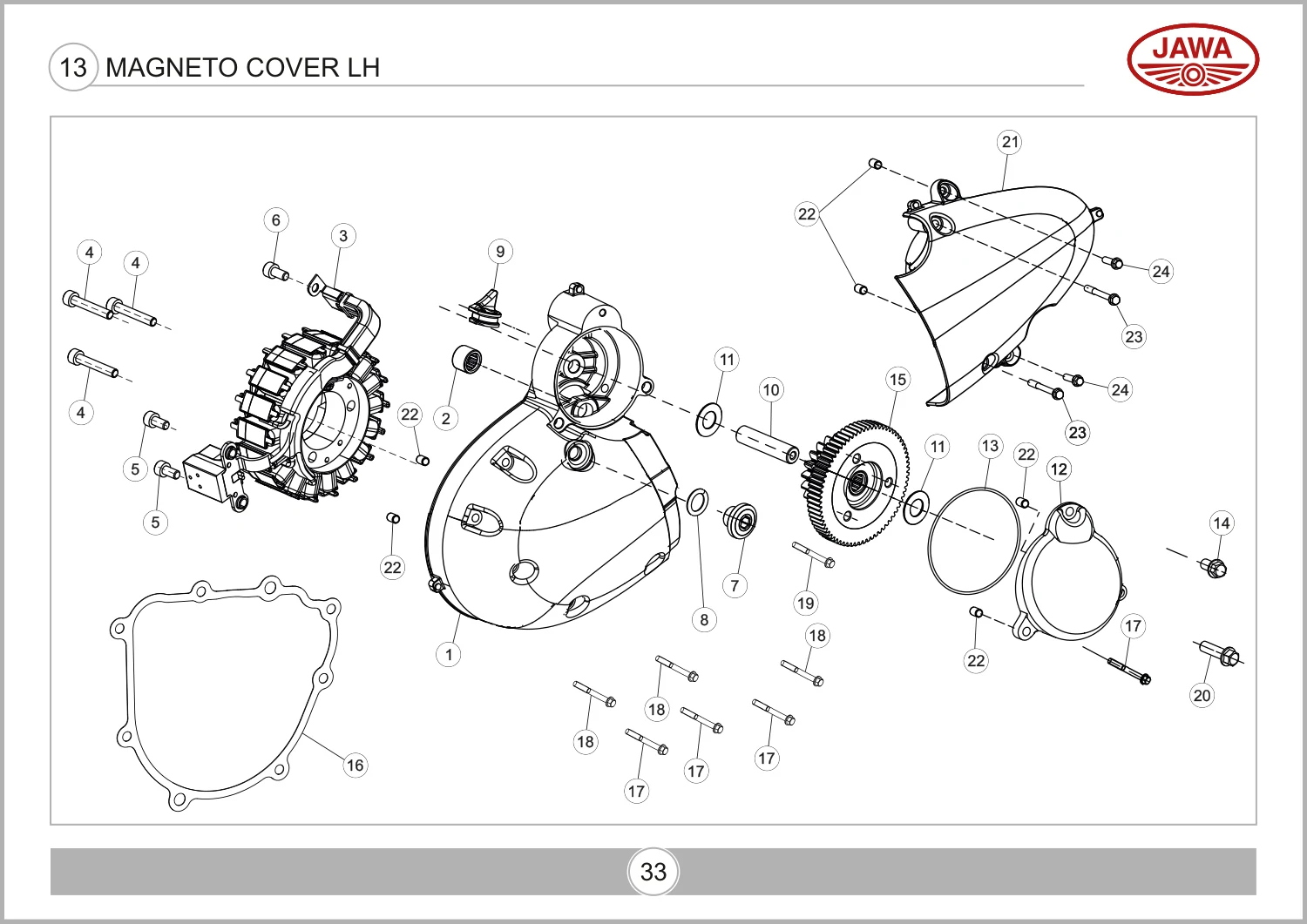

Magneto Cover LH
Page 33 · 25 parts
Assembly 14
A&S - Clutch Assembly
Page 35 · 24 parts
Assembly 15

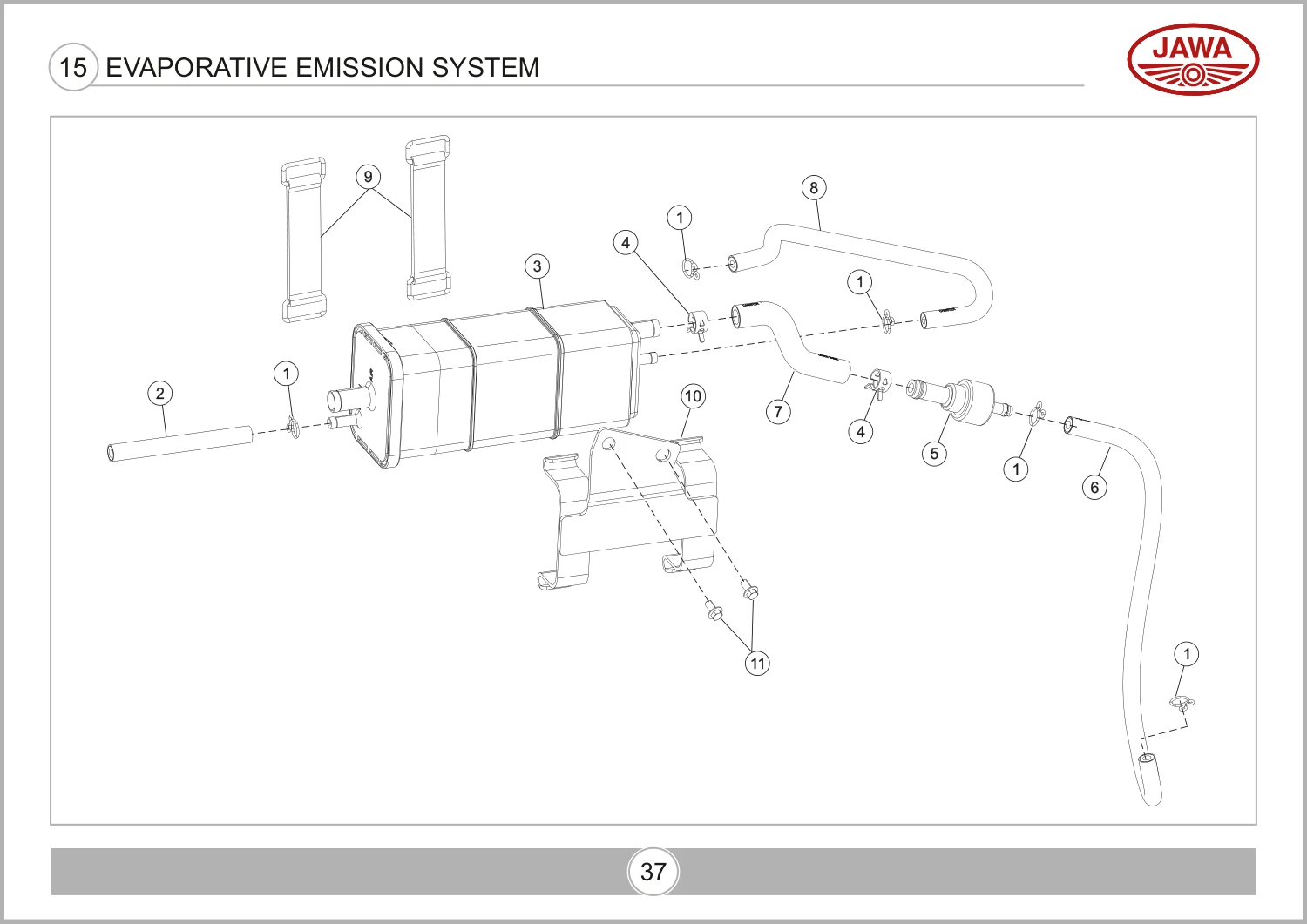

Evaporative Emission System
Page 37 · 11 parts

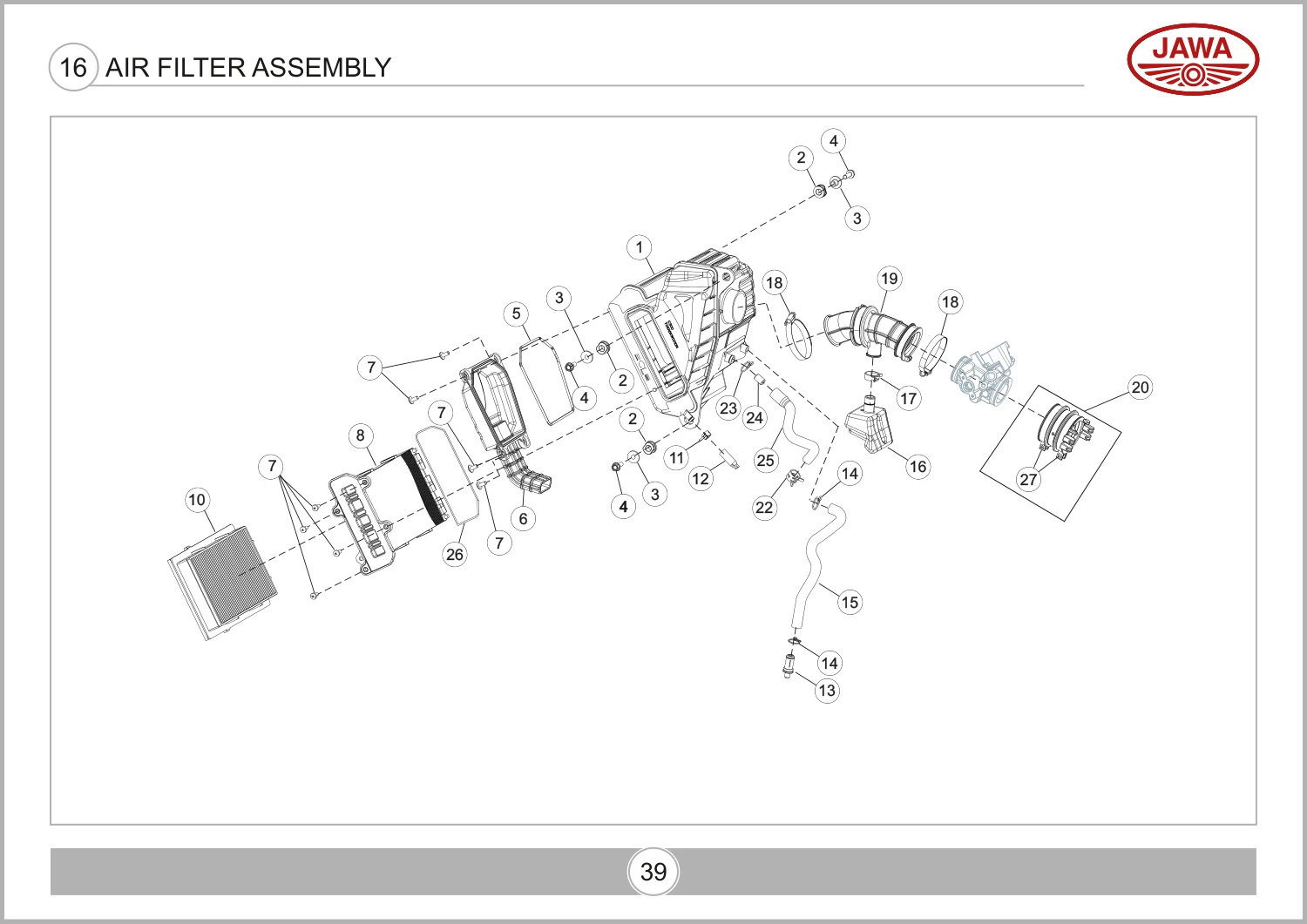

Assembly 16
Air Filter Assembly
Page 39 · 27 parts
Assembly 17
Brake System - Front
Page 41 · 30 parts
Assembly 18

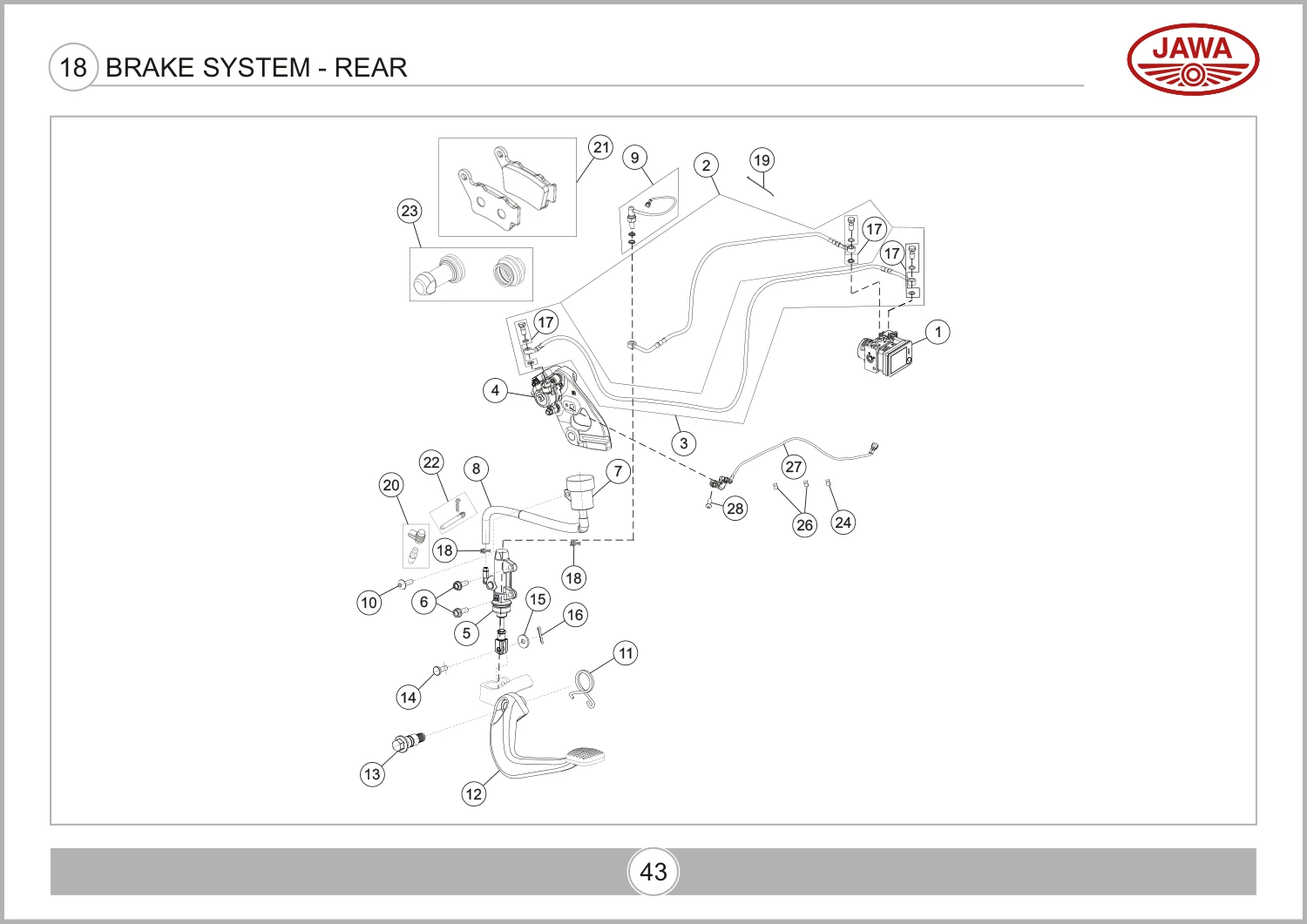

Brake System - Rear
Page 43 · 27 parts
Assembly 19
Footrest Assembly LH & RH
Page 45 · 27 parts
Assembly 20

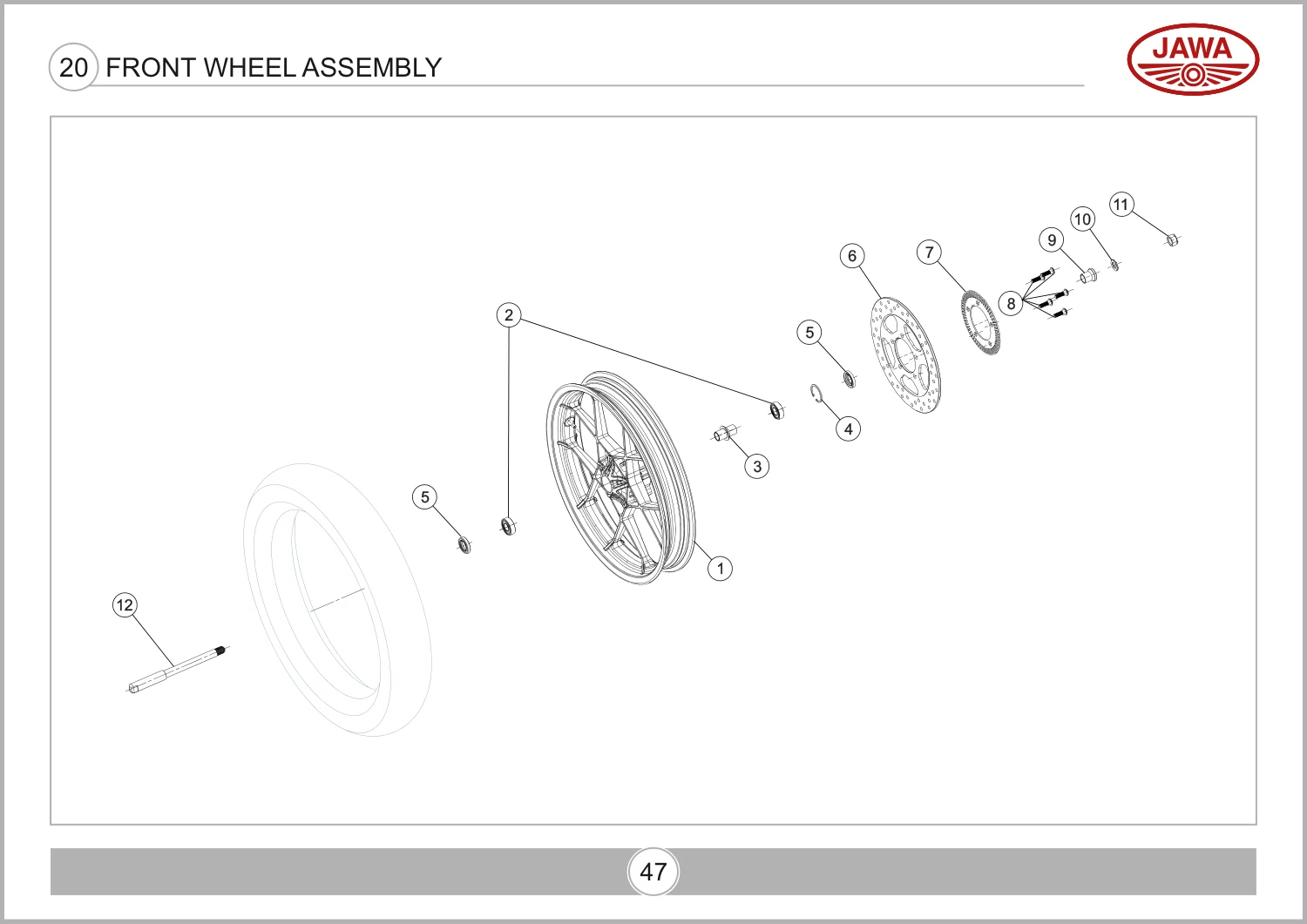

Front Wheel Assembly
Page 47 · 12 parts
Assembly 21

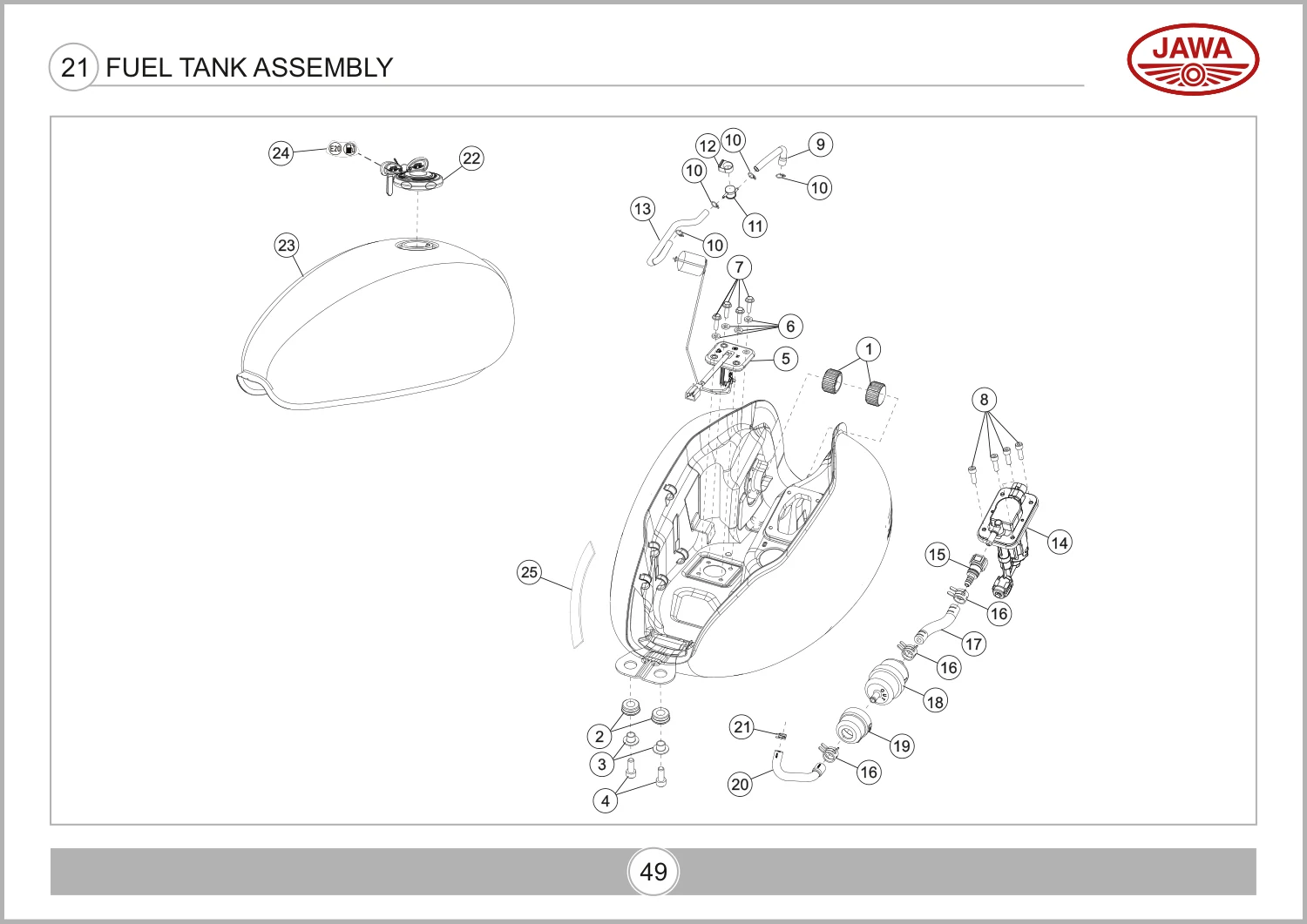

Fuel Tank Assembly
Page 49 · 28 parts
Assembly 22
Front Fender Assembly
Page 51 · 15 parts
Assembly 23

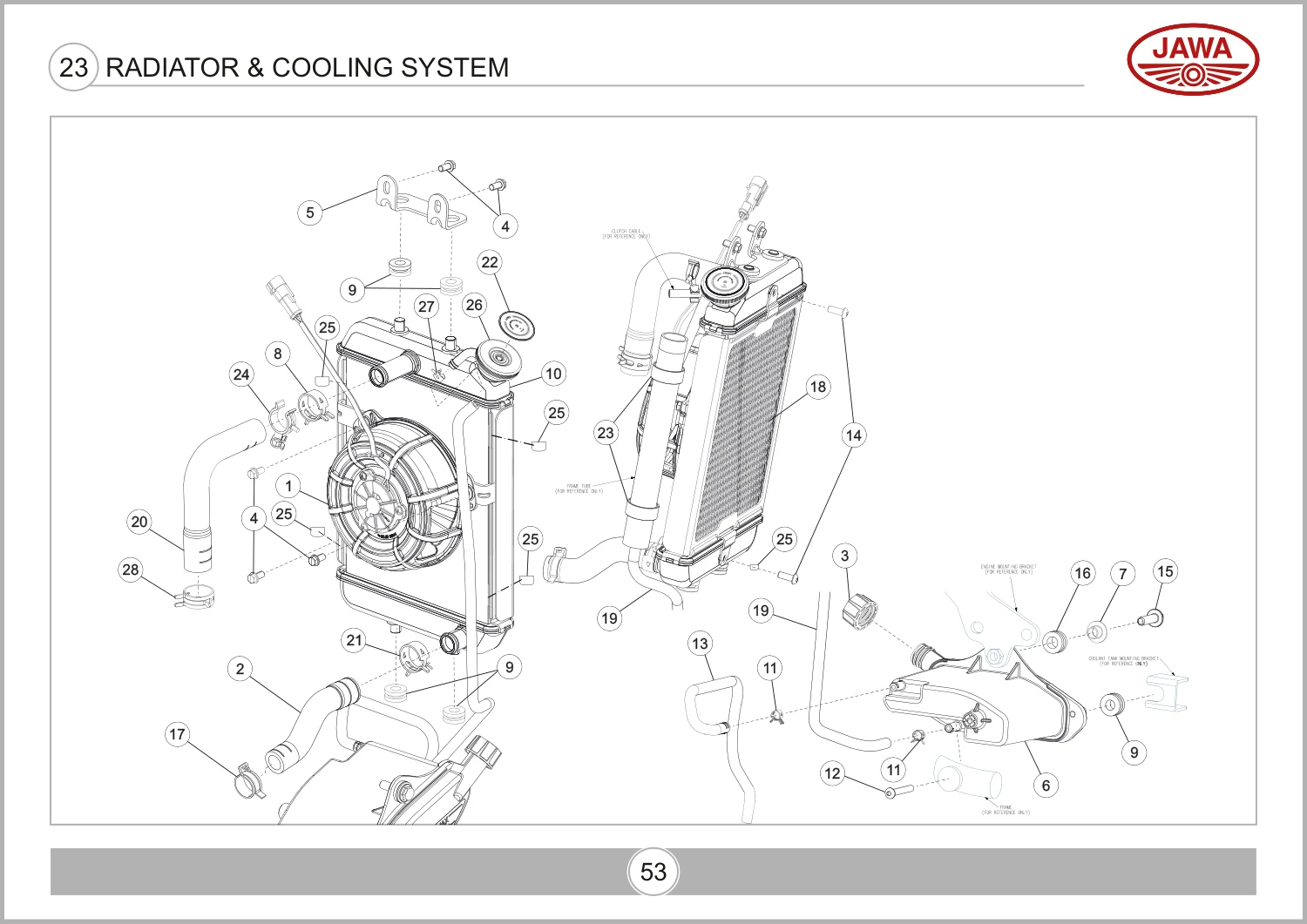

Radiator & Cooling System
Page 53 · 28 parts
Assembly 24
Rear Fender Assembly
Page 55 · 26 parts

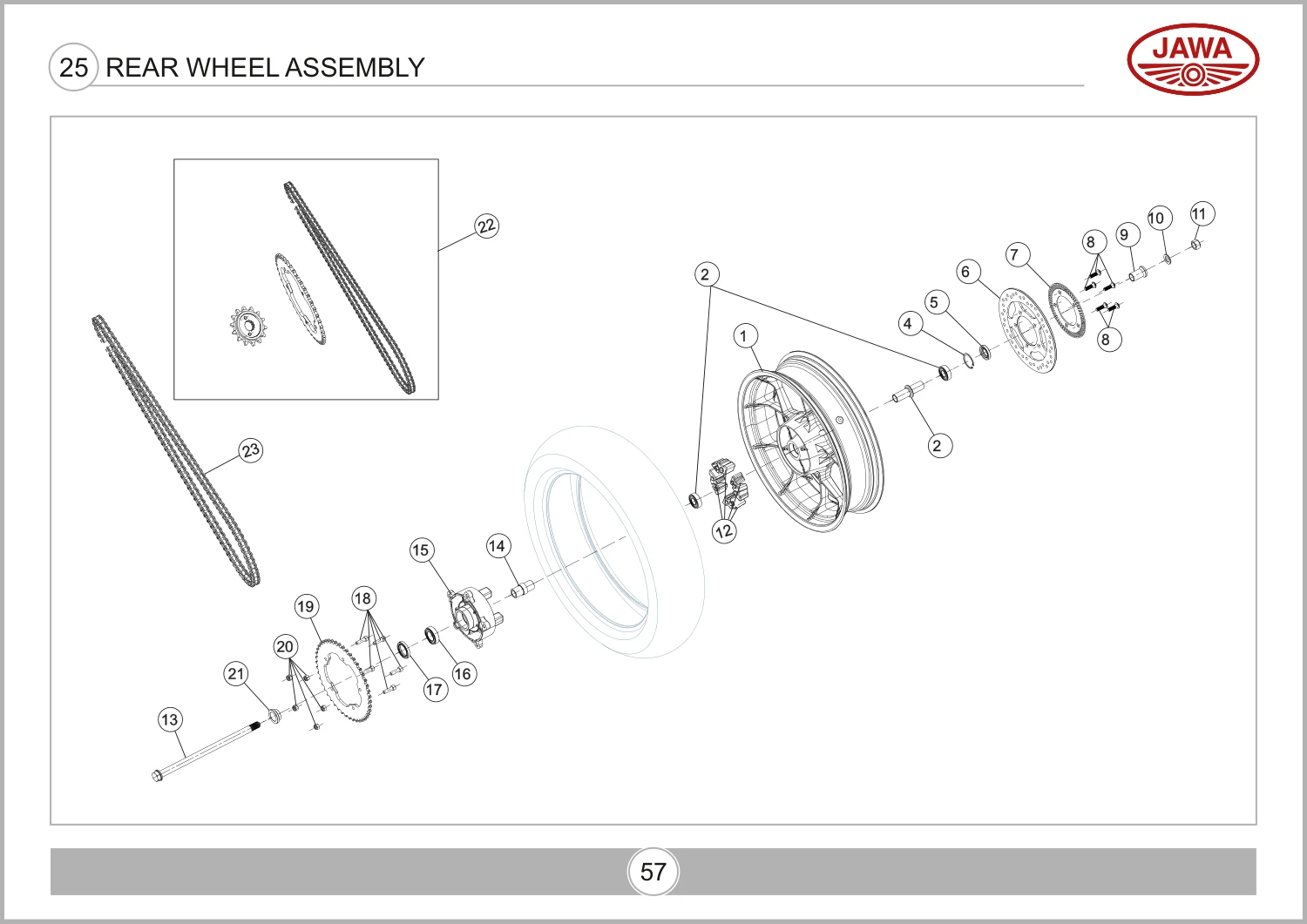

Assembly 25
Rear Wheel Assembly
Page 57 · 23 parts
Assembly 26

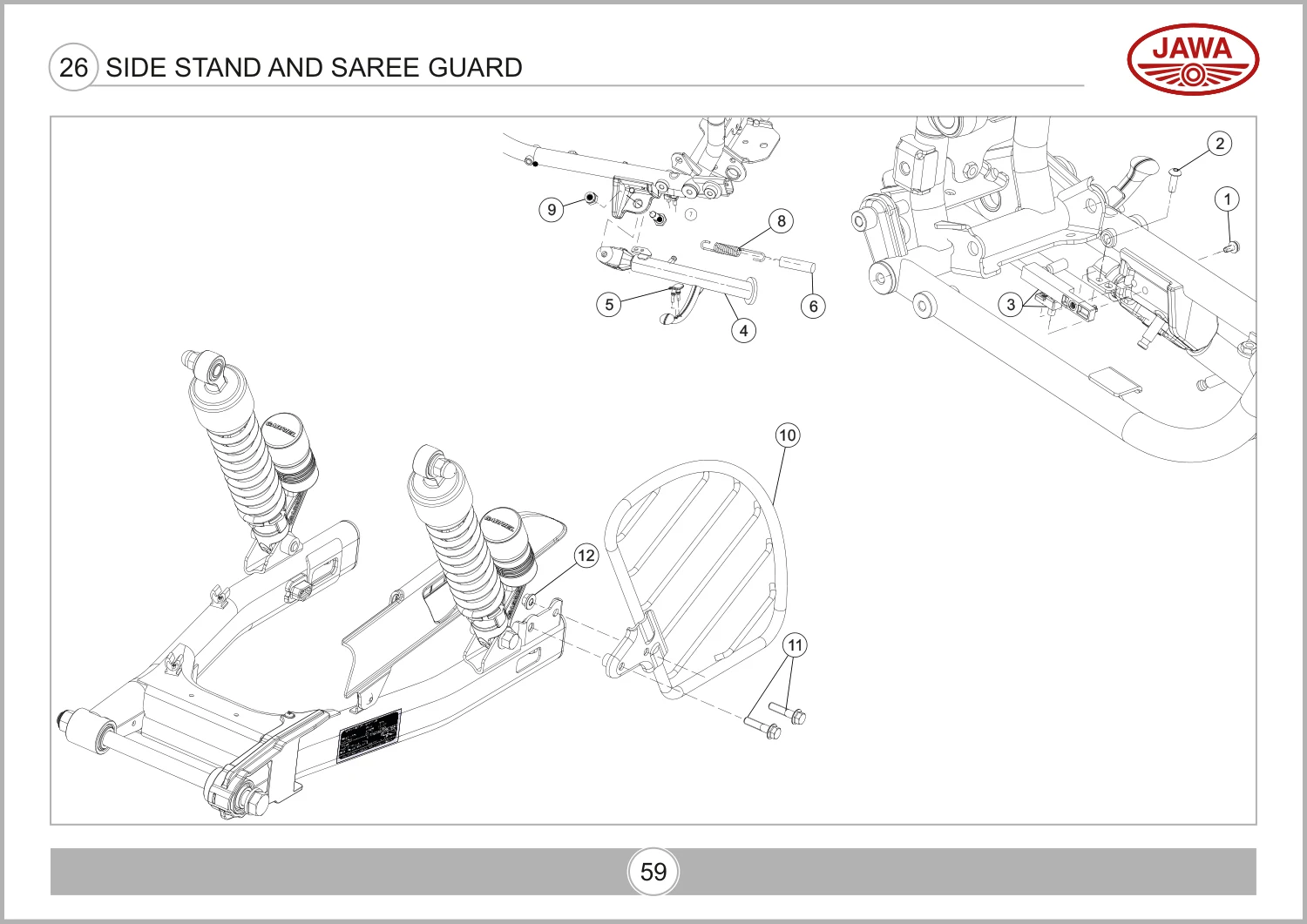

Side Stand And Saree Guard
Page 59 · 12 parts
Assembly 27

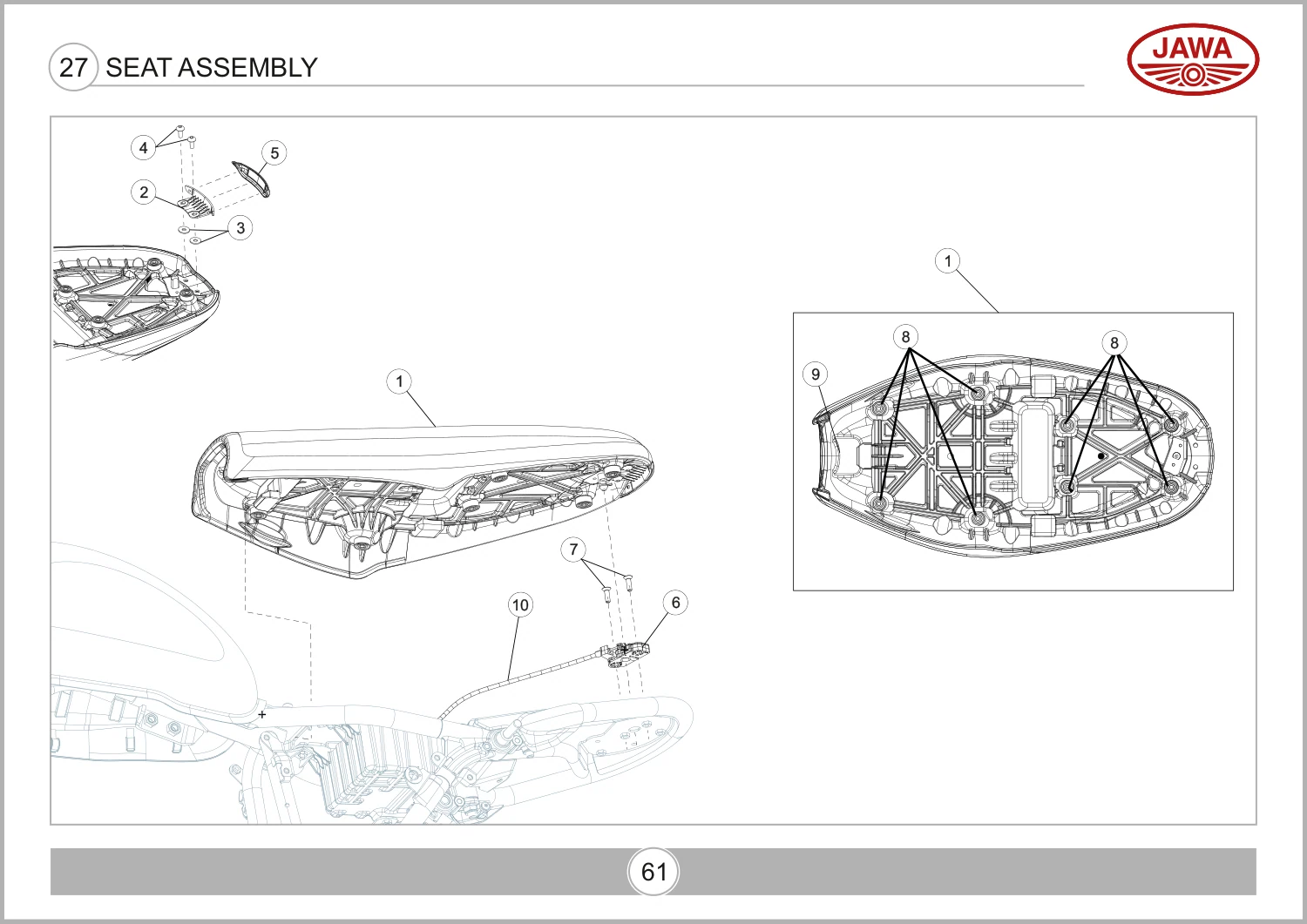

Seat Assembly
Page 61 · 10 parts
Assembly 28

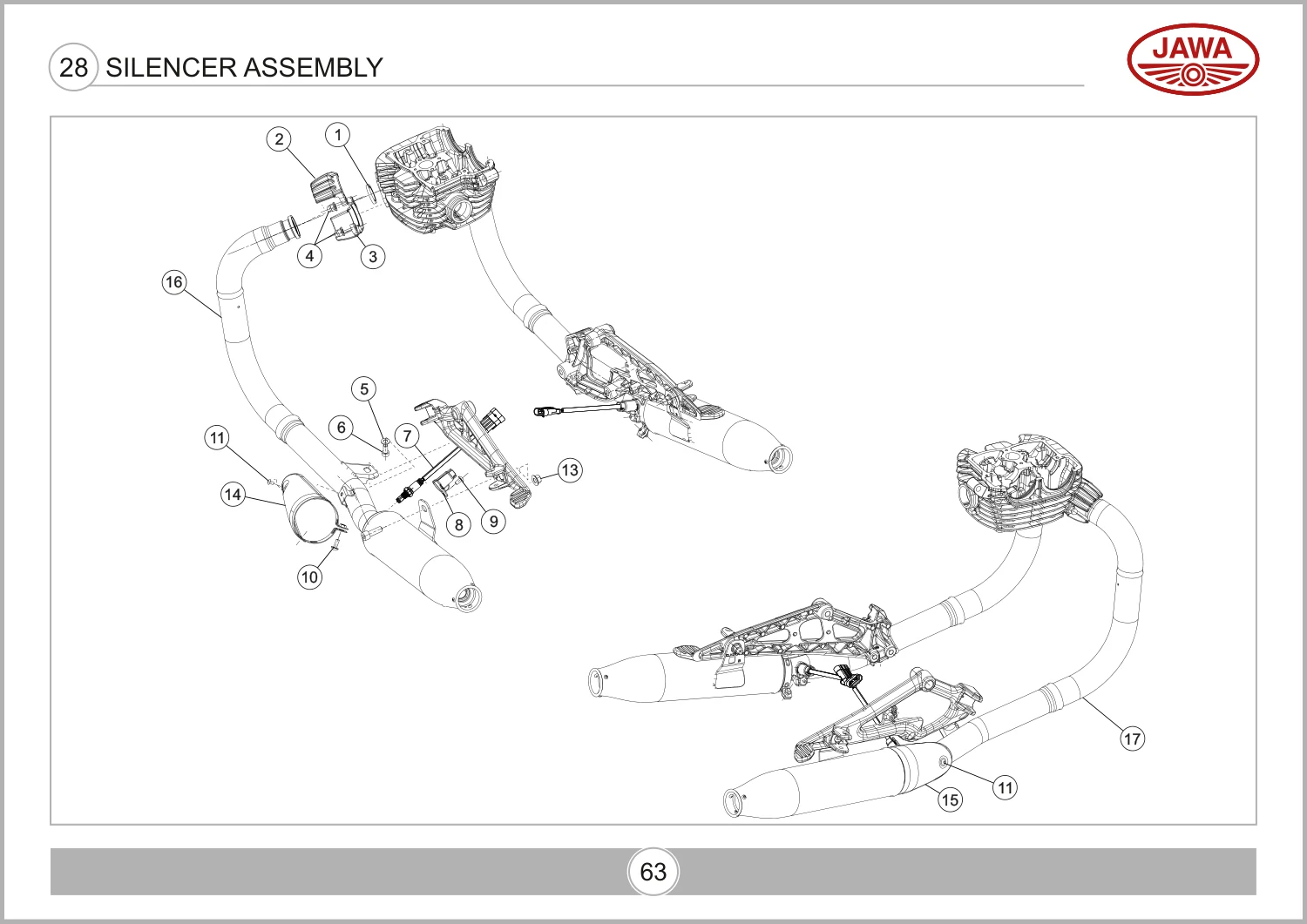

Silencer Assembly
Page 63 · 17 parts
Assembly 29
Steering
Page 65 · 12 parts
Assembly 30
Front Fork Assembly
Page 67 · 22 parts
Assembly 31
Front Fork Mountings
Page 69 · 22 parts

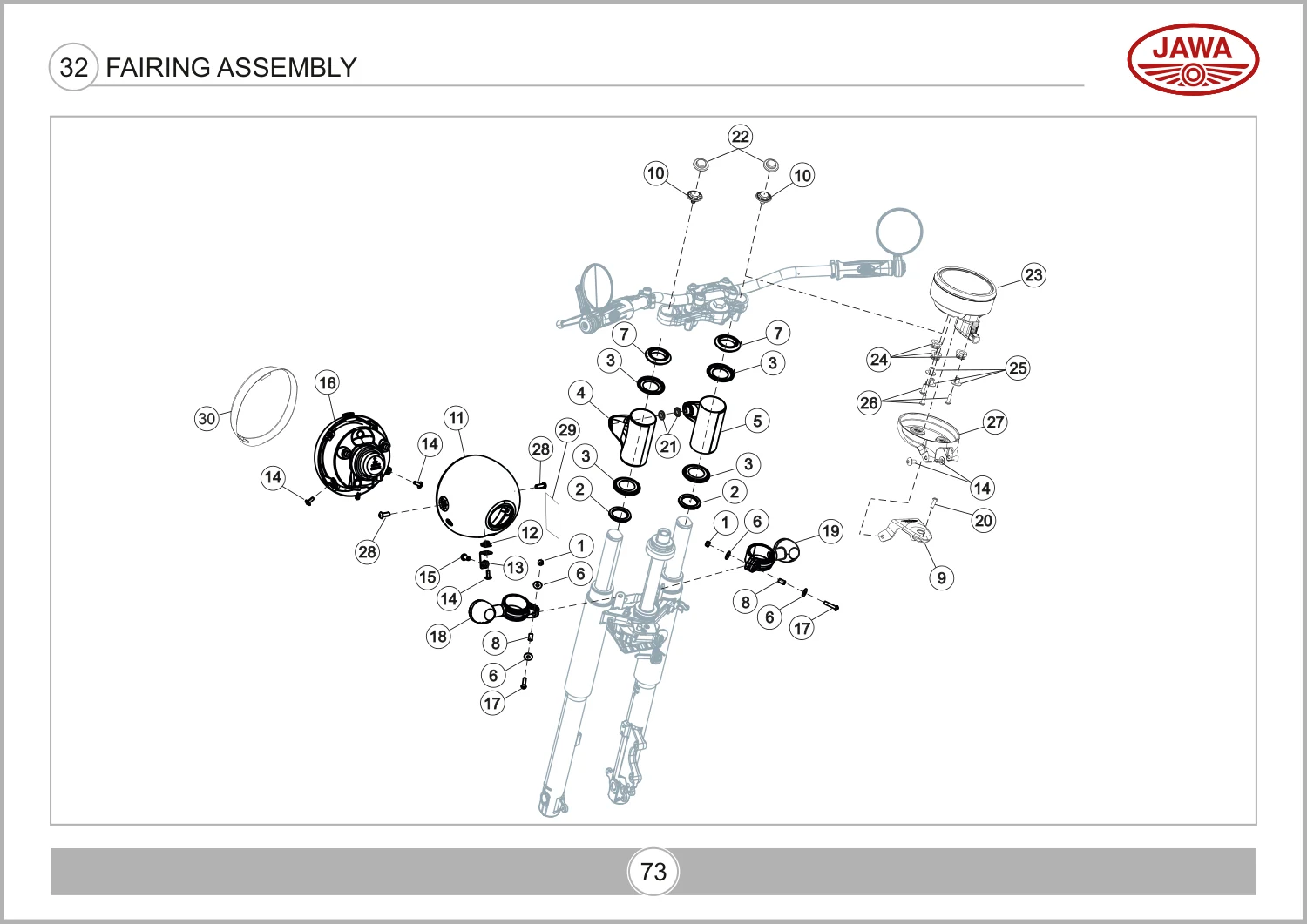

Assembly 32
Fairing Assembly
Page 71 · 30 parts
Assembly 32
Fairing Assembly
Page 73 · 4 parts

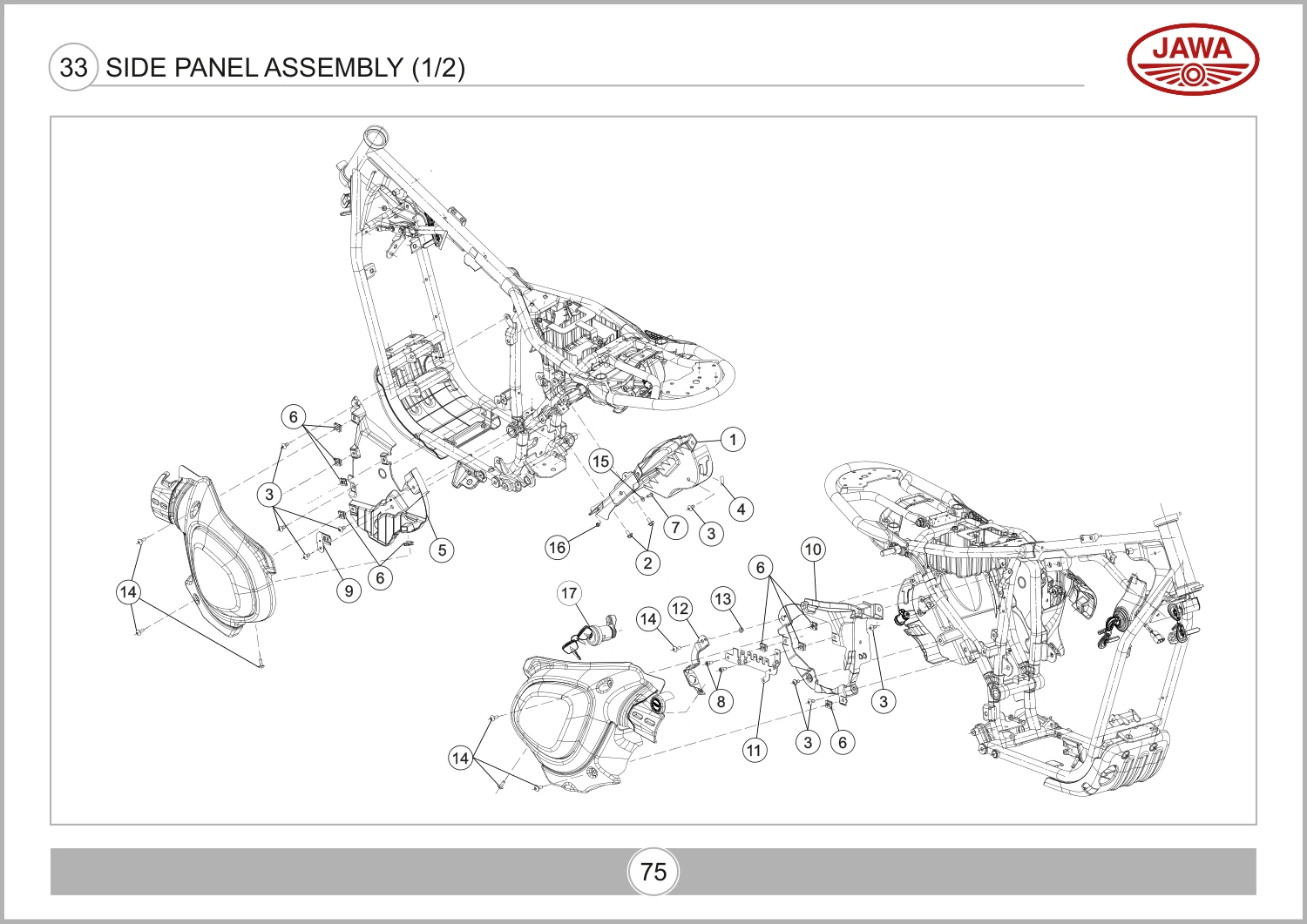

Assembly 33
Side Panel Assembly (1/2)
Page 75 · 17 parts
Assembly 34

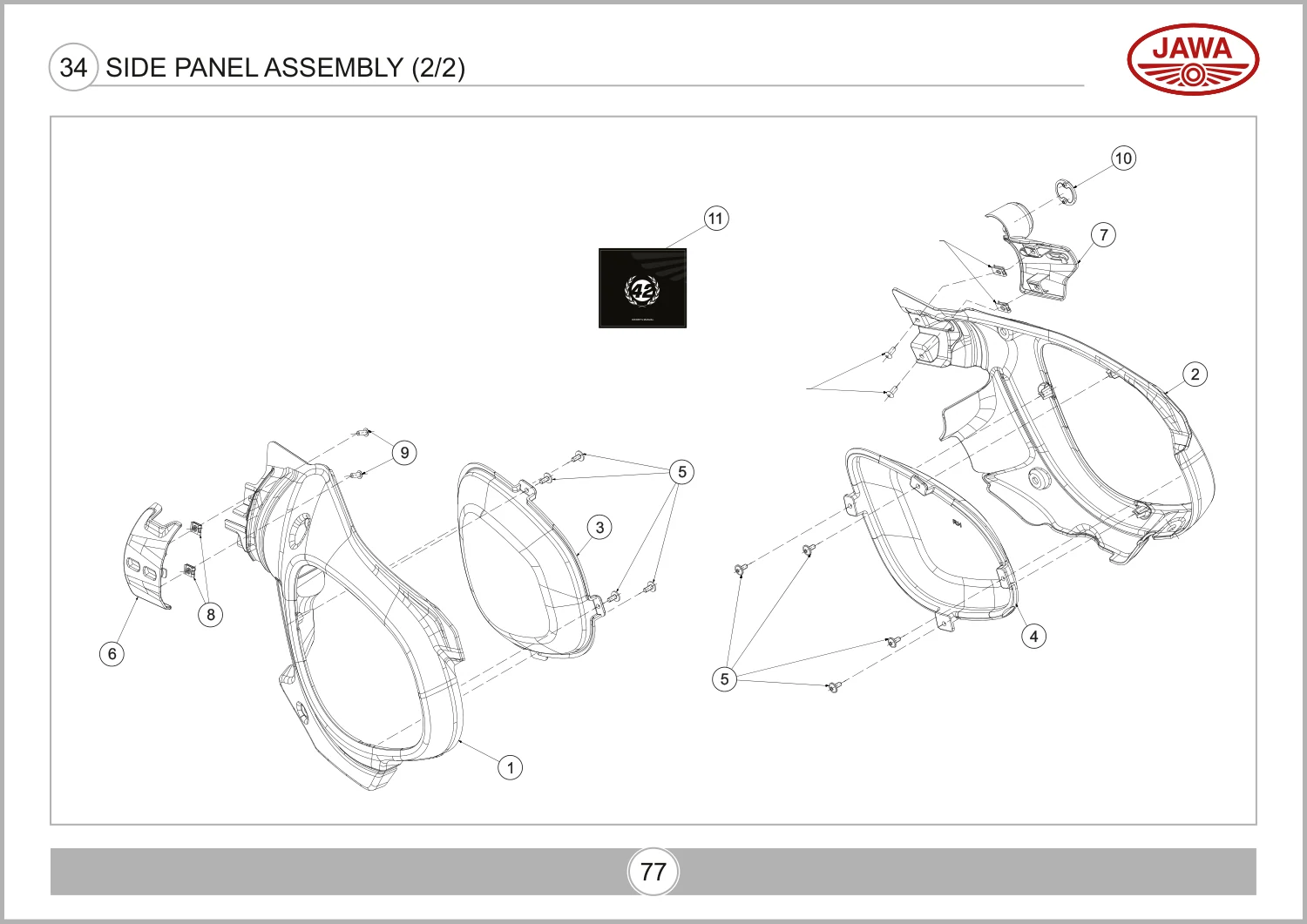

Side Panel Assembly (2/2)
Page 77 · 19 parts
Assembly 35

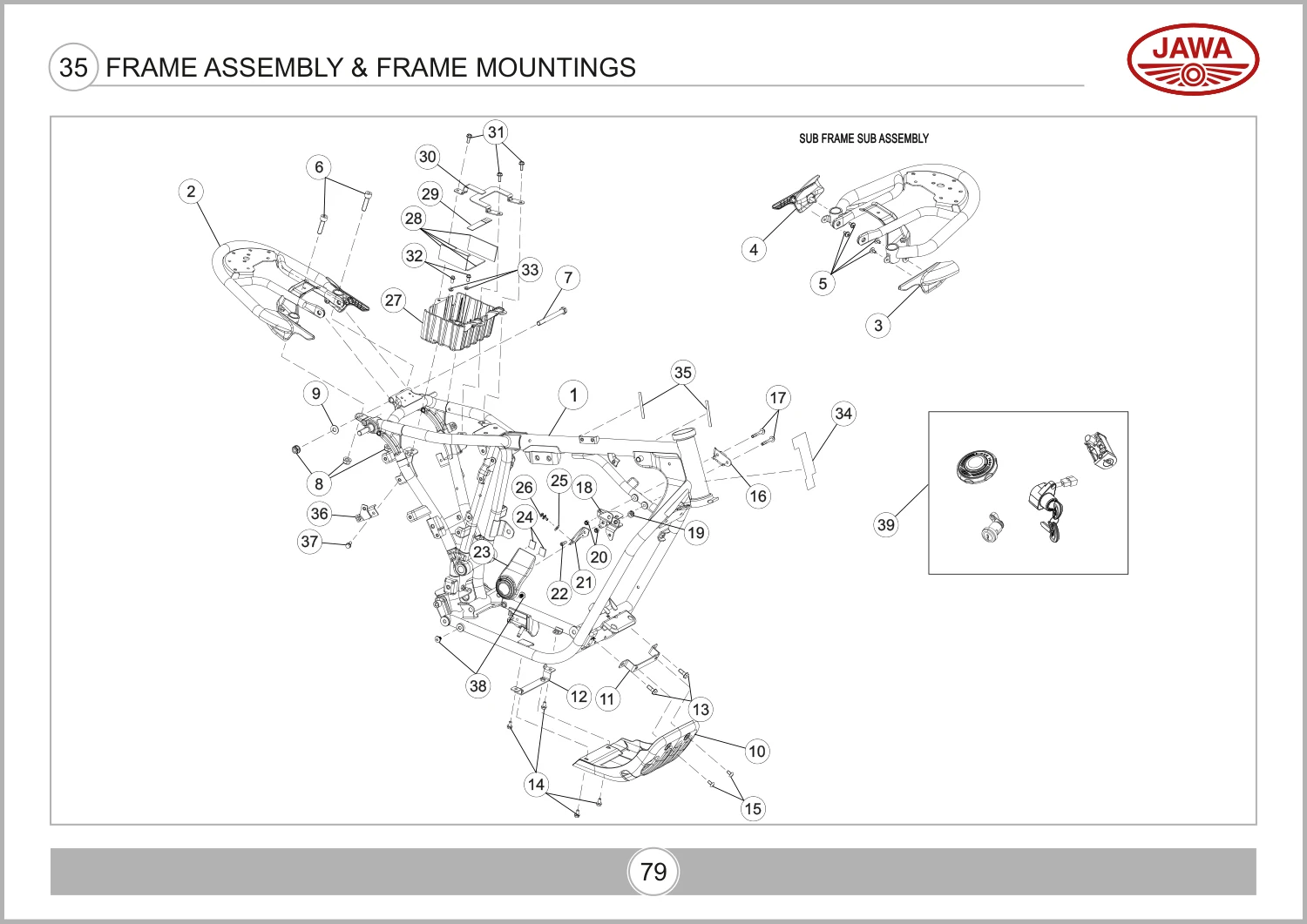

Frame Assembly & Frame Mountings
Page 79 · 30 parts
Assembly 35
Frame Assembly & Frame Mountings
Page 81 · 9 parts
Assembly 36
Engine Mounting System
Page 83 · 16 parts
Assembly 37
Handle Bar Assembly
Page 85 · 30 parts
Assembly 37

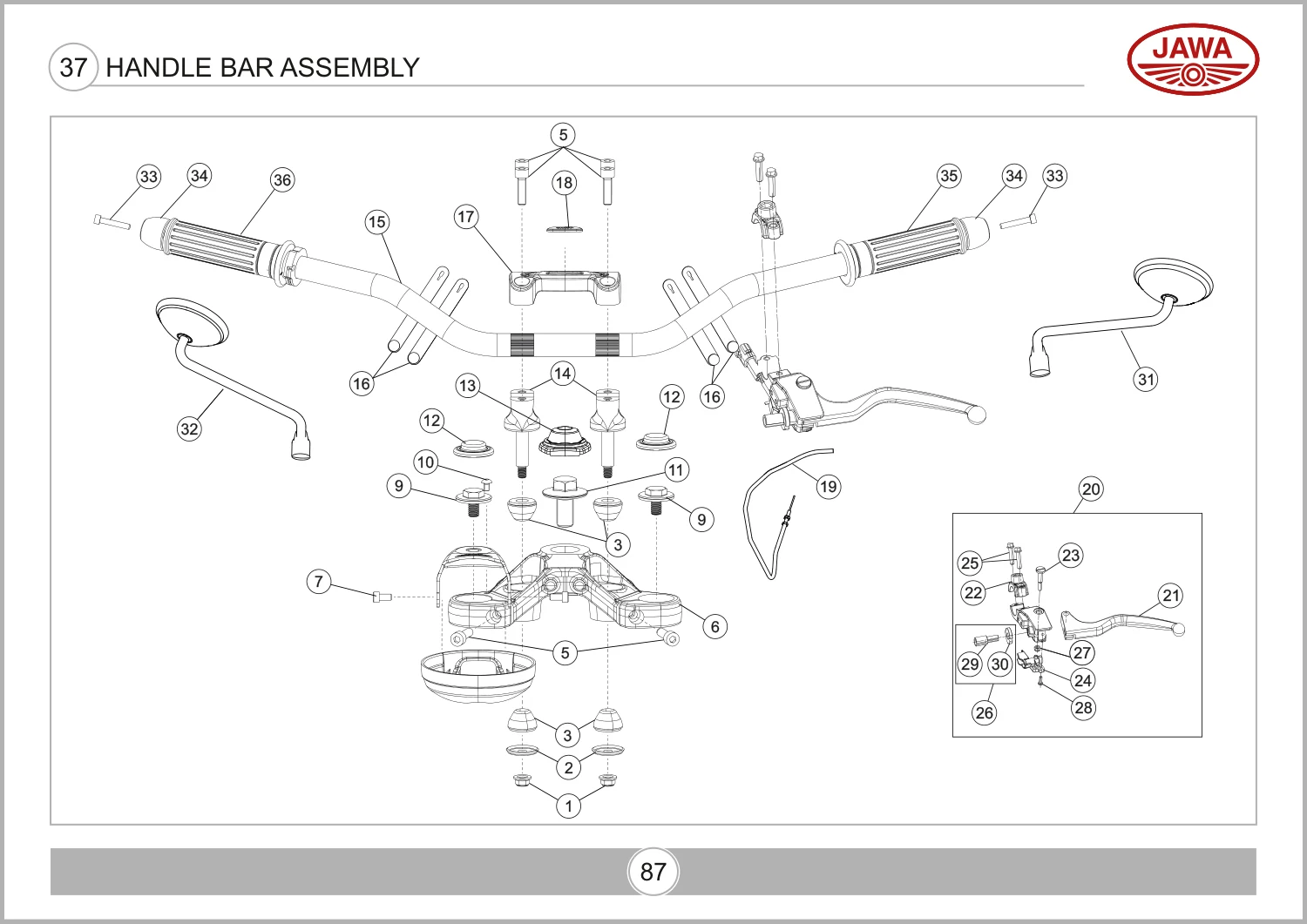

Handle Bar Assembly
Page 87 · 7 parts
Assembly 38
Swing Arm Assembly And Rear Shock Absorber
Page 89 · 25 parts

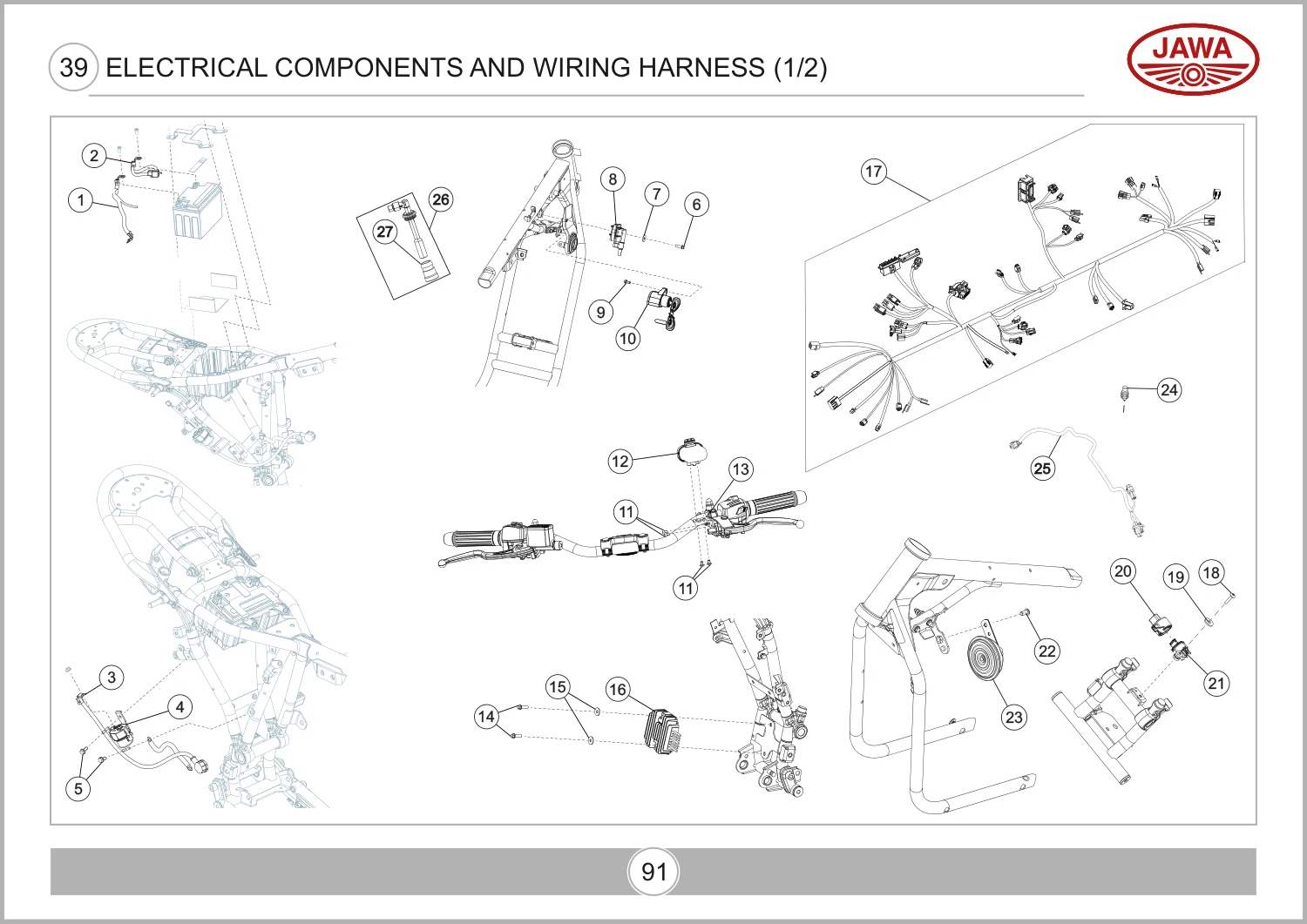

Assembly 39
Electrical Components And Wiring Harness (1/2)
Page 91 · 27 parts
Assembly 40
Electrical Components And Wiring Harness (2/2)
Page 93 · 26 parts

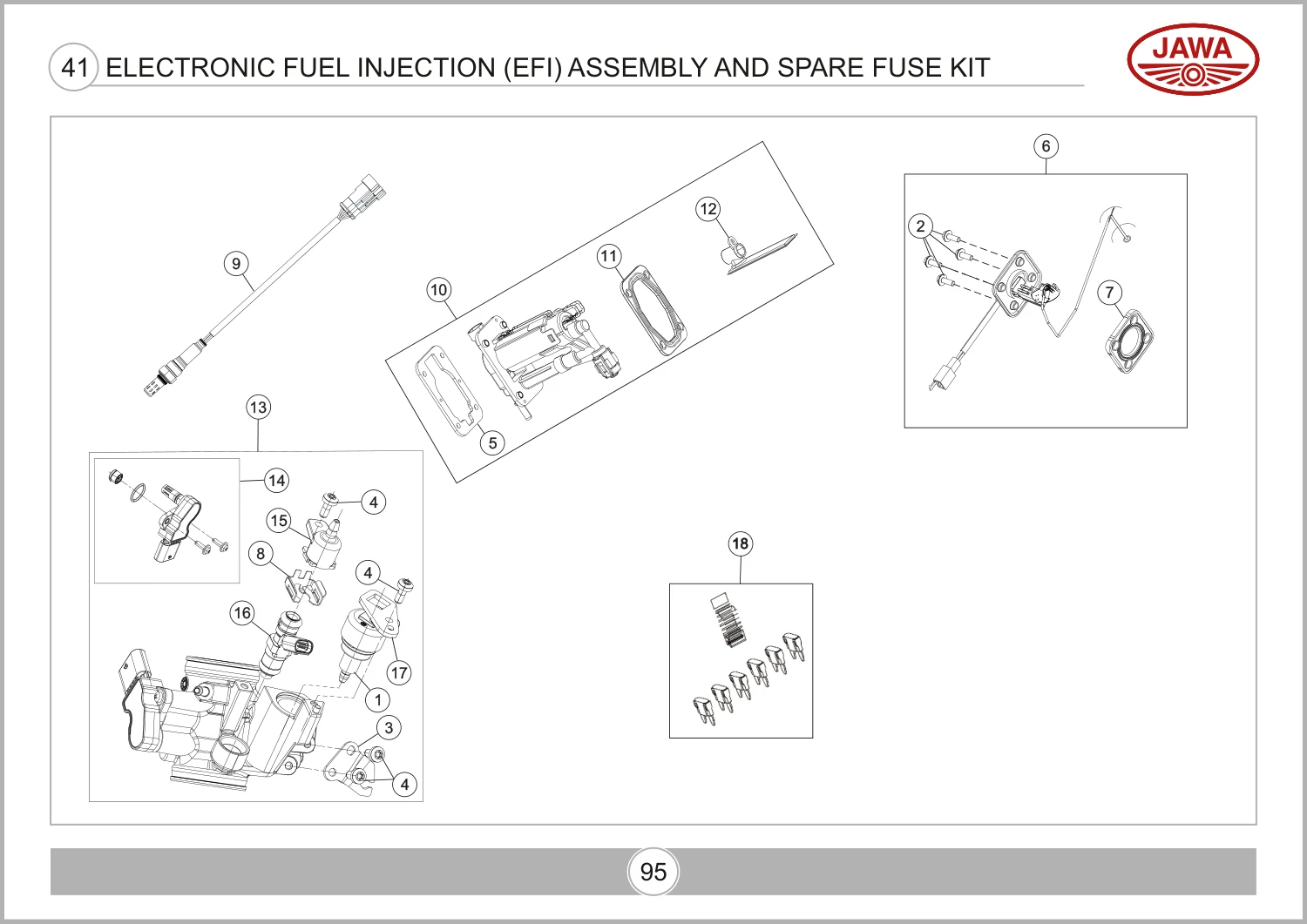

Assembly 41
Electronic Fuel Injection (EFI) Assembly And Spare Fuse Kit
Page 95 · 23 parts
Assembly 42
Decals - All Star Black
Page 97 · 13 parts
Assembly 43

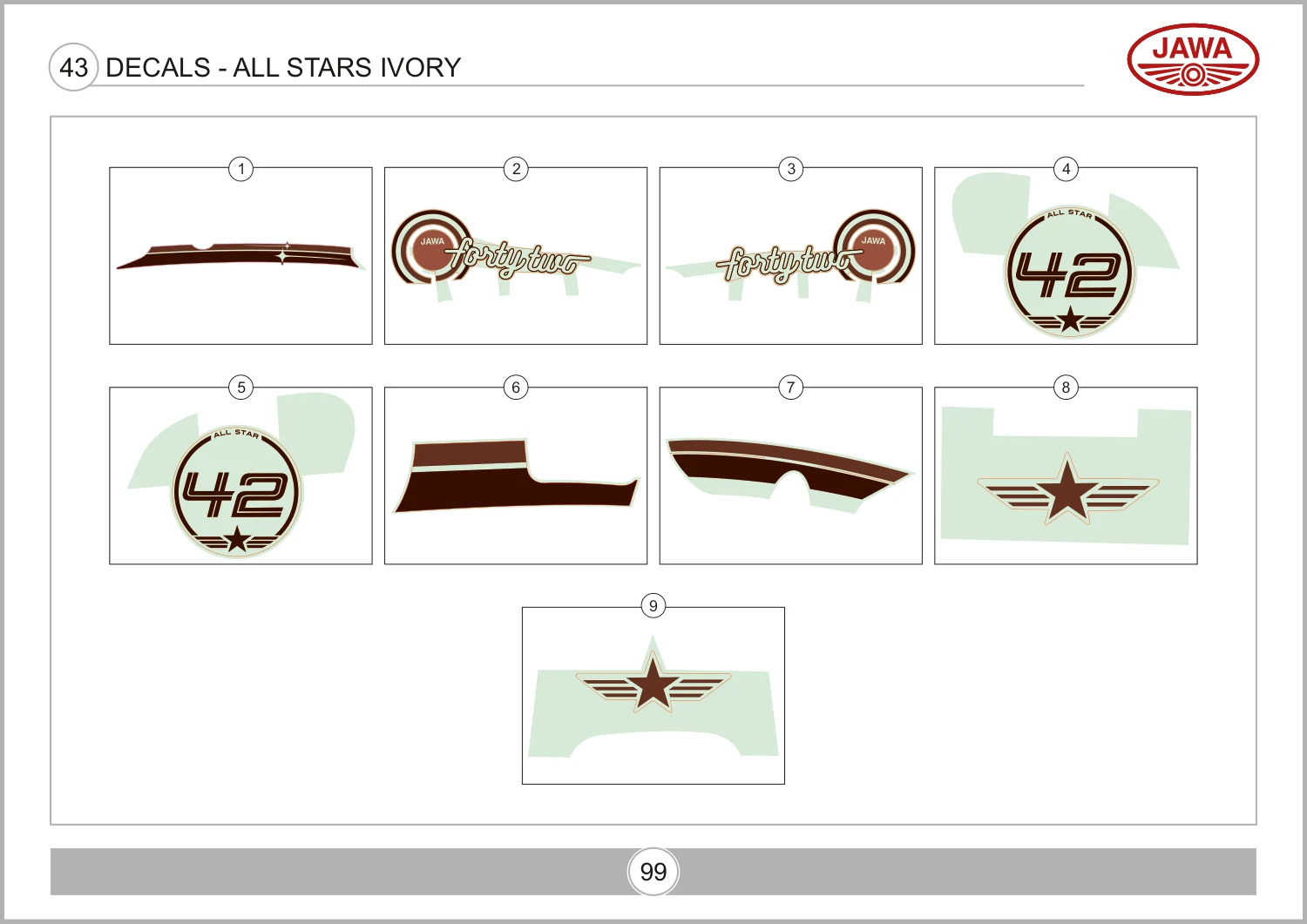

Decals - All Stars Ivory
Page 99 · 9 parts
Assembly 44

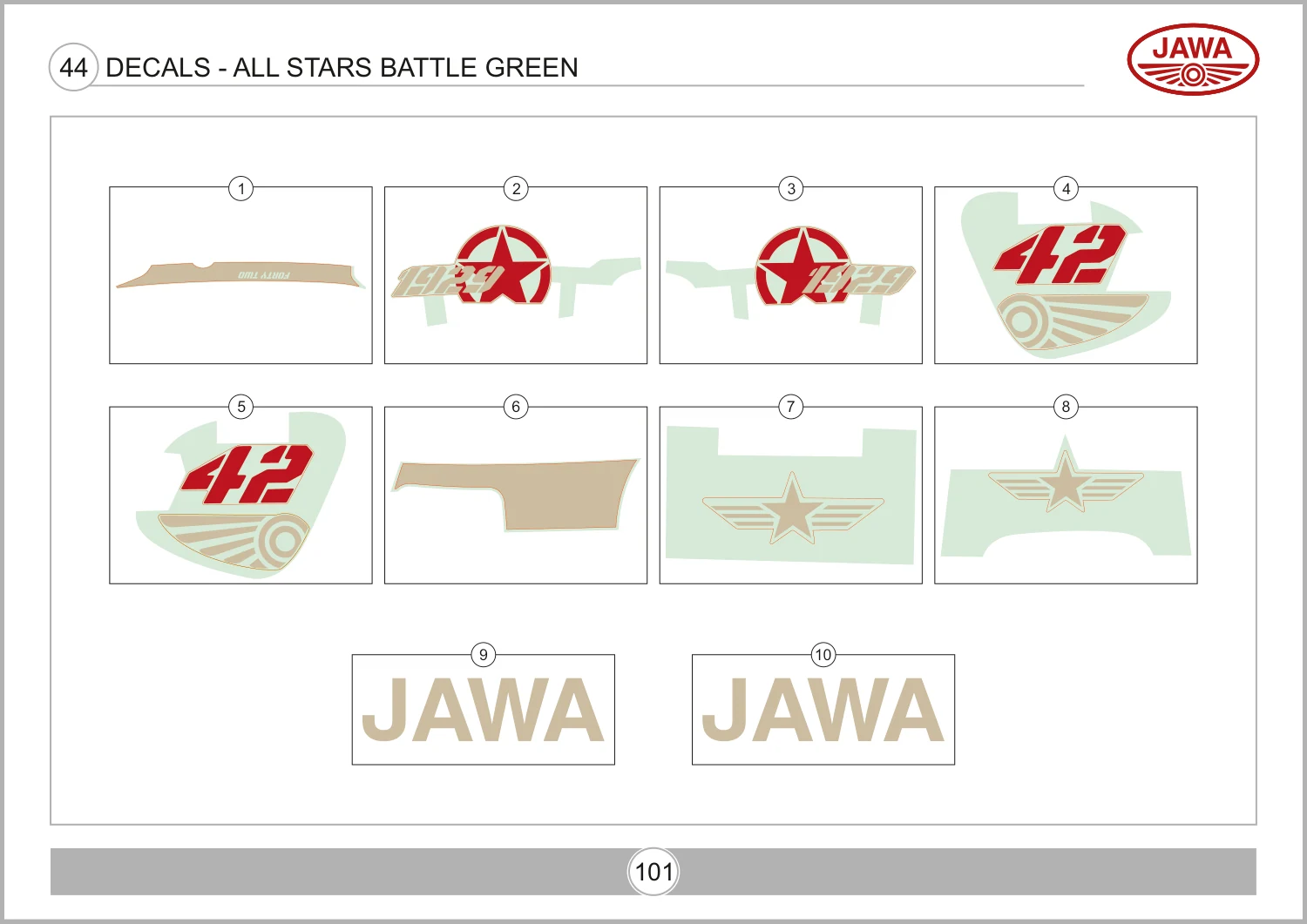

Decals - All Stars Battle Green
Page 101 · 10 parts
Assembly 45
Decals - All Star Rocky Beige
Page 103 · 10 parts
Assembly 46
Decals - All Stars Nebula Blue
Page 105 · 16 parts
Assembly 46
Common Decals
Page 107 · 5 partsNo matching assemblies. Try a broader name.
