Jawa 42 OG All Star · ASSEMBLY 21 · REV 01

Fuel Tank Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 OG All Star Fuel Tank Assembly exploded assembly diagram, catalogue page 49

Jawa 42 OG All Star · Rev 01 · p. 49Original parts list ↗

Parts in this drawing

28 entries

Ref.	Part name / number	Assembly qty.	Action
1	Damper Tank Front Mounting Dia. 41 MmT10000Y50200N	2	Enquiry ↗
2	Damper Fuel Tank Mounting RearT10000KW0140N	2	Enquiry ↗
3	Collar M8 Rear Side Cover MtgT13030KM0120N	2	Enquiry ↗
4	Socket Head Screw M8X20 (10.9 Grade)SP0308009	2	Enquiry ↗
5	Fuel Sensor Unit OBD-II Phase-2 (E20)T1501PJ10010N	1	Enquiry ↗
6	Washer Fuel Gauge Assembly OBD-II Phase-2 (E20)T10030J20010N	4	Enquiry ↗
7	Hex Flange Bolt M5X18SF0102046	4	Enquiry ↗
8	Hex Soc Cap Head Screw M5160.8SF0105067	4	Enquiry ↗
9	Hose Tank To Rollover Valve OBD-II Phase-2 (E20)T10000J20250N	1	Enquiry ↗
10	Clip Tube B895002-02080	4	Enquiry ↗
11	Roll Over ValveT10000KW0040N	1	Enquiry ↗
12	Roll Over Valve GrommetT10000KW0170N	1	Enquiry ↗
13	Hose Rollover Valve To Canister OBD-II Phase-2 (E20)T10000J20260N	1	Enquiry ↗
14	Fuel Pump Plastic Jawa 42 Ug (OBD II)T10050J20010N	1	Enquiry ↗
15	Quick Fuel Connector 2T10050KE0050N	1	Enquiry ↗
16	Spring Band Clamp Dia 14T10050KE0030N	3	Enquiry ↗
17	Fuel Tube Outlet OBD-II Phase-2 (E20)T10000J20230N	1	Enquiry ↗
18	Fuel FilterT10000KW0340N	1	Enquiry ↗
19	Support FilterMH00900000800	1	Enquiry ↗
20	Fuel Tube Inlet OBD-II Phase-2 (E20)T10000J20240N	1	Enquiry ↗
21	Spring Band Clamp Dia 11T10050KE0100N	1	Enquiry ↗
22	Fuel Tank Cap With Key (E20) OBD-II Phase-2 (E20) Jawa 42 (Ug 2.2/Dual Disc/Og)T10000J10550N	1	Enquiry ↗
23	Fuel Tank Assembly Black MatteT10010J10200E	1	Enquiry ↗
23.1	Fuel Tank Assembly Ivory MatteT10010J10200B	1	Enquiry ↗
23.2	Fuel Tank Assembly Miltary Green MatteT10010J10200G	1	Enquiry ↗
23.3	Fuel Tank Assembly Rocky Beige GlossT10010J10200L	1	Enquiry ↗
23.4	Fuel Tank Assy Nebula Blue GlossT10010J10200C	1	Enquiry ↗
24	Sticker E20 Fuel OBD-II Phase-2 (E20)T10000J10540N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

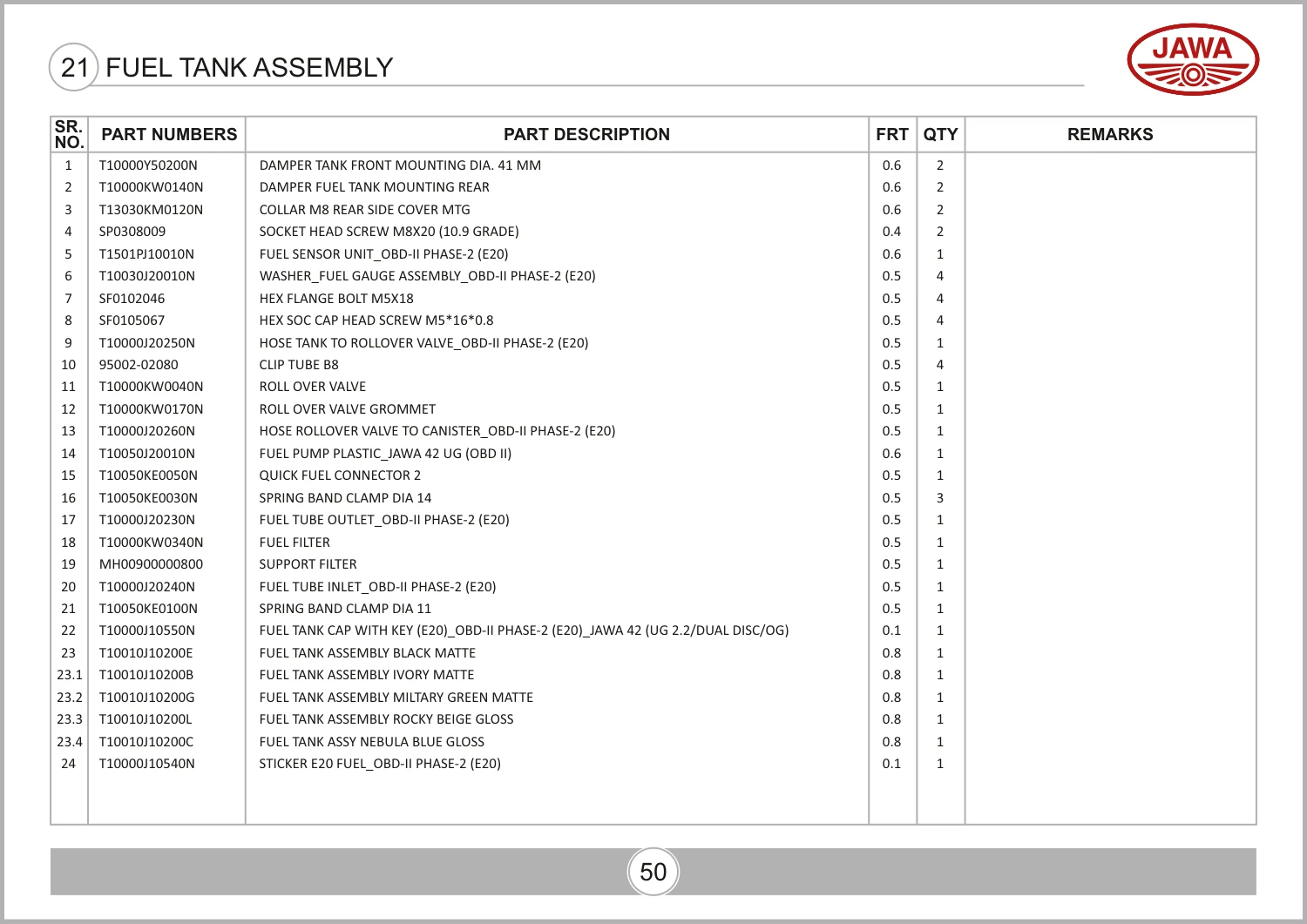

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 60, parts table page 61. View original parts table ↗
