Jawa 42 OG All Star · ASSEMBLY 20 · REV 01
Front Wheel Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 OG All Star · Rev 01 · p. 47Original parts list ↗
Parts in this drawing
12 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Alloy Wheel Front Mt 2.5X18T0601AJ10040N | 1 | |
| 2 | Wheel Bearing 6203 (17X40X12)T0601DKW0021N | 2 | |
| 3 | Spacer Assy Inner, Front WheelT0601CKW0050N | 1 | |
| 4 | Circlip Int-Lug 40X1.75XphSF0602007 | 1 | |
| 5 | Front Dust Seal (A22X40X7)T0601EKW0021N | 2 | |
| 6 | Front Disc RH D 280T0601AKW0020N | 1 | |
| 7 | Toner Wheel FrontT0602LKE0010N | 1 | |
| 8 | Screw Special M8X1.25X28Xa2-70SF0200097 | 5 | |
| 9 | External Spacer RH FrontT0601CKW0020N | 1 | |
| 10 | Washer 16 MmTSF0400010 | 1 | |
| 11 | Self Lock Nut M16TSF0318003 | 1 | |
| 12 | Axle, Front Wheel EuT0601GKW0040N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

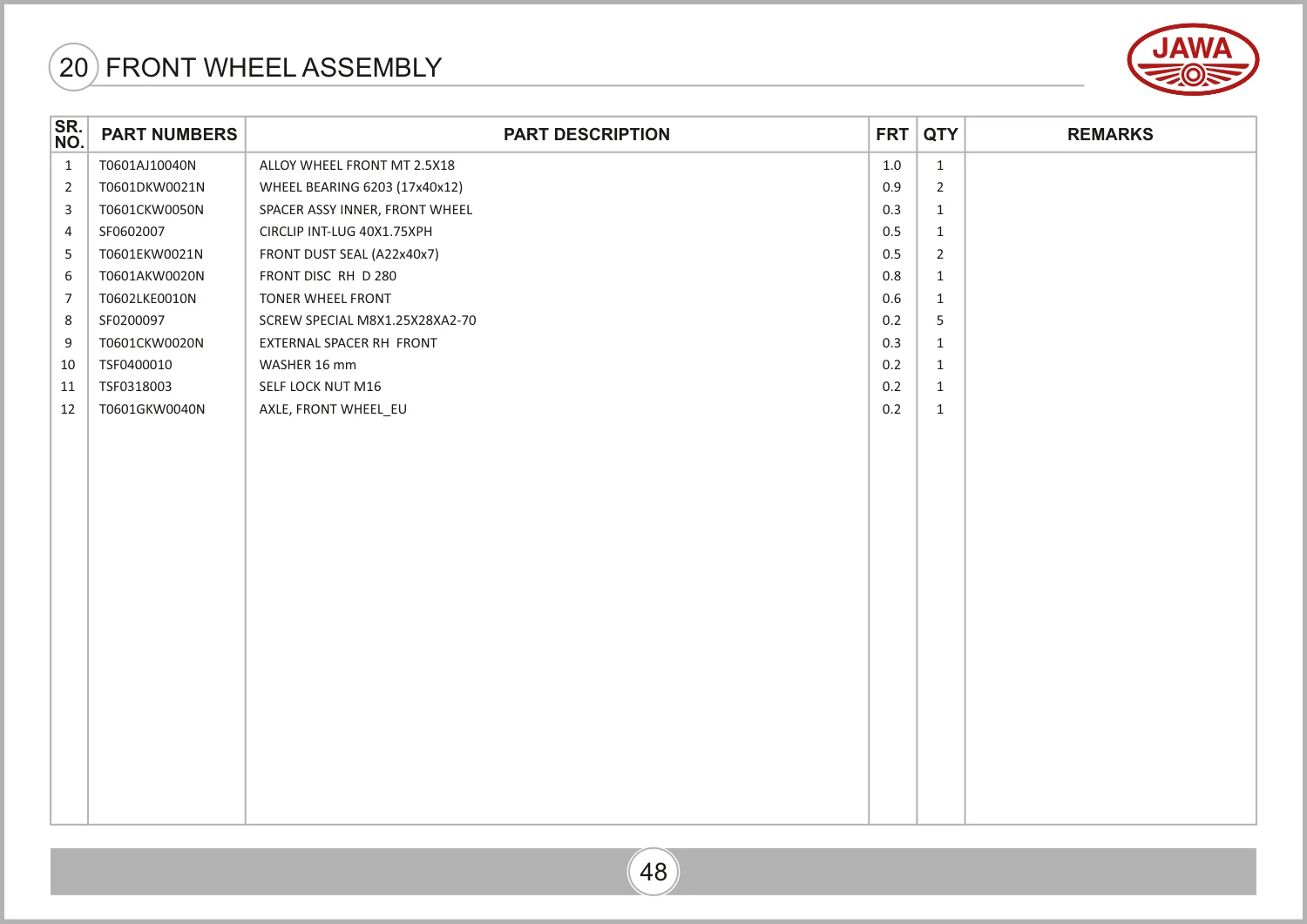

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 58, parts table page 59. View original parts table ↗
