Jawa 42 OG All Star · ASSEMBLY 19 · REV 01

Footrest Assembly LH & RH

Select a diagram reference or a row below to enquire about the exact part.

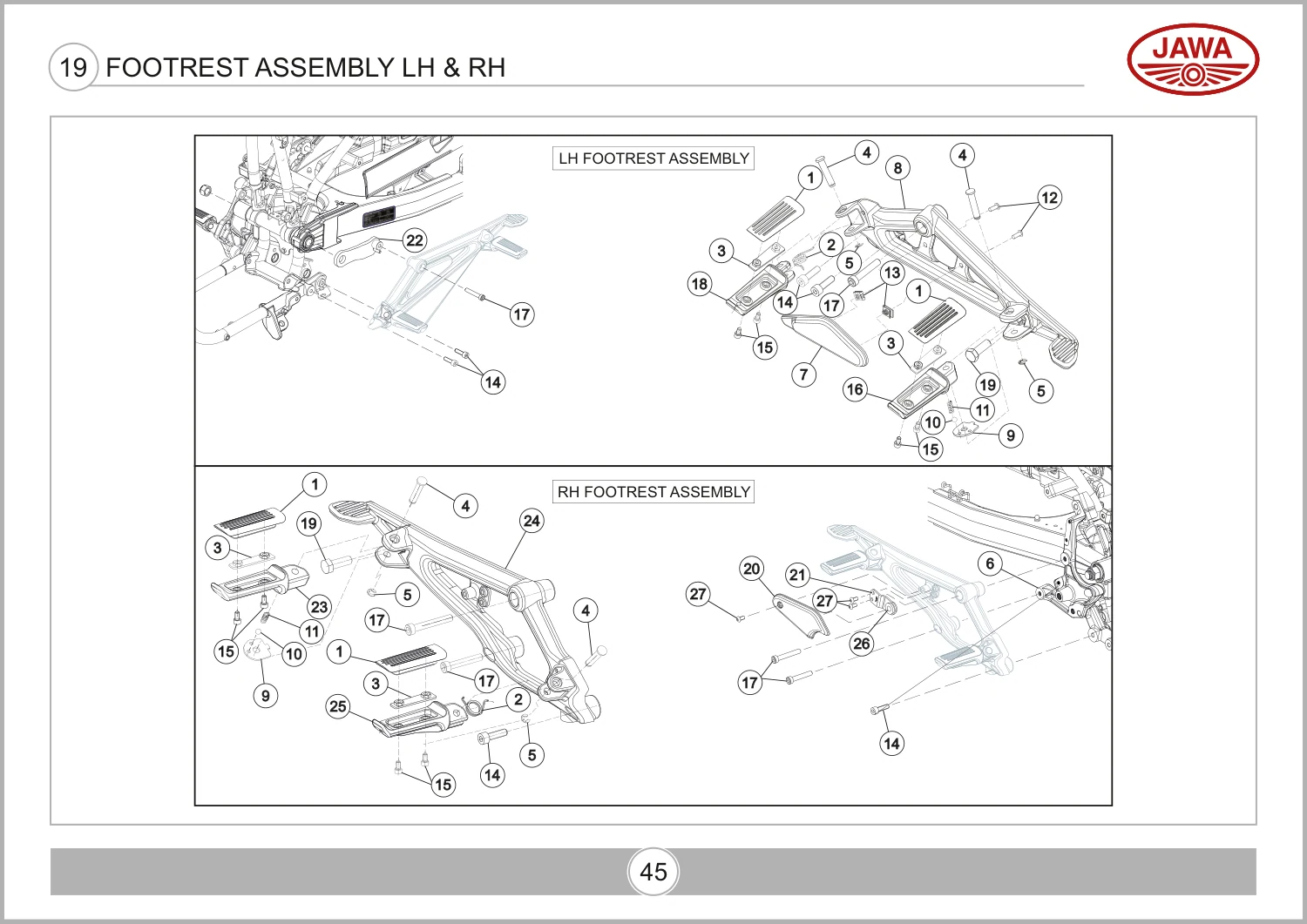

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 OG All Star · Rev 01 · p. 45Original parts list ↗

27 entries

Ref.	Part name / number	Assembly qty.	Action
1	Rubber, FootrestT2201AB10010N	4	Enquiry ↗
2	Spring Torsion Rider FootrestT2201AKW0130E	2	Enquiry ↗
3	Bracket Footrest GripT2201BB10070N	4	Enquiry ↗
4	Pivot Rider FootrestT2201BY50080N	4	Enquiry ↗
5	Seeger Diameter 5 Uni 7434MH01890000800	4	Enquiry ↗
6	Bracket Rmc MountingT22000J10180N	1	Enquiry ↗
7	Heel Guard LHT22000J10060F	1	Enquiry ↗
8	Footrest Hanger LHT2201AJ10020N	1	Enquiry ↗
9	Detent Plate-Pillion FootpegT2201BY50060N	2	Enquiry ↗
10	Ball Steel(Under)#896211-08000	2	Enquiry ↗
11	Rotation SpringMH01820003800	2	Enquiry ↗
12	Screw Rdskt M5X0.8X12Xa2-70SF0212024	2	Enquiry ↗
13	Nut Clip 5Mm (Black)TSF0300022	2	Enquiry ↗
14	Screw Socket M8X1.25X28X10.9SF0224181	6	Enquiry ↗
15	Screw Socket M5X0.8X10X8.8SF0224178	8	Enquiry ↗
16	Pillion Footrest LH Satin BlackT2201BB10010W	1	Enquiry ↗
17	Bolt Socket M8X1.25X48X10.9SF0105028	6	Enquiry ↗
18	Rider Footrest LH Satin BlackT2201AJ10040W	1	Enquiry ↗
19	Screw Socket M10X1.25X30X10.9SF0224051	2	Enquiry ↗
20	Heel Guard RHT22000J10050F	1	Enquiry ↗
21	Heel Guard Mtg Braket RHT2201BJ10010N	1	Enquiry ↗
22	Footrest Mtg Bracket LH Add OnT22000J10070N	1	Enquiry ↗
23	Pillion Footrest RH Satin BlackT2201BB10040W	1	Enquiry ↗
24	Footrest Hanger RHT2201AJ10030N	1	Enquiry ↗
25	Rider Footrest RH Satin BlackT2201AJ10050W	1	Enquiry ↗
26	Grommet For M6MH01610001700	1	Enquiry ↗
27	Screw Rdskt M6X1X12Xa2-70SF0212026	3	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

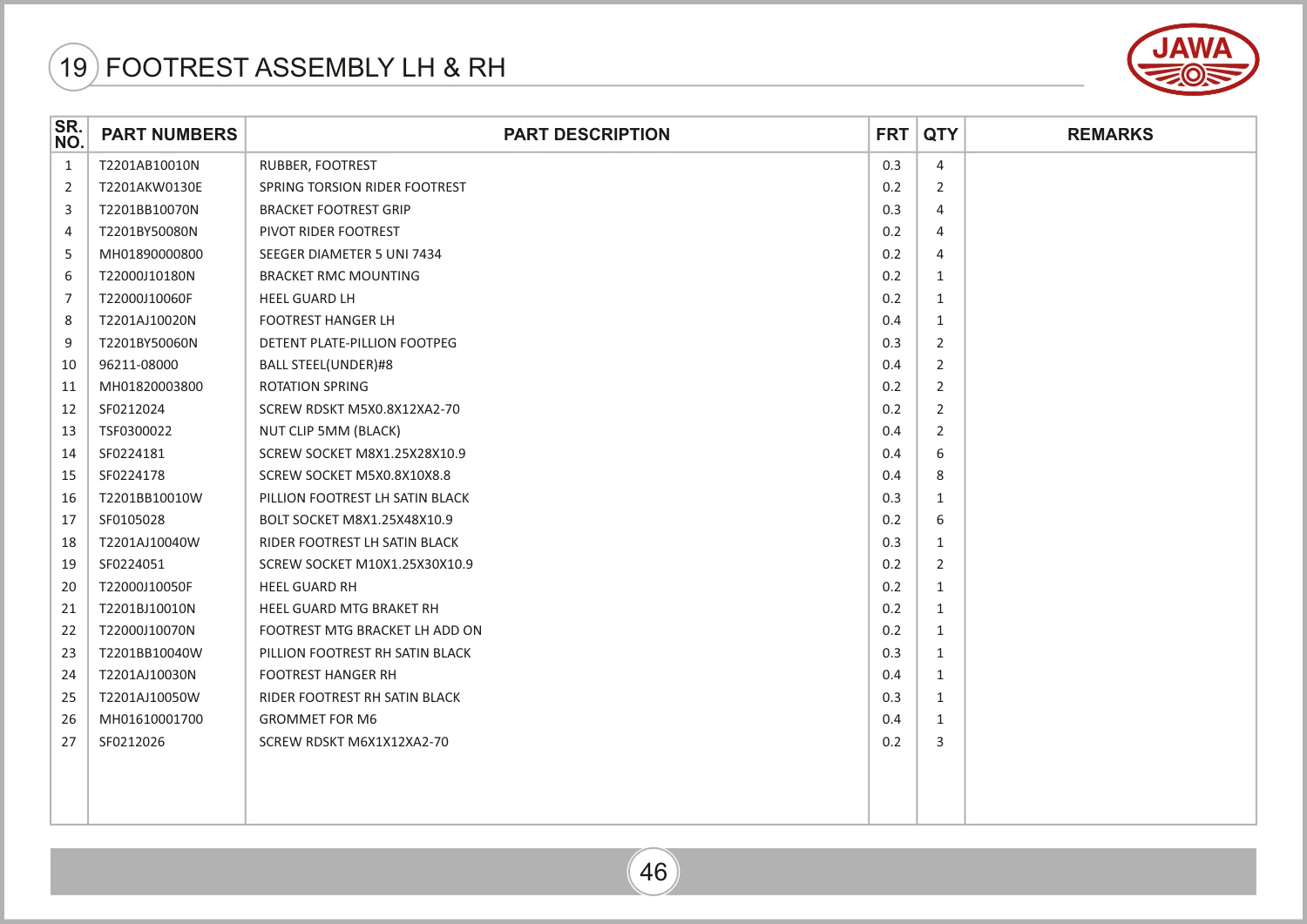

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 56, parts table page 57. View original parts table ↗
