Jawa 42 OG All Star · ASSEMBLY 45 · REV 01
Decals - All Star Rocky Beige
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 OG All Star · Rev 01 · p. 103Original parts list ↗
Parts in this drawing
10 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Decal Tank Top (Rocky Beige Gloss)T13200J10940L | 1 | |
| 2 | Decal Tank RR Side LH (Rocky Beige Gloss)T13200J10920L | 1 | |
| 3 | Decal Tank RR Side RH (Rocky Beige Gloss)T13200J10930L | 1 | |
| 4 | Decal Side Panel LH (Rocky Beige Gloss)T13200J10950L | 1 | |
| 5 | Decal Side Panel RH (Rocky Beige Gloss)T13200J10960L | 1 | |
| 6 | Decal Fender Rear (Rocky Beige Gloss)T13200J10970L | 1 | |
| 7 | Decal Headlamp Cowl (Rocky Beige Gloss)T13200J10790L | 1 | |
| 8 | Decal Tail Lamp Cowl (Rocky Beige Gloss)T13200J10800L | 1 | |
| 9 | Badge Fuel Tank Black LHT13200J10300N | 1 | |
| 10 | Badge Fuel Tank Black RHT13200J10250N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

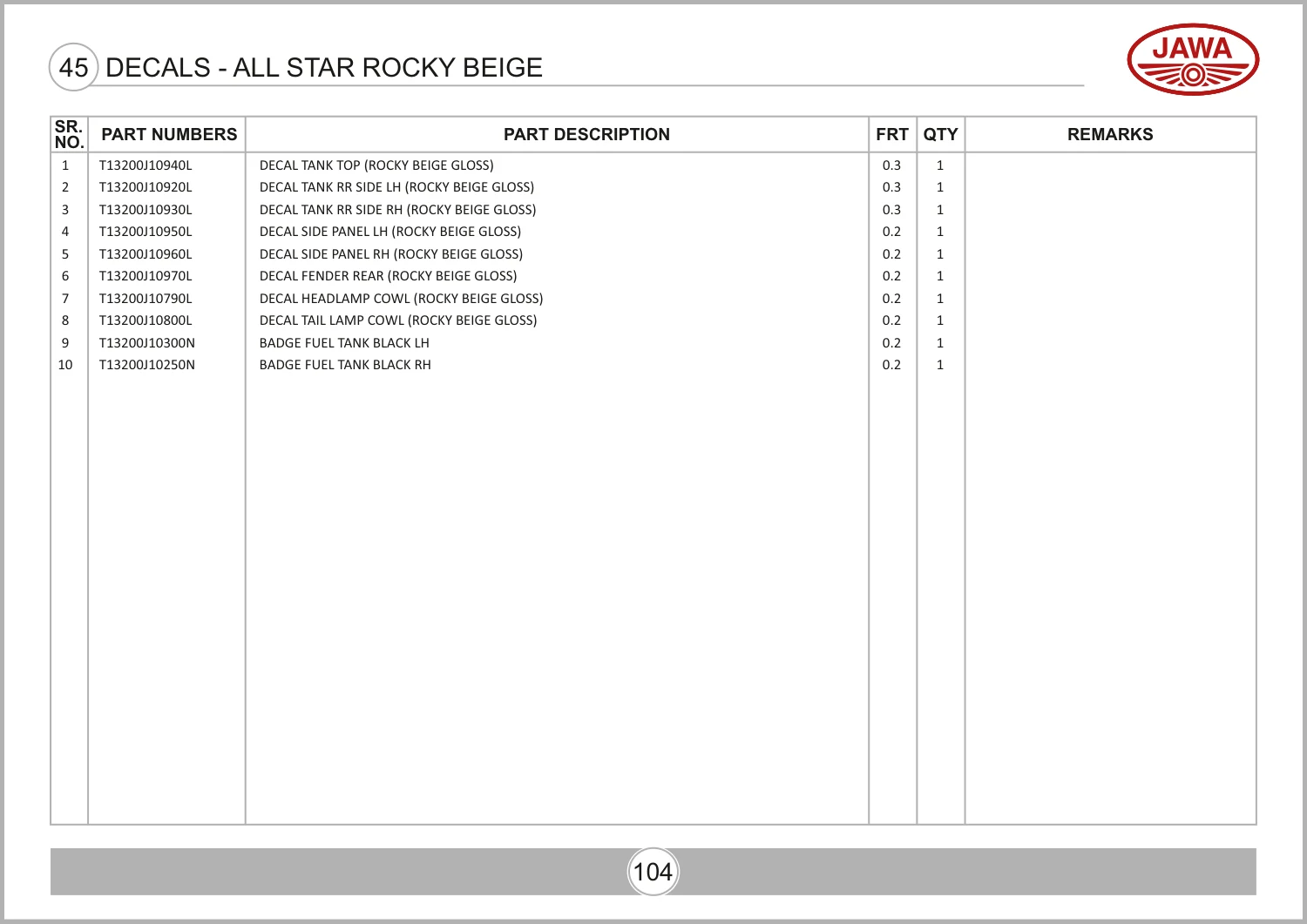

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 114, parts table page 115. View original parts table ↗
