Jawa 42 OG All Star · ASSEMBLY 10 · REV 01
Transmission System
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 OG All Star · Rev 01 · p. 25Original parts list ↗
Parts in this drawing
6 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Washer Ø17.2*Ø26*1T0215DVG0510N | 1 | |
| 32 | Bearing Output ShaftT0215DVG0550N | 1 | |
| 33 | Assembly, Input Shaft (NVH Final)T0215DVG0370N | 1 | |
| 34 | Assembly, Output Shaft (NVH Final)T0215DVG0380N | 1 | |
| 35 | Bearing Output ShaftT18050UF0140N | 1 | |
| 36 | Bush, 5Th Gear (NVH Final)T0215DVG0260N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

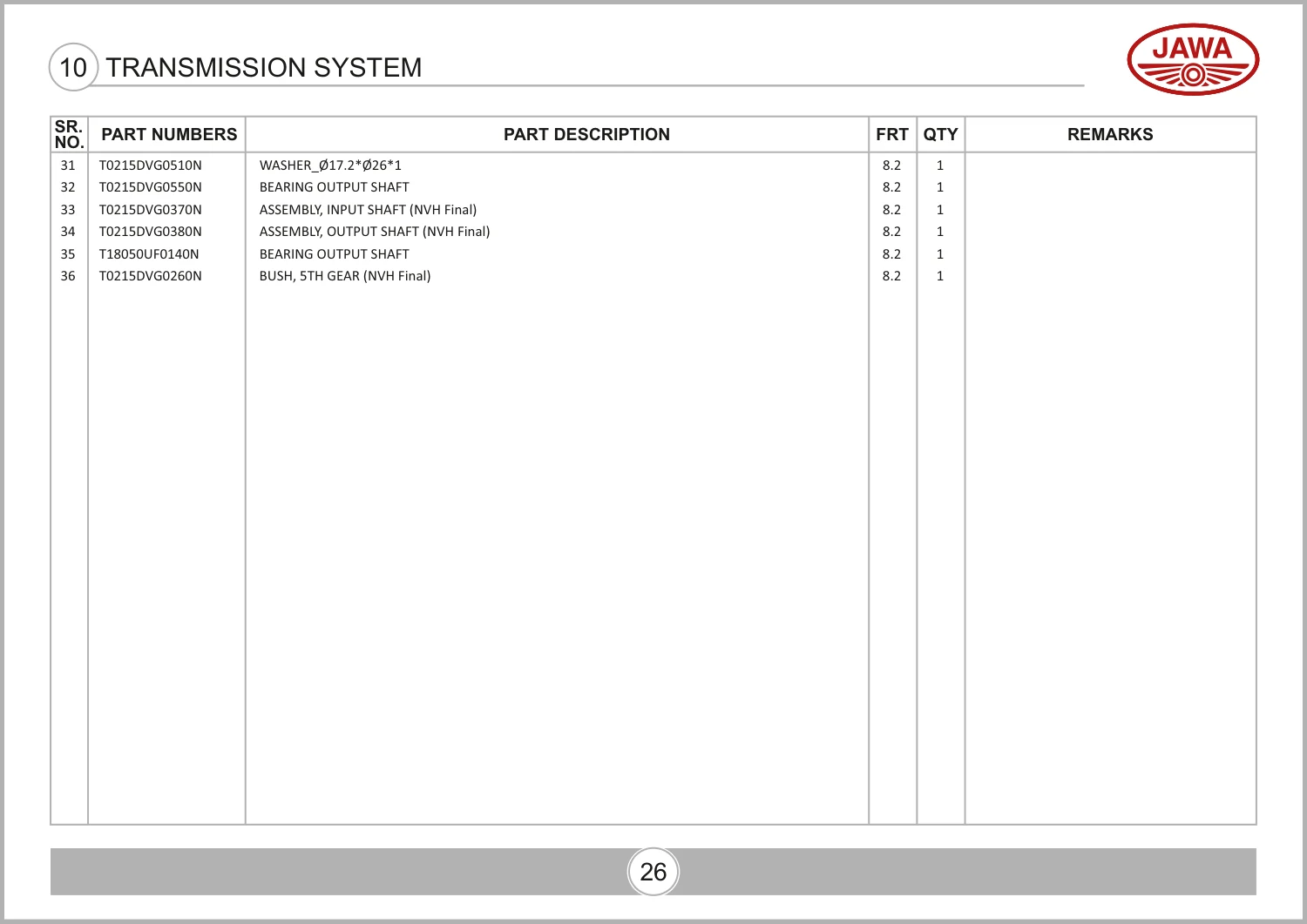

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 36, parts table page 37. View original parts table ↗
