Jawa 42 OG All Star · ASSEMBLY 35 · REV 01

Frame Assembly & Frame Mountings

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

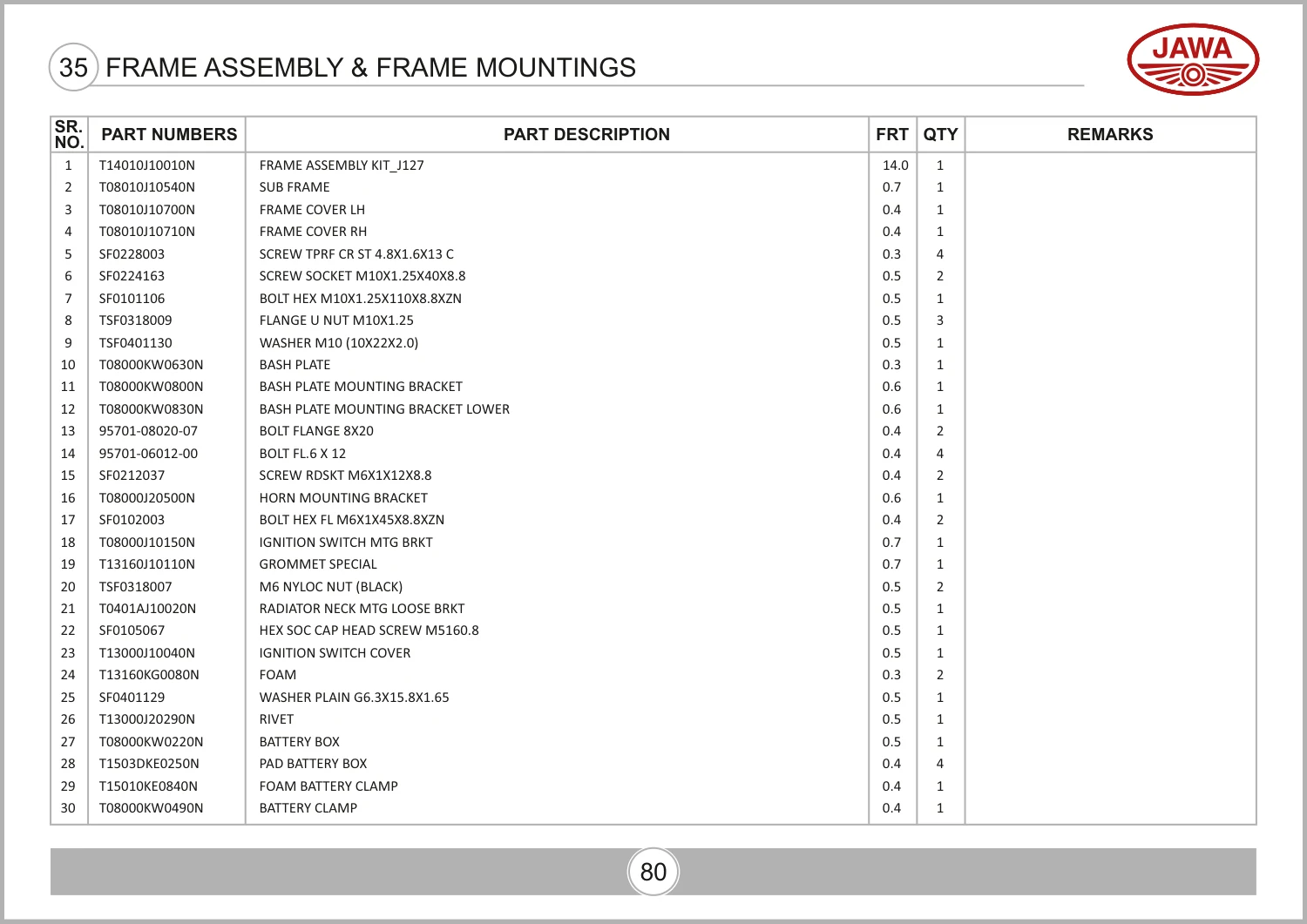

Jawa 42 OG All Star · Rev 01 · p. 79Original parts list ↗

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Frame Assembly Kit J127T14010J10010N	1	Enquiry ↗
2	Sub FrameT08010J10540N	1	Enquiry ↗
3	Frame Cover LHT08010J10700N	1	Enquiry ↗
4	Frame Cover RHT08010J10710N	1	Enquiry ↗
5	Screw Tprf Cr St 4.8X1.6X13 CSF0228003	4	Enquiry ↗
6	Screw Socket M10X1.25X40X8.8SF0224163	2	Enquiry ↗
7	Bolt Hex M10X1.25X110X8.8XznSF0101106	1	Enquiry ↗
8	Flange U Nut M10X1.25TSF0318009	3	Enquiry ↗
9	Washer M10 (10X22X2.0)TSF0401130	1	Enquiry ↗
10	Bash PlateT08000KW0630N	1	Enquiry ↗
11	Bash Plate Mounting BracketT08000KW0800N	1	Enquiry ↗
12	Bash Plate Mounting Bracket LowerT08000KW0830N	1	Enquiry ↗
13	Bolt Flange 8X2095701-08020-07	2	Enquiry ↗
14	Bolt Fl.6 X 1295701-06012-00	4	Enquiry ↗
15	Screw Rdskt M6X1X12X8.8SF0212037	2	Enquiry ↗
16	Horn Mounting BracketT08000J20500N	1	Enquiry ↗
17	Bolt Hex Fl M6X1X45X8.8XznSF0102003	2	Enquiry ↗
18	Ignition Switch Mtg BrktT08000J10150N	1	Enquiry ↗
19	Grommet SpecialT13160J10110N	1	Enquiry ↗
20	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
21	Radiator Neck Mtg Loose BrktT0401AJ10020N	1	Enquiry ↗
22	Hex Soc Cap Head Screw M5160.8SF0105067	1	Enquiry ↗
23	Ignition Switch CoverT13000J10040N	1	Enquiry ↗
24	FoamT13160KG0080N	2	Enquiry ↗
25	Washer Plain G6.3X15.8X1.65SF0401129	1	Enquiry ↗
26	RivetT13000J20290N	1	Enquiry ↗
27	Battery BoxT08000KW0220N	1	Enquiry ↗
28	Pad Battery BoxT1503DKE0250N	4	Enquiry ↗
29	Foam Battery ClampT15010KE0840N	1	Enquiry ↗
30	Battery ClampT08000KW0490N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 90, parts table page 91. View original parts table ↗
