Jawa 42 OG All Star · ASSEMBLY 35 · REV 01
Frame Assembly & Frame Mountings
Select a diagram reference or a row below to enquire about the exact part.

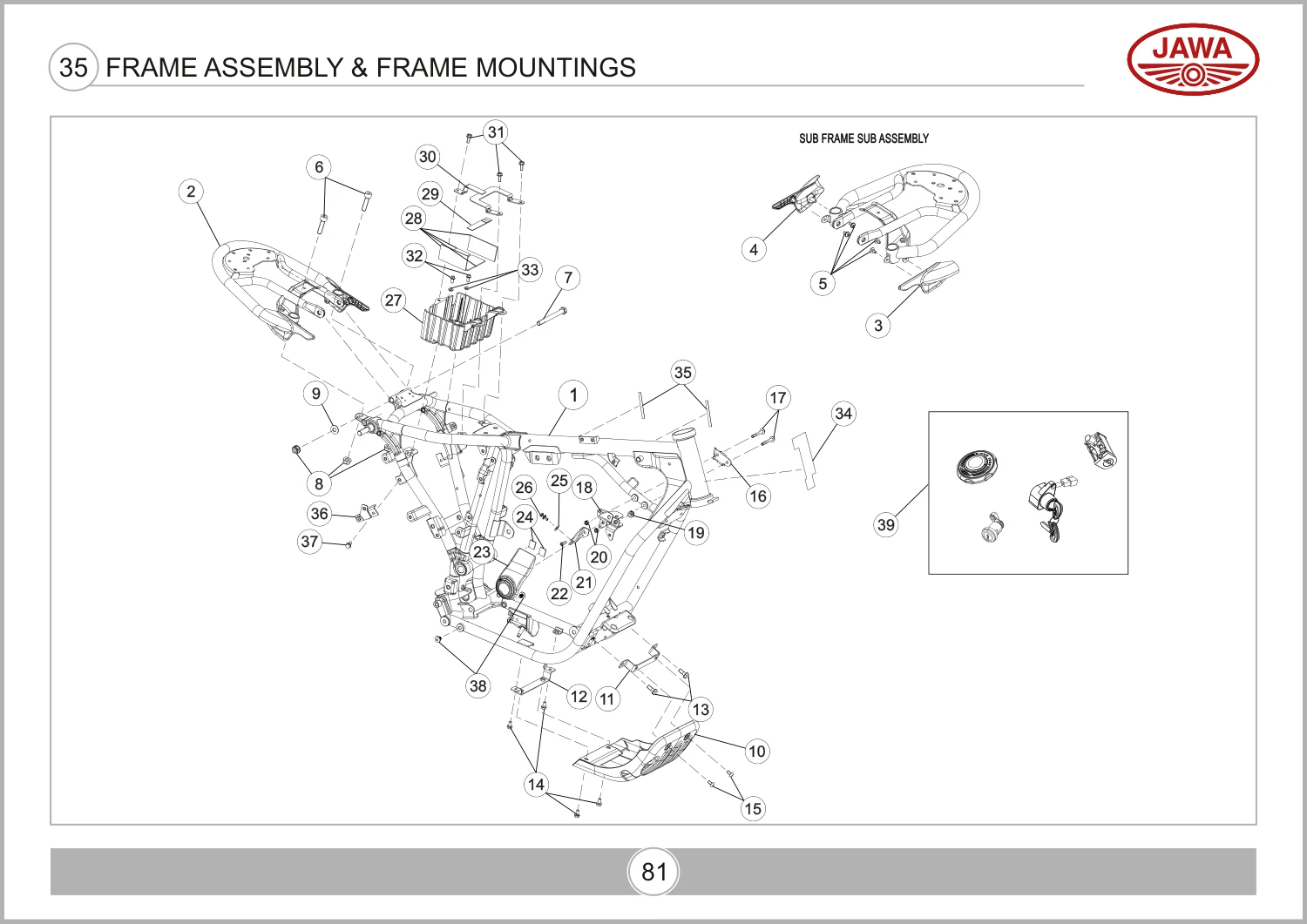

CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 OG All Star · Rev 01 · p. 81Original parts list ↗
Parts in this drawing
9 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 31 | Bolt Flange 6X1695701-06016-00 | 4 | |
| 32 | Flanged Head Bolt-Sh M6X12SP0906041 | 2 | |
| 33 | Spacer H=4 For M6MH01790003300 | 2 | |
| 34 | Anti Abrasive Tape Head PipeT08000J10010N | 1 | |
| 35 | Clamp Throttle CableT0702JKE0010N | 2 | |
| 36 | Bkt Under TrayT13000J10330N | 1 | |
| 37 | Flange Bolt M6*14TSF0102282 | 1 | |
| 38 | Plastic Plug M8T13000Y50140N | 2 | |
| 39 | Lock Set KitT08000J10400N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

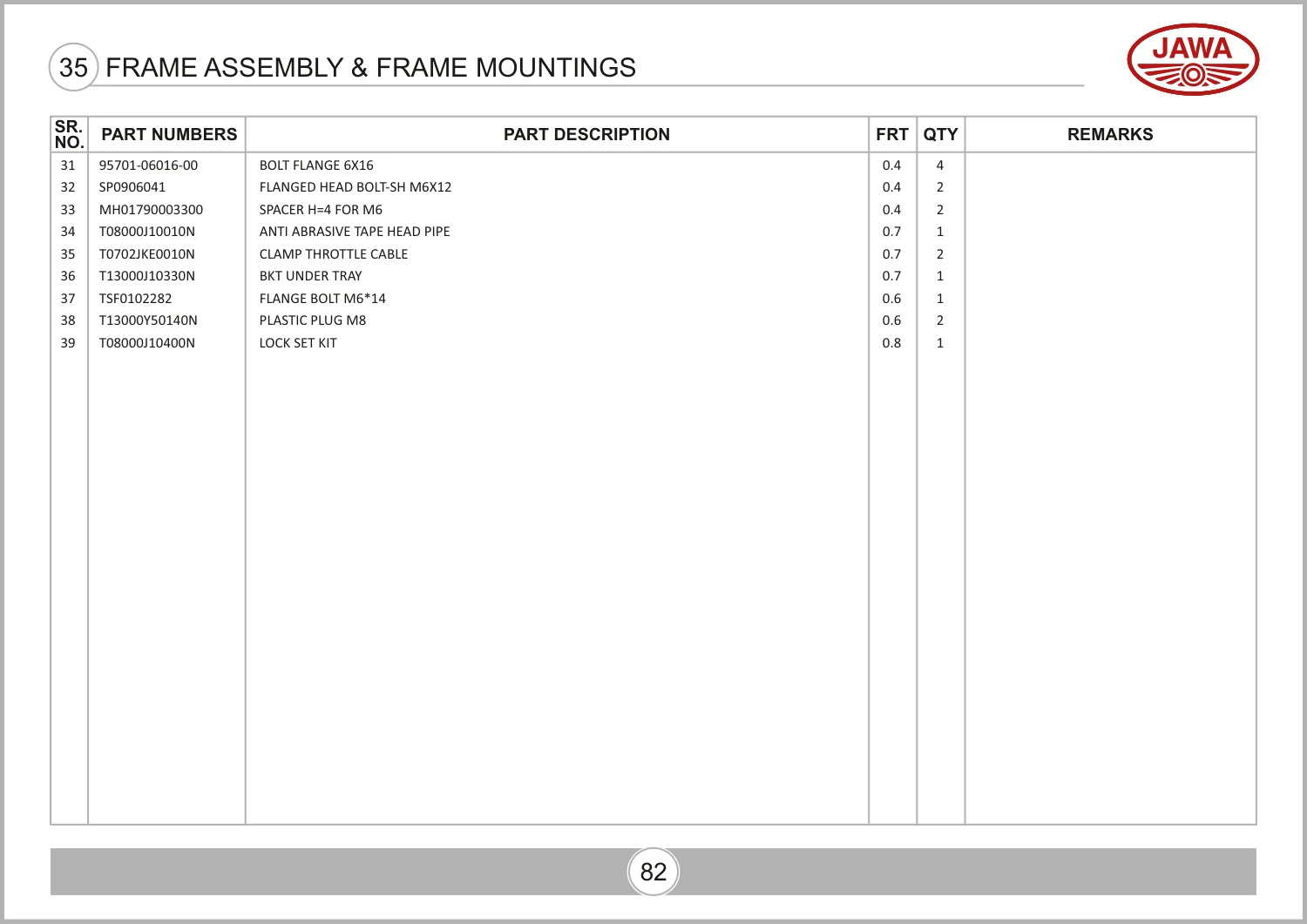

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 92, parts table page 93. View original parts table ↗
