Jawa 42 OG All Star · ASSEMBLY 37 · REV 01
Handle Bar Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part

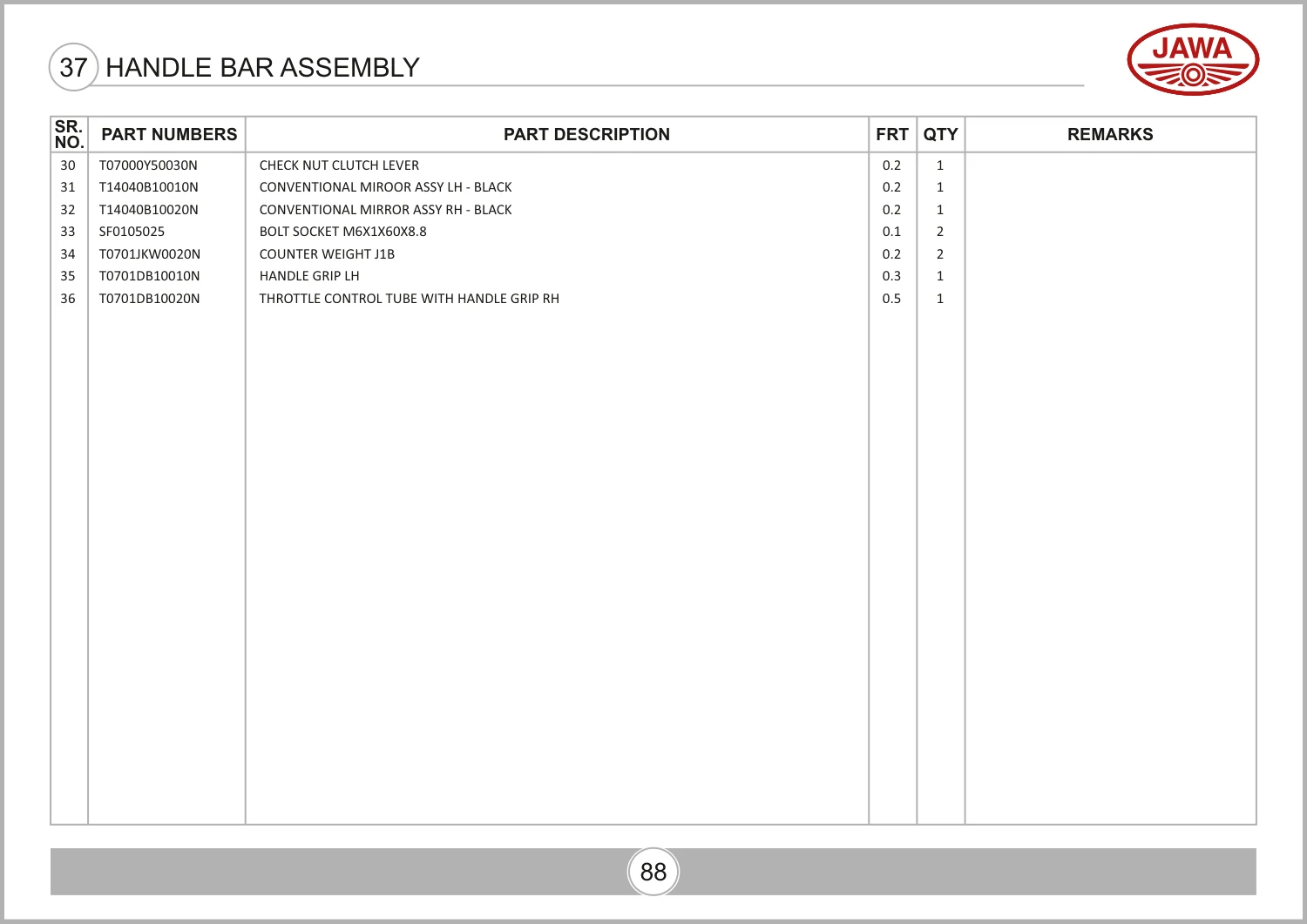

Jawa 42 OG All Star · Rev 01 · p. 87Original parts list ↗
Parts in this drawing
7 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 30 | Check Nut Clutch LeverT07000Y50030N | 1 | |
| 31 | Conventional Miroor Assy LH - BlackT14040B10010N | 1 | |
| 32 | Conventional Mirror Assy RH - BlackT14040B10020N | 1 | |
| 33 | Bolt Socket M6X1X60X8.8SF0105025 | 2 | |
| 34 | Counter Weight J1BT0701JKW0020N | 2 | |
| 35 | Handle Grip LHT0701DB10010N | 1 | |
| 36 | Throttle Control Tube With Handle Grip RHT0701DB10020N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.
Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 98, parts table page 99. View original parts table ↗
