Jawa 42 OG All Star · ASSEMBLY 41 · REV 01
Electronic Fuel Injection (EFI) Assembly And Spare Fuse Kit
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa 42 OG All Star · Rev 01 · p. 95Original parts list ↗
Parts in this drawing
23 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Iacv ECUT0102HY50040N | 1 | |
| 2 | Flanged Head Bolt-Sh M6X12Sp0906041 | 4 | |
| 3 | Throttle Cable BracketT0102HKW0040N | 1 | |
| 4 | Fastner-MtbT1501PKW0050N | 4 | |
| 5 | Metal FlangeT10050KW0050N | 1 | |
| 6 | Fuel Sensor Unit OBD-II Phase-2 (E20)T1501PJ10010N | 1 | |
| 7 | Rubber GasketT1501PKW0040N | 1 | |
| 8 | Fixing Injector Clip (Dellorto)T0102BKE0050N | 1 | |
| 9 | Lambda Sensor -J127 UpstreamT1501AJ10440N | 1 | |
| 10 | Fuel Pump OBD IIT10050J20010N | 1 | |
| 11 | Rubber GasketT10050KW0060N | 1 | |
| 12 | Fuel FilterT10050KW0040N | 1 | |
| 13 | Throttle Body Assembly Type-B (38 Dia) (OBD II)T0102HY50050N | 1 | |
| 14 | Kit 3 In 1 Sensor Throttle BodyT0102HY50060N | 1 | |
| 15 | Fuel Injector CapT1501PKW0020E | 1 | |
| 16 | Fuel InjectorT0102HY50020N | 1 | |
| 17 | Iacv Bracket Throttle BodyT0102HY50030N | 1 | |
| 18 | Spare Fuse Kit AssyT1501AKE2170N | 1 | |
| 18.1 | Fuse 5A MiniT1501AY50050N | 1 | |
| 18.2 | Fuse 10A MiniT1501AY50060N | 1 | |
| 18.3 | Fuse 15A MiniT1501AY50070N | 1 | |
| 18.4 | Fuse 20A MiniT1501AY50080N | 1 | |
| 18.5 | Fuse 30A MiniT1501AY50090N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

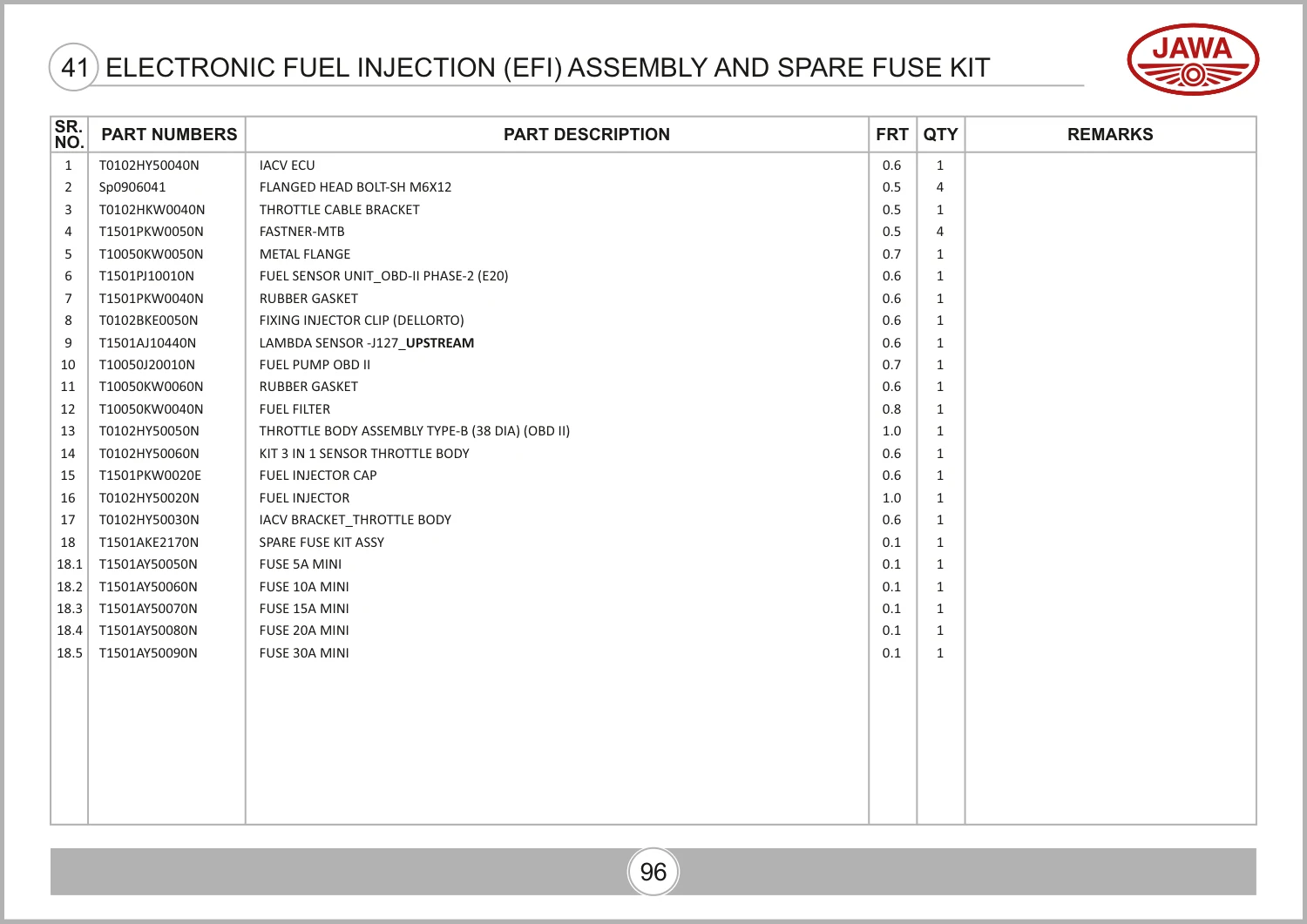

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 106, parts table page 107. View original parts table ↗
