Jawa 42 OG All Star · ASSEMBLY 23 · REV 01

Radiator & Cooling System

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa 42 OG All Star · Rev 01 · p. 53Original parts list ↗

28 entries

Ref.	Part name / number	Assembly qty.	Action
1	Radiator FanT0401FKW0020N	1	Enquiry ↗
2	Hose Radiator To PumpT0401DY50060N	1	Enquiry ↗
3	Cap Coolant TankT0401DY50050N	1	Enquiry ↗
4	Screw Hex Fl M6X1X12X8.8SF0202346	5	Enquiry ↗
5	Upper Bracket Radiator LooseT04000KW0090N	1	Enquiry ↗
6	Tank Recovery-Cooling SystemT0401DY50020N	1	Enquiry ↗
7	Collar M8 Rear Side Cover MtgT13030KM0120N	1	Enquiry ↗
8	Spring Band Clamp Dia 24T0401DKE0290N	1	Enquiry ↗
9	Grommet For M6MH01610001700	5	Enquiry ↗
10	Radiator Sub Assembly (Tata Toyo)T0401AY50083N	1	Enquiry ↗
11	Spring Band Clamp Dia 11T10050KE0100N	2	Enquiry ↗
12	Screw Rdskt M6X1X45X8.8SF0212051	1	Enquiry ↗
13	Breather HoseT04000Y50020N	1	Enquiry ↗
14	Screw Rdskt M6X1X12X8.8SF0212037	2	Enquiry ↗
15	Bolt Hex Fl M8X1.25X35X10.9SF0102642	1	Enquiry ↗
16	Grommet M8 Rear Side Cover MtgT13030KM0110N	1	Enquiry ↗
17	Clamp Spring Band 23X12X1.5SF0705047	1	Enquiry ↗
18	Radiator GrillT0401AKW0070N	1	Enquiry ↗
19	Hose Radiator To Recovery TankT0401DJ20090N	1	Enquiry ↗
20	Hose Thermostat To RadiatorT04000KW0030N	1	Enquiry ↗
21	Spring Band Clamp Dia 27T0401DKE0300N	1	Enquiry ↗
22	Radiator Pressure Cap BadgeT0401AJ10030N	1	Enquiry ↗
23	Rubber Strap - Jawa UgT15000KW0050N	2	Enquiry ↗
24	Clip Fuel Hose1001CAA13420N	1	Enquiry ↗
25	Radiator Grill DamperT0401BJ20010N	4	Enquiry ↗
26	Radiator Cap 1.4 BarT0401AJ20080N	1	Enquiry ↗
27	Clamp Spring Band 10 5X8 4X0 8T10050KE0100N	1	Enquiry ↗
28	Spring Band Clamp Dia 28Sf0705047	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

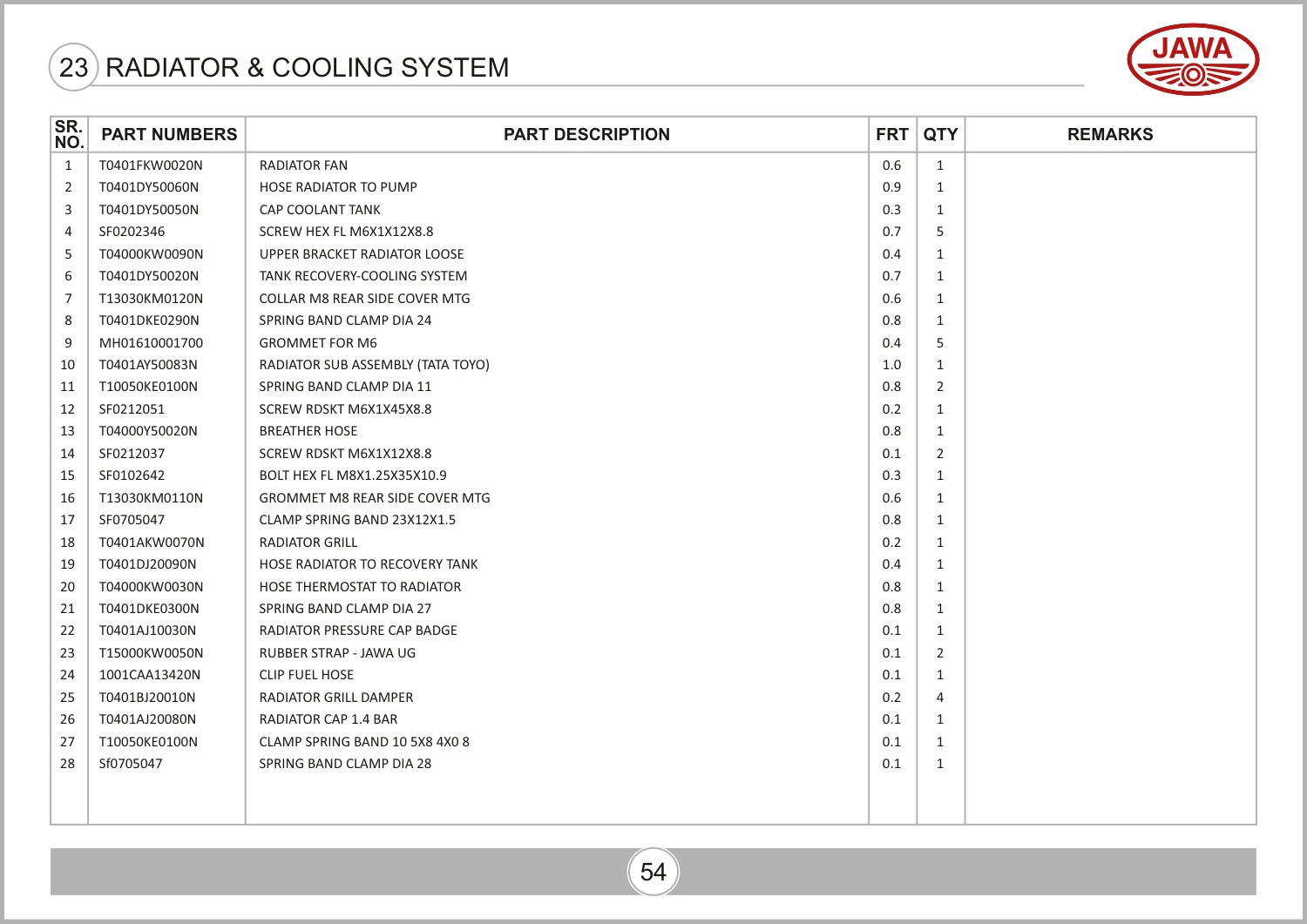

Source: PARTS CATALOGUE - JAWA 42 OG ALL STAR_REV-01.pdf · PDF diagram page 64, parts table page 65. View original parts table ↗
