Jawa Perak · ASSEMBLY 33 · REV 24

Radiator

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak · Rev 24 · p. 91Original parts list ↗

23 entries

Ref.	Part name / number	Assembly qty.	Action
25	Sticker Recovery TankT13200KW0240N	1	Enquiry ↗
26	Side Reflex ReflectorT1501FKW0070N	2	Enquiry ↗
27	Washer M5X12TSF0401123	6	Enquiry ↗
28	Nyloc Nut M5SF0302015	2	Enquiry ↗
29	Bush - RadiatorT0401BJ30010N	4	Enquiry ↗
30	Foam Battery ClampT15010KE0840N	1	Enquiry ↗
31	Cap Coolant Tank Fwd FootrestT0401DY50050N	1	Enquiry ↗
32	Hose Radiator To Recovery Tank Fwd FootrestT0401DJ20090N	1	Enquiry ↗
33	Breather Hose Fwd FootrestT04000Y50020N	1	Enquiry ↗
34	Grommet M8 Rear Side Cover Mtg Fwd FootrestT13030KM0110N	1	Enquiry ↗
35	Screw Rdskt M6X1X45X8.8 Fwd FootrestSF0212051	1	Enquiry ↗
36	Tank Recovery-Cooling System Fwd FootrestT0401DY50020N	1	Enquiry ↗
37	Collar M8 Rear Side Cover Mtg Fwd FootrestT13030KM0120N	1	Enquiry ↗
38	Flange Bolt M8 X 1 25P X 25 5LSF0102057	1	Enquiry ↗
39	Bash Plate Mounting Bracket Fwd FootrestT08000KW0800N	1	Enquiry ↗
40	Bash Plate Mounting Bracket Lower Fwd FootrestT08000KW0830N	1	Enquiry ↗
41	Screw Rdskt M6X1X12X8.8 Fwd FootrestSF0212037	4	Enquiry ↗
42	Screw Rdskt M8X1.25X15X8.8 Fwd FootrestSF0212042	2	Enquiry ↗
43	Rubber Strap 110 Fwd FootrestT08000B10420N	2	Enquiry ↗
44	Clip Fuel Hose Fwd Footrest1001CAA13420N	1	Enquiry ↗
45	Radiator Pressure Cap BadgeT13200J30590N	1	Enquiry ↗
46	Radiator Grill DamperT0401BJ20010N	4	Enquiry ↗
47	Clamp Spring Band 10.5X8.4X0.8SF0705068	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

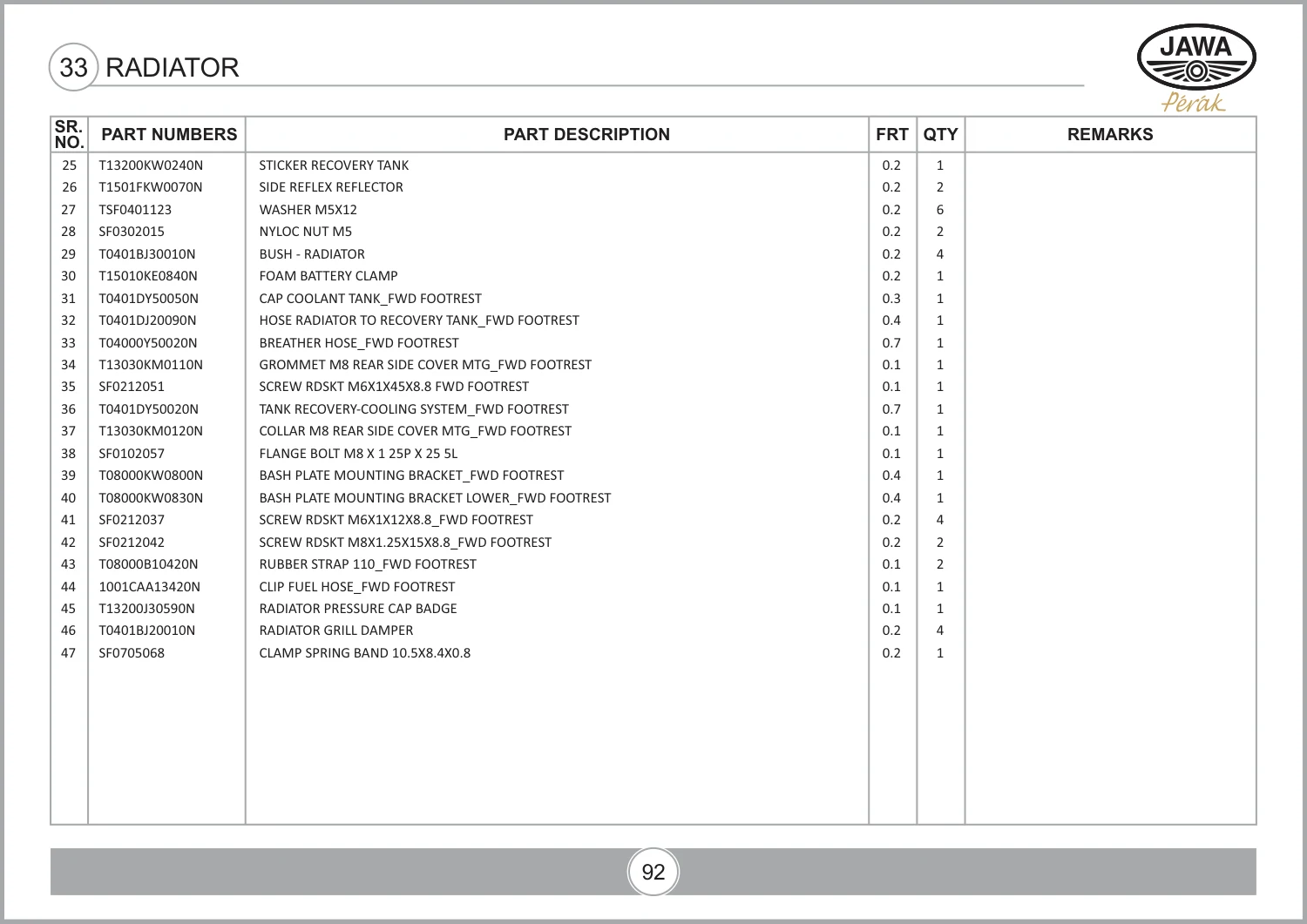

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 103, parts table page 104. View original parts table ↗
