Jawa Perak · ASSEMBLY 37 · REV 24

Silencer Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak Silencer Assembly exploded assembly diagram, catalogue page 101

Jawa Perak · Rev 24 · p. 101Original parts list ↗

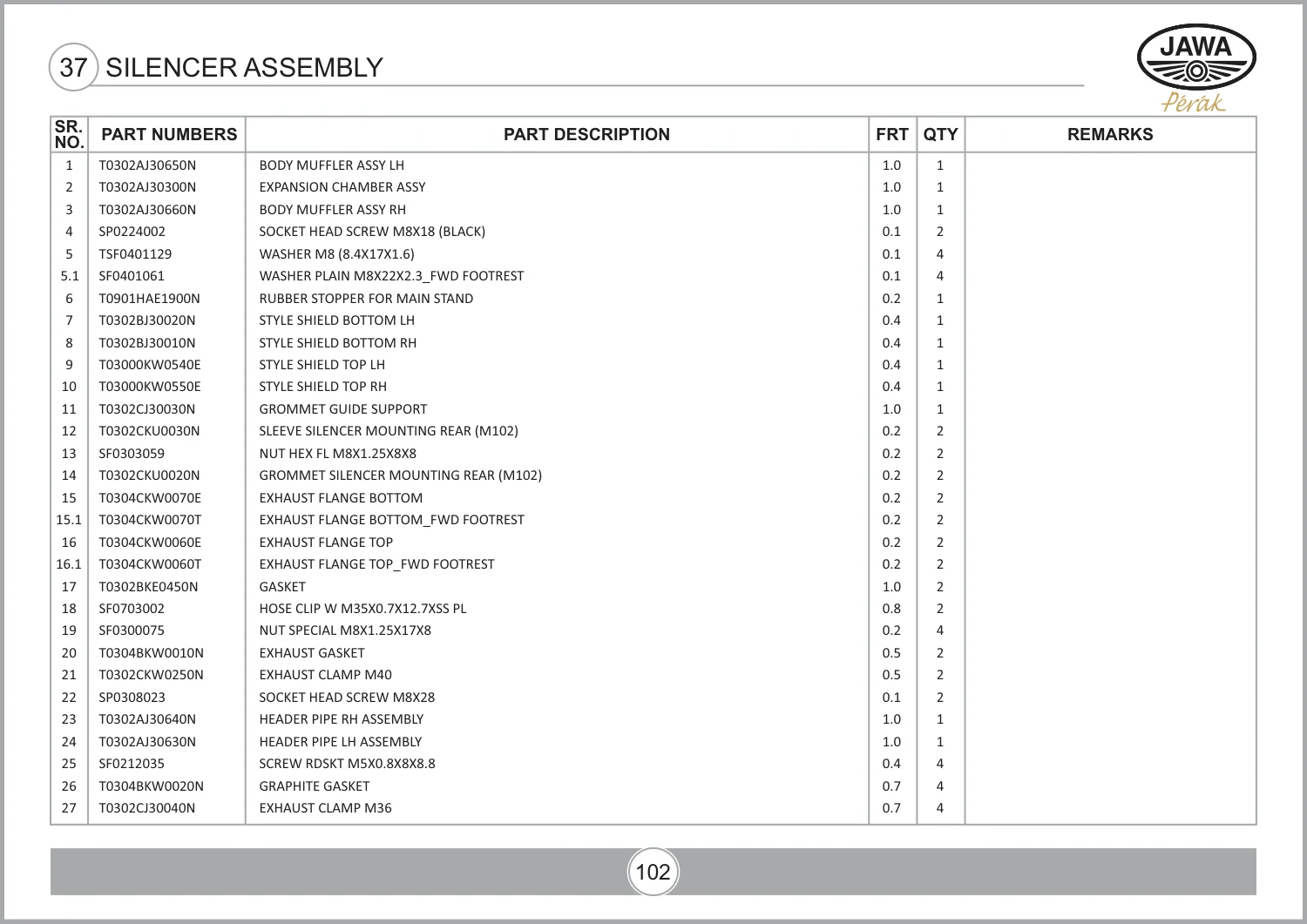

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Body Muffler Assy LHT0302AJ30650N	1	Enquiry ↗
2	Expansion Chamber AssyT0302AJ30300N	1	Enquiry ↗
3	Body Muffler Assy RHT0302AJ30660N	1	Enquiry ↗
4	Socket Head Screw M8X18 (Black)SP0224002	2	Enquiry ↗
5	Washer M8 (8.4X17X1.6)TSF0401129	4	Enquiry ↗
5.1	Washer Plain M8X22X2.3 Fwd FootrestSF0401061	4	Enquiry ↗
6	Rubber Stopper For Main StandT0901HAE1900N	1	Enquiry ↗
7	Style Shield Bottom LHT0302BJ30020N	1	Enquiry ↗
8	Style Shield Bottom RHT0302BJ30010N	1	Enquiry ↗
9	Style Shield Top LHT03000KW0540E	1	Enquiry ↗
10	Style Shield Top RHT03000KW0550E	1	Enquiry ↗
11	Grommet Guide SupportT0302CJ30030N	1	Enquiry ↗
12	Sleeve Silencer Mounting Rear (M102)T0302CKU0030N	2	Enquiry ↗
13	Nut Hex Fl M8X1.25X8X8SF0303059	2	Enquiry ↗
14	Grommet Silencer Mounting Rear (M102)T0302CKU0020N	2	Enquiry ↗
15	Exhaust Flange BottomT0304CKW0070E	2	Enquiry ↗
15.1	Exhaust Flange Bottom Fwd FootrestT0304CKW0070T	2	Enquiry ↗
16	Exhaust Flange TopT0304CKW0060E	2	Enquiry ↗
16.1	Exhaust Flange Top Fwd FootrestT0304CKW0060T	2	Enquiry ↗
17	GasketT0302BKE0450N	2	Enquiry ↗
18	Hose Clip W M35X0.7X12.7Xss PlSF0703002	2	Enquiry ↗
19	Nut Special M8X1.25X17X8SF0300075	4	Enquiry ↗
20	Exhaust GasketT0304BKW0010N	2	Enquiry ↗
21	Exhaust Clamp M40T0302CKW0250N	2	Enquiry ↗
22	Socket Head Screw M8X28SP0308023	2	Enquiry ↗
23	Header Pipe RH AssemblyT0302AJ30640N	1	Enquiry ↗
24	Header Pipe LH AssemblyT0302AJ30630N	1	Enquiry ↗
25	Screw Rdskt M5X0.8X8X8.8SF0212035	4	Enquiry ↗
26	Graphite GasketT0304BKW0020N	4	Enquiry ↗
27	Exhaust Clamp M36T0302CJ30040N	4	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 113, parts table page 114. View original parts table ↗
