Jawa Perak · ASSEMBLY 36 · REV 24
Seat And Tail Lamp Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 99Original parts list ↗
Parts in this drawing
16 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Seat Mounting BracketT09000J30010N | 1 | |
| 2 | Self Lock Nut M8TSF0318005 | 4 | |
| 3 | Seat PanT0901AJ30020N | 1 | |
| 3.1 | Seat Pan Fwd FootrestT0901AJ30020E | 1 | |
| 4 | Screw Rdskt M6X1X12Xa2-70SF0212023 | 7 | |
| 4.1 | Screw Rdskt M6X1X12X8.8 Fwd FootrestSF0212037 | 7 | |
| 5 | Clip Nut 6Mm (Black)90305-GK8-0001 | 6 | |
| 6 | Seat Mounting StudT09000J30030N | 4 | |
| 7 | Tail Lamp - J301T1501EJ30010N | 1 | |
| 7.1 | Tail Lamp ImcrT1501EJ30050N | 1 | |
| 8 | Seat AssemblyT09010J30020N | 1 | |
| 8.1 | Seat Assembly Fwd FootrestT09010J30070N | 1 | |
| 9 | Wiring Holder ClampT1501AJ30030N | 2 | |
| 10 | Flange Bolt M5X102W_SF0102080 | 5 | |
| 11 | Socket Head Screw M10X25LSF0224168 | 4 | |
| 12 | Seat Damper 9 MmT0901EKE1910N | 2 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

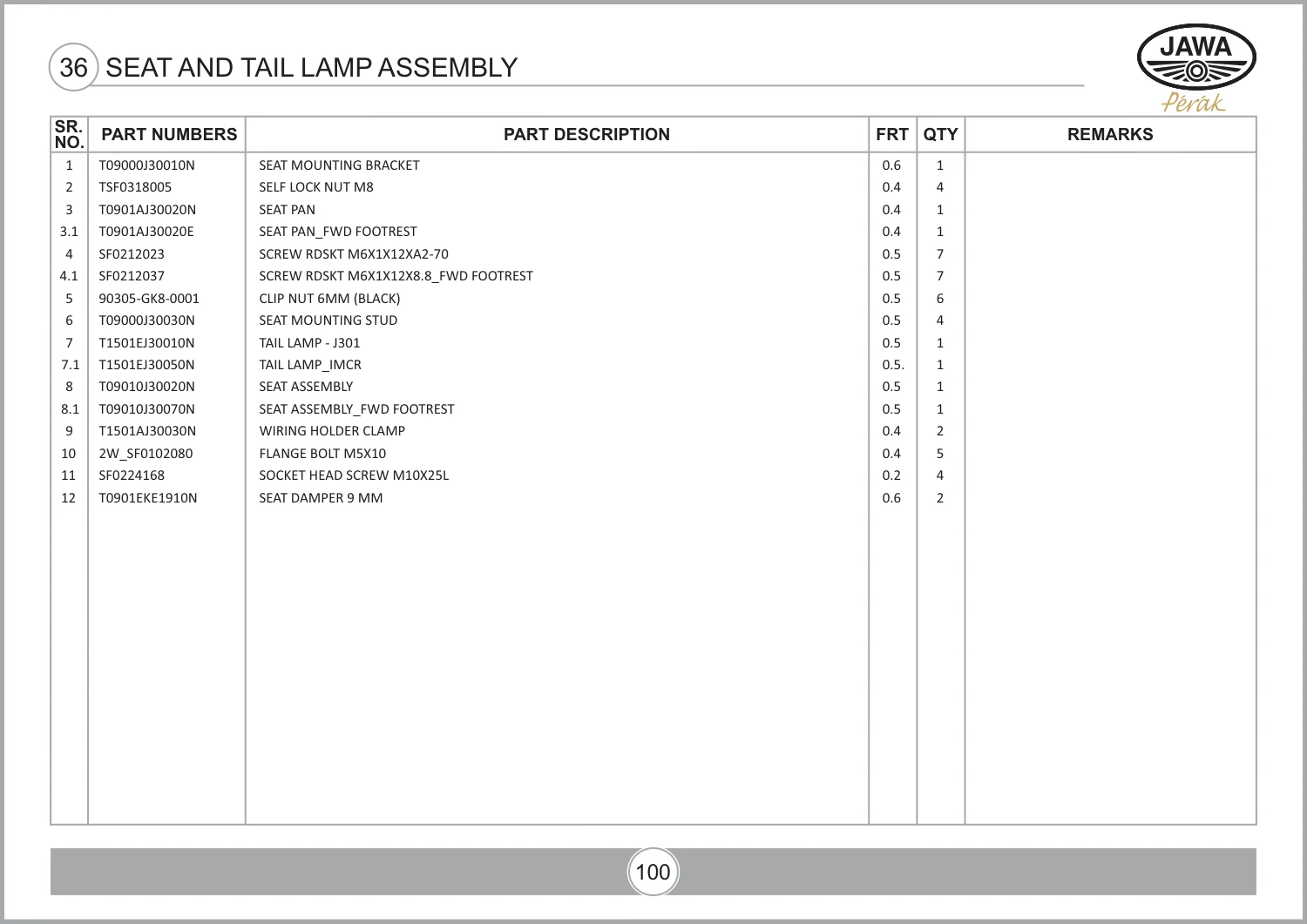

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 111, parts table page 112. View original parts table ↗
