Bracket Seat Mounting
T09000J30060N
Enquiry ↗CATALOGUE DRAWING
This part is reference 2
Jawa 42 Bobber · Rev 17 · p. 93Original parts list ↗
Highlighted catalogue reference 2. The image shows the complete assembly.
Self Lock Nut M8 · TSF0318005

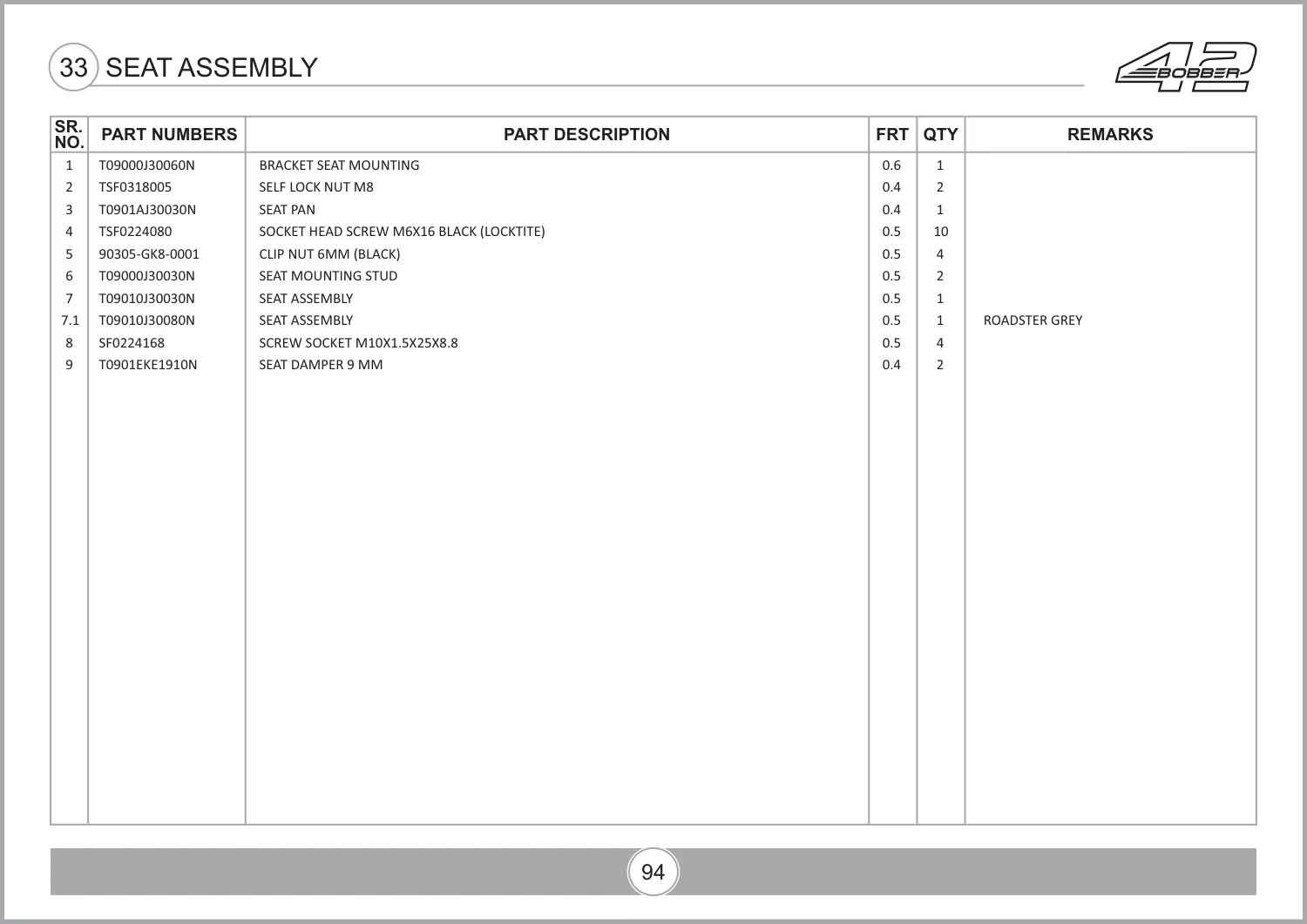

Listed in the supplied Jawa 42 Bobber catalogue, revision 17, under Seat Assembly. Match reference 2 in the drawing. Assembly quantity: 2. Choose the quantity you need in your enquiry above.
Self Lock Nut M8 specifications & catalogue names
- Part number
- TSF0318005
- Catalogue part name
- SELF LOCK NUT M8
Bike catalogues listing this part number
Jawa 42 Bobber partsJawa 42 OG All Star partsJawa Perak partsJawa & Jawa 42 Platform partsYezdi Roadster Mark II partsYezdi Roadster partsBSA Gold Star 650 partsBSA Scrambler 650 partsYezdi Scrambler LWE partsYezdi Scrambler partsYezdi Adventure parts
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Jawa 42 BobberSelf Lock Nut M8Rev 17 · PDF p. 106 | Seat AssemblyRef 2 · Assembly qty. 2 | Confirm exact bike variant. |
| Jawa 42 BobberSelf Lock Nut M8Rev 17 · PDF p. 142 | Handle Bar AssemblyRef 1 · Assembly qty. 2 | Confirm exact bike variant. |
| Jawa 42 OG All StarSelf Lock Nut M8Rev 01 · PDF p. 97 | Handle Bar AssemblyRef 1 · Assembly qty. 2 | Confirm exact bike variant. |
| Jawa PerakSelf Lock Nut M8Rev 24 · PDF p. 112 | Seat And Tail Lamp AssemblyRef 2 · Assembly qty. 4 | Confirm exact bike variant. |
| Jawa PerakSelf Lock Nut M8Rev 24 · PDF p. 172 | AccessoriesRef 6 · Assembly qty. 4 | Confirm exact bike variant. |
| Jawa & Jawa 42 PlatformSelf Lock Nut M8Rev 36 · PDF p. 119 | Rear Brake AssemblyRef 13 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi Roadster Mark IISelf Lock Nut M8Rev 06 · PDF p. 78 | Rear Fender AssemblyRef 11 · Assembly qty. 4 | Confirm exact bike variant. |
| Yezdi Roadster Mark IISelf Lock Nut M8Rev 06 · PDF p. 130 | Mandatory AccessoriesRef 14 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi RoadsterSelf Lock Nut M8Rev 22 · PDF p. 110 | Saree Guard / Luggage RackRef 9 · Assembly qty. 2 | Confirm exact bike variant. |
| BSA Gold Star 650Self Lock Nut M8Rev 06 · PDF p. 112 | Handle Bar AssemblyRef 17 · Assembly qty. 2 | Confirm exact bike variant. |
| BSA Scrambler 650Self Lock Nut M8Rev 03 · PDF p. 98 | Handle Bar AssemblyRef 7 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi Scrambler LWESelf Lock Nut M8Rev 04 · PDF p. 103 | Handle Bar AssemblyRef 1 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi ScramblerSelf Lock Nut M8Rev 19 · PDF p. 118 | Handle Bar AssemblyRef 1 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi AdventureSelf Lock Nut M8Rev 22 · PDF p. 149 | Luggage Rack & Saree Guard AssemblyRef 9 · Assembly qty. 3 | Confirm exact bike variant. |
| Yezdi AdventureSelf Lock Nut M8Rev 22 · PDF p. 163 | Handle Bar AssemblyRef 1 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi AdventureSelf Lock Nut M8Rev 22 · PDF p. 201 | Accessory - Main Cage AssemblyRef 19 · Assembly qty. 2 | Confirm exact bike variant. |
| Yezdi AdventureSelf Lock Nut M8Rev 22 · PDF p. 209 | Accessories - Head Lamp Grill And Pannier Carrier KitRef 11 · Assembly qty. 3 | Confirm exact bike variant. |
