Jawa & Jawa 42 Platform · ASSEMBLY 33 · REV 36
Rear Brake Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 103Original parts list ↗
Parts in this drawing
20 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Rear Brake PanelT2001GKW0010N | 1 | |
| 2 | Brake Shoe CompT2001JKW0010N | 2 | |
| 3 | Tension Spring For Rear Brake ShoeT20010KW0060N | 2 | |
| 4 | Rear Brake CamT20010KW0040N | 1 | |
| 5 | Felt Ring For Front Brake Cam29170090 | 1 | |
| 6 | Rear Brake Wear IndicatorT2001CKW0030N | 1 | |
| 7 | Rear Brake ArmT2001CKW0010N | 1 | |
| 8 | Bolt Hex Fl M6X1X35X8.8SF0102208 | 1 | |
| 9 | Nut Hex Fl M6X1X6X8 GrSF0301005 | 1 | |
| 10 | Step Bolt M8X1.25SF0101043 | 1 | |
| 11 | Rubber Washer (Dia 10X24X2.8)MF01700000300 | 1 | |
| 12 | Special Washer M8SF0400018 | 1 | |
| 13 | Self Lock Nut M8TSF0318005 | 2 | |
| 14 | A02-Split Pin 2 X 16 Is:549MF01920001500 | 2 | |
| 15 | Holder, Rear Brake RodT20000KW0060N | 1 | |
| 16 | Brake Shoe AsslyT20010KW0050N | 1 | |
| 17 | Rear Brake Torque LinkT2001GKW0020N | 1 | |
| 18 | Pivot Screw - M8SP0108004 | 1 | |
| 19 | Washer Spring L M10X18.1X2.2Xzn5SF0402011 | 1 | |
| 20 | Washer 10.3*20*0.8T18010UF0920N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

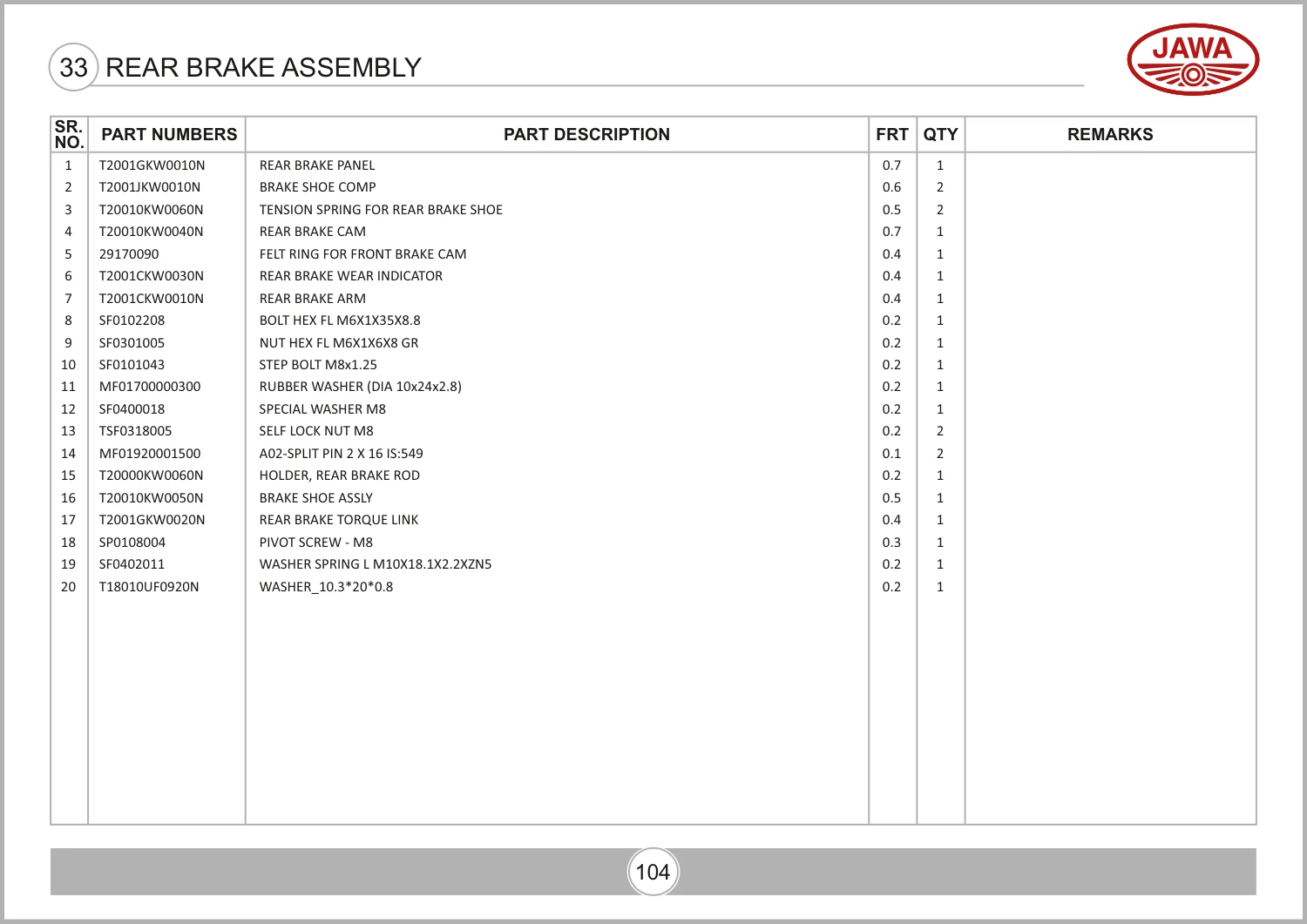

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 118, parts table page 119. View original parts table ↗
