Jawa Perak · ASSEMBLY 42 · REV 24

Fairing Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak Fairing Assembly exploded assembly diagram, catalogue page 117

Jawa Perak · Rev 24 · p. 117Original parts list ↗

Parts in this drawing

27 entries

Ref.	Part name / number	Assembly qty.	Action
1	M6 Nyloc Nut (Black)TSF0318007	2	Enquiry ↗
2	Collar Tail Lamp MtgMF01730000300	2	Enquiry ↗
3	Fr Fairing Lower Cowl Matt Charcoal GreyT08020J30010L	1	Enquiry ↗
3.1	Fr Fairing Lower Ebony Matt Black Fwd FootrestT13160KW0360W	1	Enquiry ↗
4	Screw Rdskt M8X1.25X16Xa2-70SF0212025	6	Enquiry ↗
5	Fr Fairing Upper Cowl Matt Charcoal GreyT08020J30020L	1	Enquiry ↗
5.1	Fr Fairing Upper Cowl Ebony Matt Black Fwd FootrestT13160KW0350W	1	Enquiry ↗
6	Grommet Tail CoverT13030KG0130N	1	Enquiry ↗
7	Plug Handle Bar LHT13160KW0010N	1	Enquiry ↗
8	Plug Handle Bar RHT13160KW0020N	1	Enquiry ↗
9	Speedometer AssemblyT1501HJ30010N	1	Enquiry ↗
10	Washer Plain M6X18X1.6SF0401090	4	Enquiry ↗
11	Head Lamp AssemblyT1501DKW0010E	1	Enquiry ↗
12	Screw Rdskt M6X1X12Xa2-70SF0212026	2	Enquiry ↗
13	Horn Assembly - J301T1501BKW0010L	1	Enquiry ↗
14	Screw M6 X 25TSF0214019	2	Enquiry ↗
15	Turn Signal Indicator Front LHT1501GKW0010E	1	Enquiry ↗
15.1	Turn Signal Indicator Front LH Fwd FootrestT1501GKW0090N	1	Enquiry ↗
16	Turn Signal Indicator Front RHT1501GKW0020E	1	Enquiry ↗
16.1	Turn Signal Indicator Front RH Fwd FootrestT1501GKW0100N	1	Enquiry ↗
17	Damper Head Lamp Stay LowerT13160KW0130N	2	Enquiry ↗
18	Logo Horn Cover JawaT13200KW0050N	1	Enquiry ↗
19	Horn Assembly With Logo - J301T1501BKW0030L	1	Enquiry ↗
20	Special, Bolt 8Mm-SilverTSF0100005	1	Enquiry ↗
20.1	Screw Rdskt M8X1.25X12X8.8-Black Fwd FootrestSF0212046	1	Enquiry ↗
21	Lower Cowl Mounting Bracket Fwd FootrestT13160KW0410N	1	Enquiry ↗
22	Socket Head Screw M6X12 Fwd FootrestSP0306006	2	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

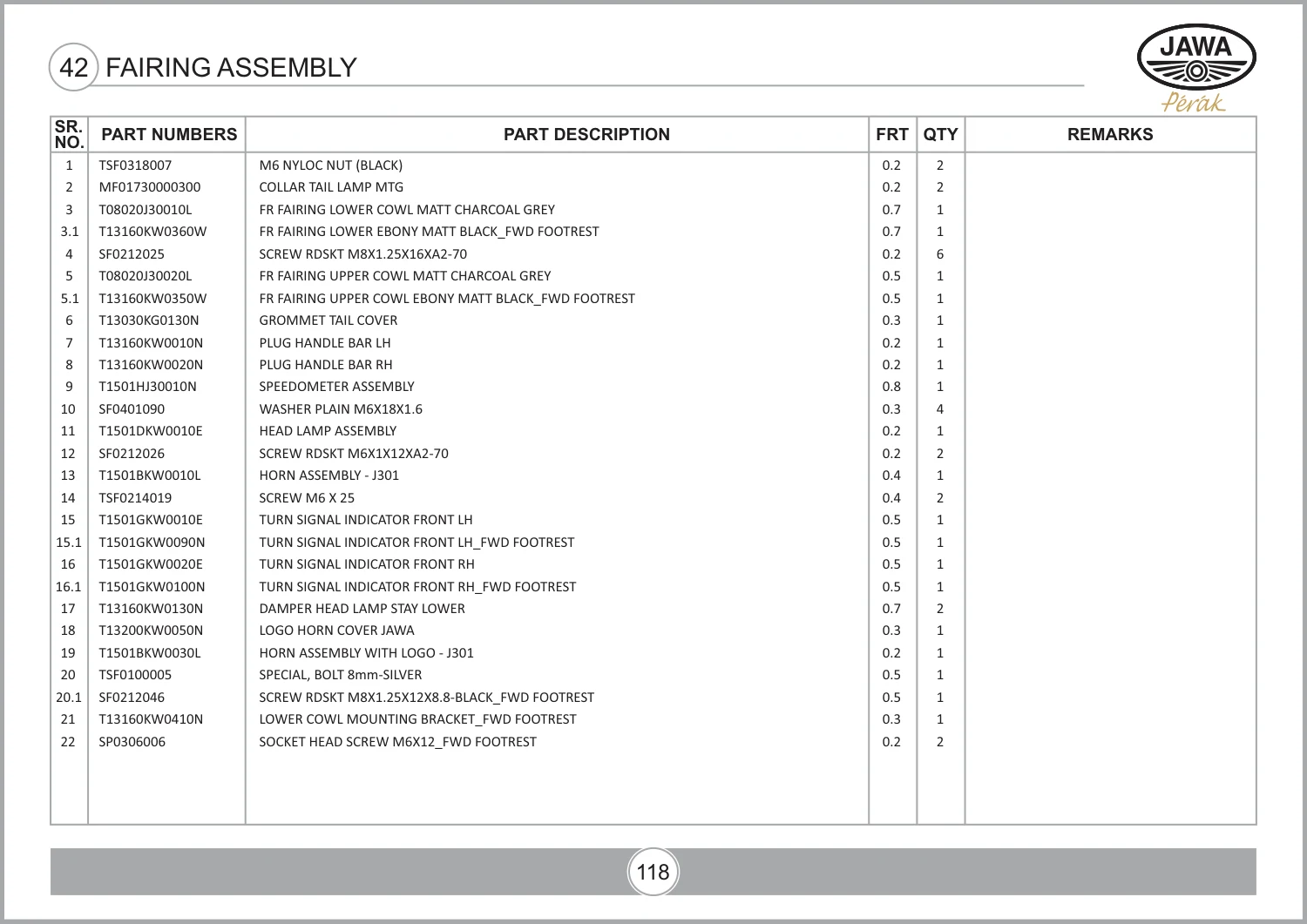

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 129, parts table page 130. View original parts table ↗
