Side Panel LH & RH Assy / ECU & Relay / Fusebox

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak Side Panel LH & RH Assy / ECU & Relay / Fusebox exploded assembly diagram, catalogue page 119

Jawa Perak · Rev 24 · p. 119Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Side Panel LH Matt BlackT13010J30020E	1	Enquiry ↗
1.1	Side Panel LH Matt Black Fwd FootrestT13010J30020T	1	Enquiry ↗
2	Screw Rdskt M6X1X12Xa2-70SF0212023	7	Enquiry ↗
2.1	Screw Rdskt M6X1X12X8.8 Fwd FootrestSF0212037	7	Enquiry ↗
3	Tool KitT14010KW0010N	1	Enquiry ↗
4	Tool Kit BandT14010KE0010N	1	Enquiry ↗
5	Damper Side Panel LockT18080KS0020N	2	Enquiry ↗
6	Bead Side Panel J3T13010J30060N	2	Enquiry ↗
7	Box Side Cover LH Matt Charcoal GreyT13010J30040L	1	Enquiry ↗
7.1	Box Side Cover LH Ebony Matt Black Fwd FootrestT13010J30190N	1	Enquiry ↗
8	Side Cover Lock C300T2401FKW0010N	2	Enquiry ↗
8.1	Kit Side Cover Lock With KeyT13000J10060N	2	Enquiry ↗
9	Grommet Side Cover FrontT13010KT0140N	2	Enquiry ↗
10	Side Panel RH Matt BlackT13010J30030E	1	Enquiry ↗
10.1	Side Panel RH Matt Black Fwd FootrestT13010J30030T	1	Enquiry ↗
11	Plug Side CoverT13010KT0120N	2	Enquiry ↗
12	Electronic Control Unit - OBD-1T1502GJ20010N	1	Enquiry ↗
12.1	Electronic Control Unit - OBD-2AT1502GJ20020N	1	Enquiry ↗
12.2	Electronic Control Unit Hardware (Single Spark)T1502GJ30080N	1	Enquiry ↗
13	Bracket ECU Mtg.T13010J30070N	1	Enquiry ↗
14	Bolt Fl.6 X 1295701-06012-00	2	Enquiry ↗
15	Bracket Relay MountingT13010J30080N	1	Enquiry ↗
16	Mini Relay (Resistor Type)T1501FKW0120N	5	Enquiry ↗
17	Side Panel Rubber CapT13010J30100N	1	Enquiry ↗
18	Stay Exhaust Mtg RHT2201BJ30020N	1	Enquiry ↗
19	Flanged Head Bolt-Sh M6X12SP0906041	4	Enquiry ↗
20	Stay Exhaust Mtg LHT2201BJ30010N	1	Enquiry ↗
21	Box Side Cover RH Matt Charcoal GreyT13010J30050L	1	Enquiry ↗
21.1	Box Side Cover RH Ebony Matt Black Fwd FootrestT13010J30200N	1	Enquiry ↗
22	Air Filter Entry Duct CoverT13010J30090N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

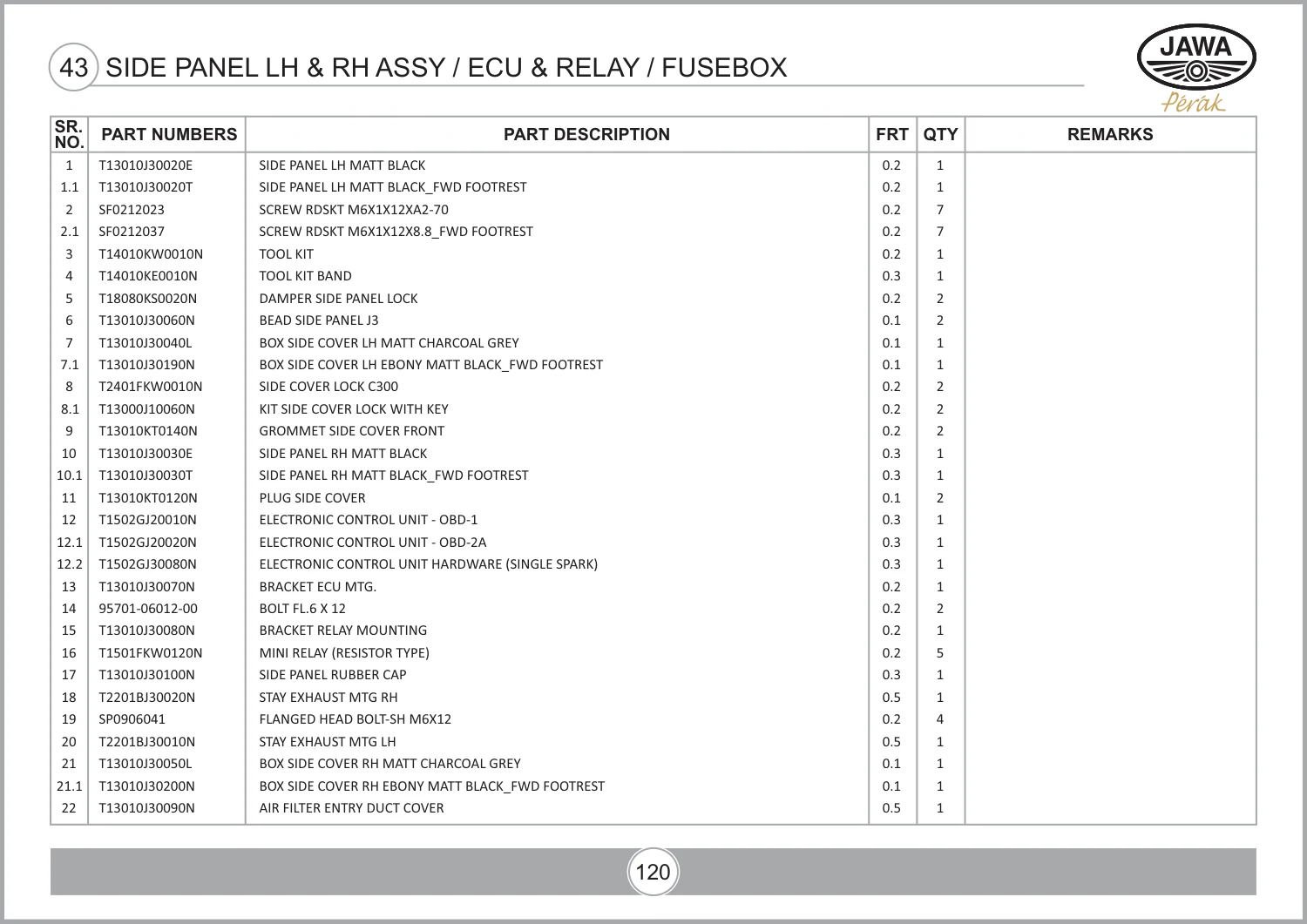

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 131, parts table page 132. View original parts table ↗
