Jawa Perak · ASSEMBLY 44 · REV 24
Frame Assembly / Frame & Mountings / Footrest Assembly
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa Perak · Rev 24 · p. 125Original parts list ↗
Parts in this drawing
15 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 27 | Flange Bolt M6X10TSF0102281 | 2 | |
| 28 | Foam Battery ClampT15010KE0840N | 2 | |
| 29 | Harness Clamping Bracket OBD-II Phase-2T08000J30210N | 1 | |
| 30 | Screw Rdskt M6X1X12X8.8 OBD-II Phase-2SF0212037 | 1 | |
| 31 | Ignition Switch CoverT13000J10040N | 1 | |
| 32 | Ignition Switch Mtg BrktT08000J10150N | 1 | |
| 33 | Radiator Neck Mtg Loose BrktT0401AJ10020N | 1 | |
| 34 | RivetT13000J20290N | 1 | |
| 35 | Grommet SpecialT13160J10110N | 1 | |
| 36 | Hex Soc Cap Head Screw M5*16*0.8SF0105067 | 1 | |
| 37 | Foam For J103T13160KG0080N | 2 | |
| 38 | Washer Plain G6.3X15.8X1.65SF0401129 | 1 | |
| 39 | Bolt Hex Fl M6X1X45X8.8XznSF0102003 | 2 | |
| 40 | M6 Nyloc Nut (Black)TSF0318007 | 2 | |
| 41 | Foam Ignition Switch CoverT13010J20220N | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

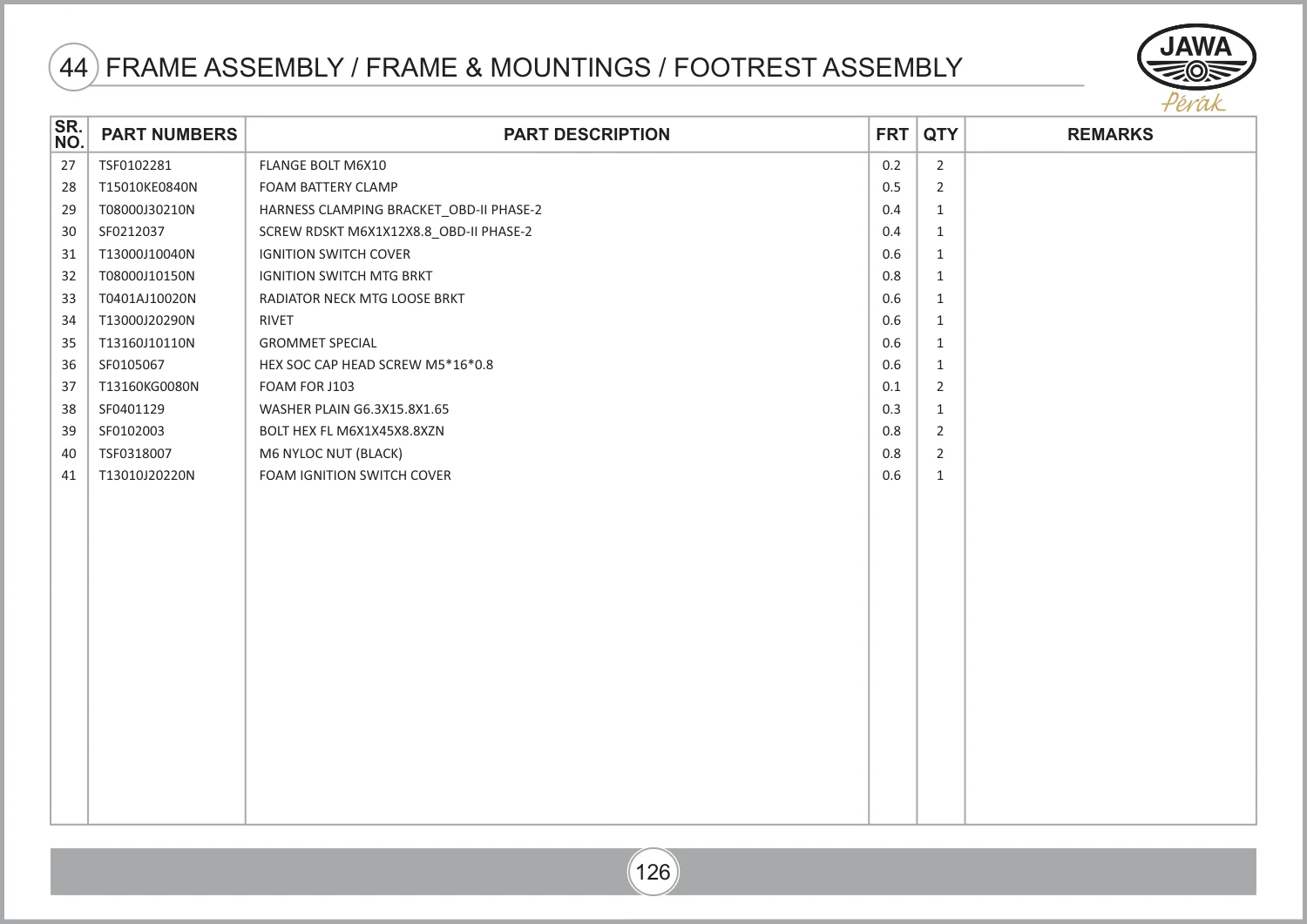

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 137, parts table page 138. View original parts table ↗
