Jawa Perak · ASSEMBLY 44 · REV 24

Frame Assembly / Frame & Mountings / Footrest Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak Frame Assembly / Frame & Mountings / Footrest Assembly exploded assembly diagram, catalogue page 123

Jawa Perak · Rev 24 · p. 123Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Frame Assembly Kit (Regular Footrest Frame With Expansion Chamber Bracket)T08000J30150N	1	Enquiry ↗
1.1	Frame Assembly Kit (Fwd Footrest Frame With Expansion Chamber Bracket)T08000J30160N	1	Enquiry ↗
1.2	Frame Kit With Ignition Switch Cover (Frame Without Expansion Chamber Bracket)T14000J30470N	1	Enquiry ↗
2	Anti Abrasive Tape Head PipeT08000KE0020N	1	Enquiry ↗
2.1	Anti Abrasive Tape Head Pipe Fwd FootrestT08000J10010N	1	Enquiry ↗
3	Battery BoxT08000J30020N	1	Enquiry ↗
4	Bolt Fl.6 X 1295701-06012-00	5	Enquiry ↗
5	Pad Battery BoxT1503DKE0250N	6	Enquiry ↗
6	Clamp Battery BoxT08000J30040N	1	Enquiry ↗
7	Clamp Throttle CableT0702JKE0010N	3	Enquiry ↗
8	Ignition Switch AssyT1501NKW0010N	1	Enquiry ↗
9	Hex Bolt 5 X 12TSF0101269	1	Enquiry ↗
10	Rider Footrest LH Black GlossyT2201AKW0020W	1	Enquiry ↗
11	Spring Washer (M8)SP3908001	4	Enquiry ↗
12	Flange Bolt M8 X 1.25 X 25LSF0102057	6	Enquiry ↗
13	Stay Exhaust Mtg LHT2201BJ30010N	1	Enquiry ↗
14	Swing Arm Axle M16T1101CKW0010N	1	Enquiry ↗
15	Self Lock Nut M16TSF0318003	1	Enquiry ↗
16	Rider Footrest RH Black GlossyT2201AJ30020W	1	Enquiry ↗
17	Stay Exhaust Mtg RHT2201BJ30020N	1	Enquiry ↗
18	Socket Head Screw M8X70TSF0212016	1	Enquiry ↗
19	Pin, Pedal Return SpringT2201AKW0150N	1	Enquiry ↗
20	Screw Socket M8X1.25X30X10.9SF0224176	1	Enquiry ↗
21	Ignition Coil With CableT1502CKE0050N	1	Enquiry ↗
22	Bolt, Hex Flange Head Sh-M6X20SP0906029	1	Enquiry ↗
23	Washer 6.5X20X1.6TSF0401124	1	Enquiry ↗
24	Bypass Resistor RosT1501AKW0230N	1	Enquiry ↗
25	Cable Strap 200MmT1501AKE2050E	1	Enquiry ↗
26	Clutch Cable Mounting Bracket ChromeT0219BVE0010N	1	Enquiry ↗
26.1	Clutch Cable Mounting Bracket Black Mat Raven TextureT0219BVE0010E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

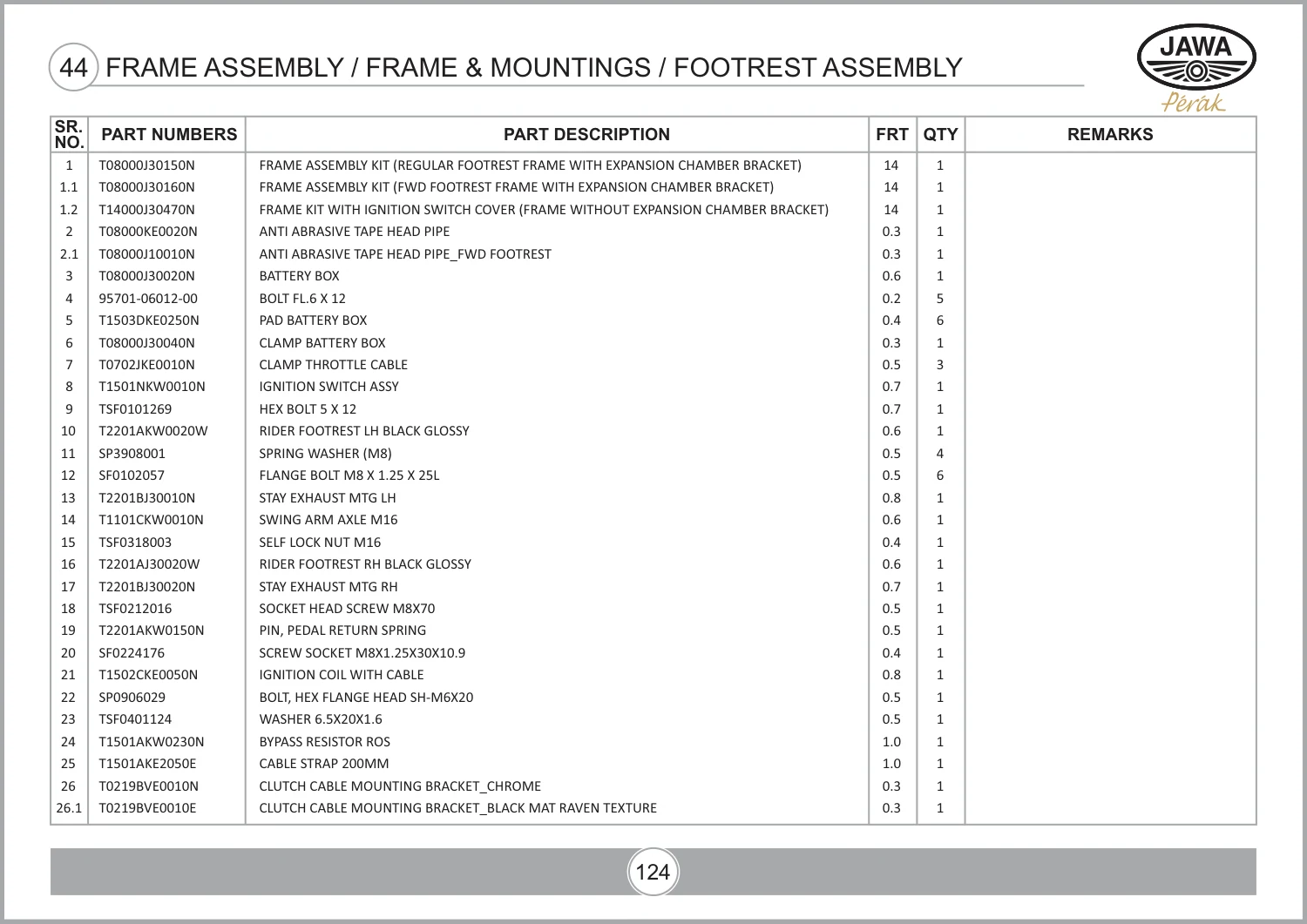

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 135, parts table page 136. View original parts table ↗
