Jawa Perak · ASSEMBLY 48 · REV 24

Headlamp, Tail Lamp, Indicator Fr & RR, Speedometer Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa Perak Headlamp, Tail Lamp, Indicator Fr & RR, Speedometer Assembly exploded assembly diagram, catalogue page 137

Jawa Perak · Rev 24 · p. 137Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Head Lamp AssemblyT1501DKW0010E	1	Enquiry ↗
2	Bulb 12V,H4 60/55WT1501DKW0060N	1	Enquiry ↗
2.1	Bulb 12V,H4 60/55W - Blue VisionT1501DKW0340N	1	Enquiry ↗
3	Dust CoverT1501DKW0050N	1	Enquiry ↗
4	Bulb 12V,5WT1501DKW0070N	1	Enquiry ↗
4.1	Bulb 12V, W5W - Blue VisionT1501DKW0350N	1	Enquiry ↗
5	Wiring Harness - Position LampT1501DKW0080N	1	Enquiry ↗
6	Turn Signal Indicator Front RHT1501GKW0020E	1	Enquiry ↗
6.1	Turn Signal Indicator Front RH Fwd FootrestT1501GKW0100N	1	Enquiry ↗
7	Turn Signal Indicator Front LHT1501GKW0010E	1	Enquiry ↗
7.1	Turn Signal Indicator Front LH Fwd FootrestT1501GKW0090N	1	Enquiry ↗
8	Turn Signal Indicator Rear RHT1501GKW0040E	1	Enquiry ↗
8.1	Turn Signal Indicator Rear RH Fwd FootrestT1501GKW0120N	1	Enquiry ↗
9	Turn Signal Indicator Rear LHT1501GKW0030E	1	Enquiry ↗
9.1	Turn Signal Indicator Rear LH Fwd FootrestT1501GKW0110N	1	Enquiry ↗
10	Bulb R10T1501GKW0050N	4	Enquiry ↗
11	Rubber GasketT1501GKW0060N	4	Enquiry ↗
12	LensT1501GKW0070N	4	Enquiry ↗
13	Fastner-IndicatorT1501GKW0080N	4	Enquiry ↗
14	Speedometer AssemblyT1501HJ30010N	1	Enquiry ↗
15	Bracket Speedometer MountingT13160KW0170N	1	Enquiry ↗
15.1	Bracket Speedometer Mounting Fwd FootrestT13170KW0020N	1	Enquiry ↗
16	Collar For M5T13160KW0190N	2	Enquiry ↗
17	Grommet For M5T13160KW0180N	2	Enquiry ↗
18	Fuel Gauge-Flange Bolt (M5×12)TSF0102272	2	Enquiry ↗
19	Tail Lamp - J301T1501EJ30010N	1	Enquiry ↗
19.1	Tail Lamp ImcrT1501EJ30050N	1	Enquiry ↗
20	Number Plate LampT1501TKW0010N	1	Enquiry ↗
21	Gasket - Speedometer (Jawa)T1501HKW0060N	1	Enquiry ↗
22	Headlamp - Rubber RingT1501DKW0100N	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

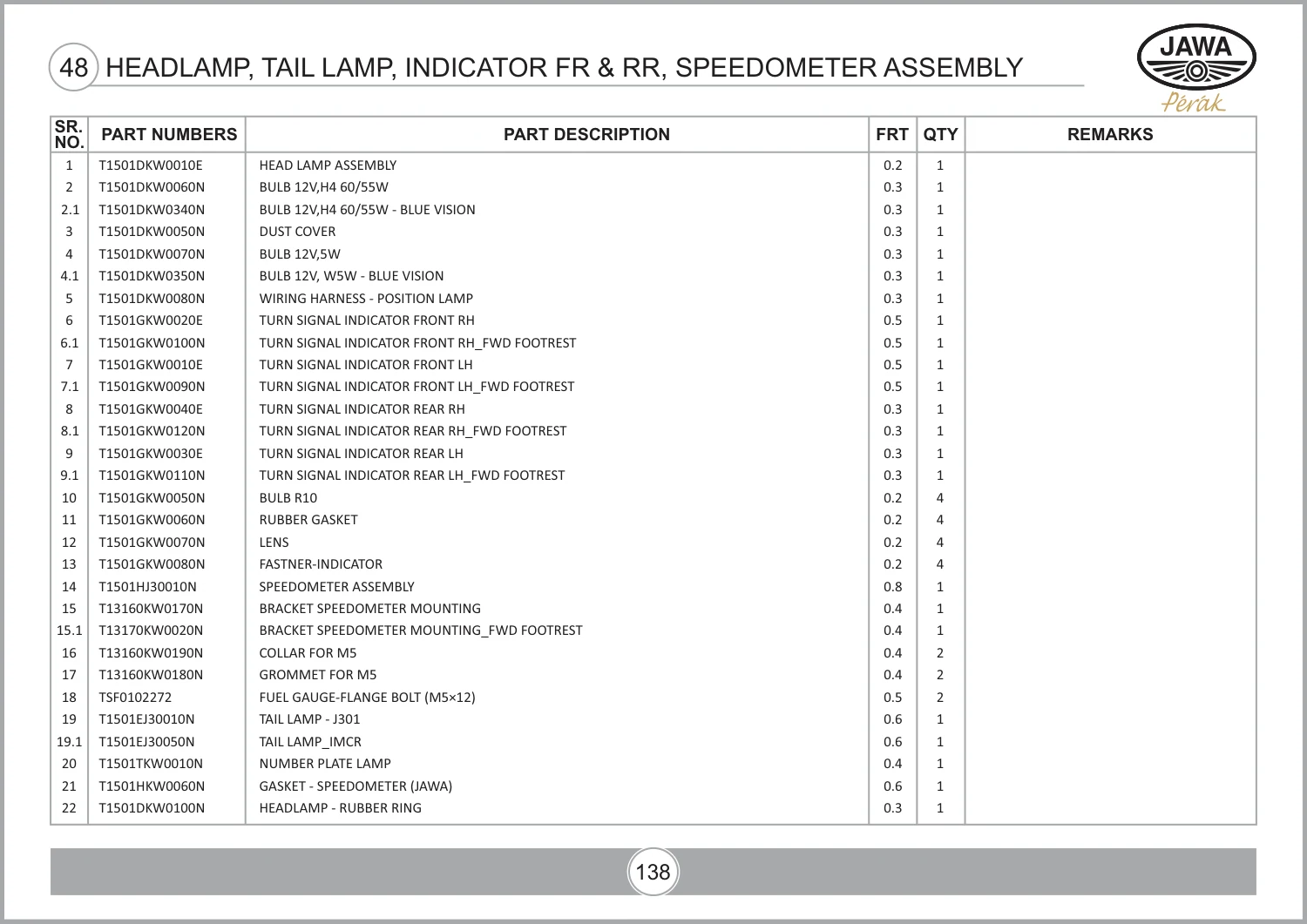

Source: PARTS CATALOGUE - JAWA PERAK_REV-24.pdf · PDF diagram page 149, parts table page 150. View original parts table ↗
