Headlamp - Rim Assembly - J1A
T1501DKW0270N
Enquiry ↗CATALOGUE DRAWING
This part is reference 26

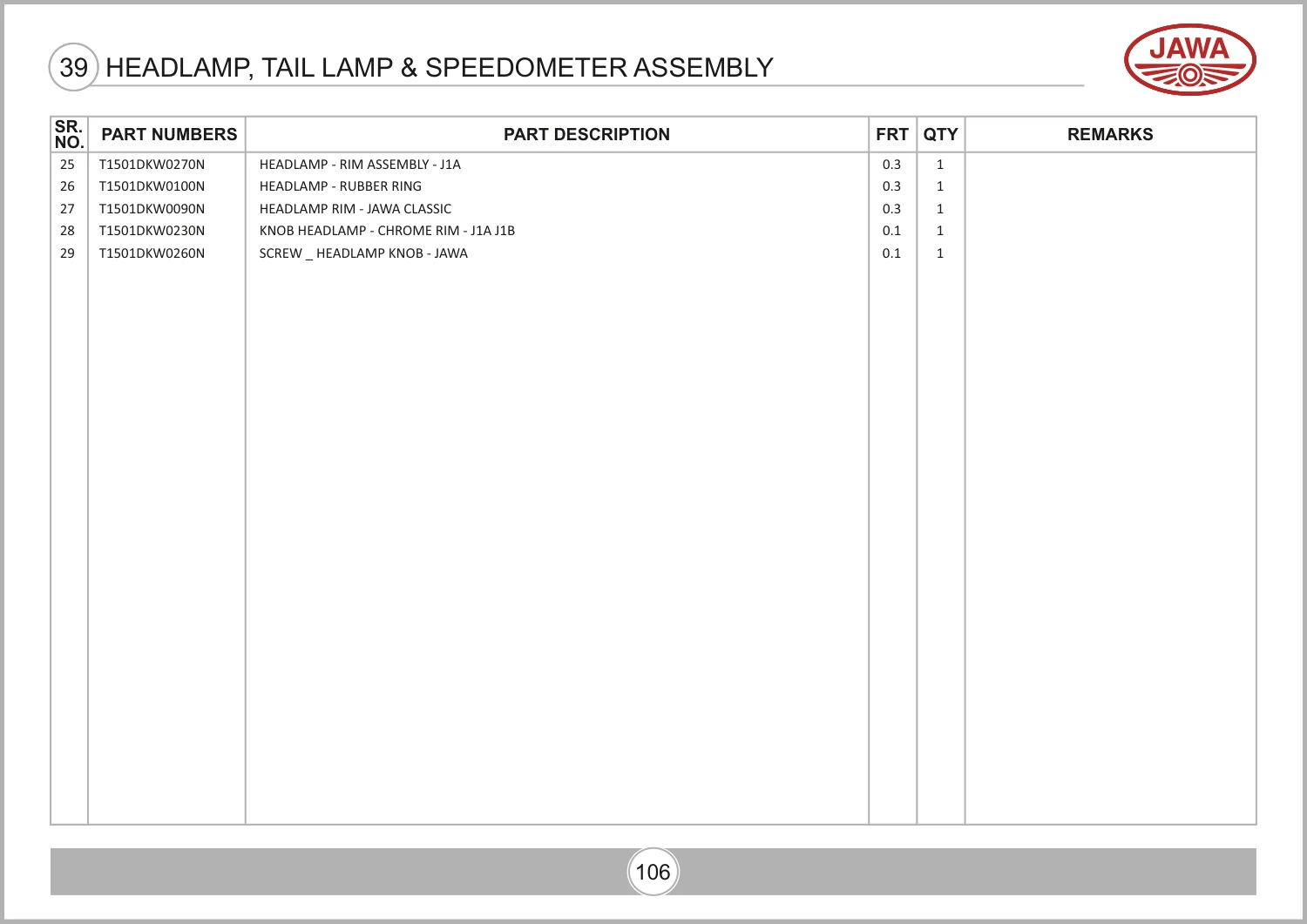

Jawa 350 · Rev 05 · p. 105Original parts list ↗
Highlighted catalogue reference 26. The image shows the complete assembly.
Headlamp - Rubber Ring · T1501DKW0100N
Listed in the supplied Jawa 350 catalogue, revision 05, under Headlamp, Tail Lamp & Speedometer Assembly. Match reference 26 in the drawing. Assembly quantity: 1. Choose the quantity you need in your enquiry above.
Headlamp - Rubber Ring specifications & catalogue names
- Part number
- T1501DKW0100N
- Catalogue part name
- HEADLAMP - RUBBER RING
Bike catalogues listing this part number
These are catalogue references. Confirm your model year, BS/OBD version and any colour or size notes before ordering.
Model & catalogue references
Match your bike version and these notes. A shared part number does not confirm compatibility with every model year.
| Model / revision | Assembly / reference | Source note |
|---|---|---|
| Jawa 350Headlamp - Rubber RingRev 05 · PDF p. 116 | Headlamp, Tail Lamp & Speedometer AssemblyRef 26 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa PerakHeadlamp - Rubber RingRev 24 · PDF p. 150 | Headlamp, Tail Lamp, Indicator Fr & RR, Speedometer AssemblyRef 22 · Assembly qty. 1 | Confirm exact bike variant. |
| Jawa & Jawa 42 PlatformHeadlamp - Rubber RingRev 36 · PDF p. 207 | Headlamp, Tail Lamp, Indicator Front & Rear, License Plate Lamp & Speedometer AssemblyRef 37 · Assembly qty. 1 | Confirm exact bike variant. |
