Jawa & Jawa 42 Platform · ASSEMBLY 53 · REV 36

Headlamp, Tail Lamp, Indicator Front & Rear, License Plate Lamp & Speedometer Assembly

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Headlamp, Tail Lamp, Indicator Front & Rear, License Plate Lamp & Speedometer Assembly exploded assembly diagram, catalogue page 191

Jawa & Jawa 42 Platform · Rev 36 · p. 191Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
33.11	Casing Tail Lamp Matt RedT1501EKW0030X	1	Enquiry ↗
33.12	Casing Tail Lamp Matt WhiteT1501EKW0030B	1	Enquiry ↗
33.13	Casing Tail Lamp Gloss BlackT1501EKW0030Y	1	Enquiry ↗
33.14	Casing Tail Lamp Galaxy GreyT1501EKW0030R	1	Enquiry ↗
33.15	Casing Tail Lamp Rocky BeigeT1501EKW0030M	1	Enquiry ↗
33.16	Casing Tail Lamp All Star Black Jawa 42 Ug 2.2 & Jawa 42 Dual DiscT1501EKW0070Y	1	Enquiry ↗
33.17	Casing Tail Lamp Mystic Copper Jawa 42 Ug 2.2T1501EKW0070X	1	Enquiry ↗
33.18	Casing Tail Lamp Nebula Blue Jawa 42 Ug 2.2T1501EKW0070C	1	Enquiry ↗
33.19	Casing Tail Lamp Rocky Beige Jawa 42 Ug 2.2T1501EKW0070M	1	Enquiry ↗
33.20	Casing Tail Lamp Jawa 42 Nebula Blue Jawa 42 OgT13000KW0560C	1	Enquiry ↗
33.21	Casing Tail Lamp Jawa 42 Red Matte Jawa 42 OgT13000KW0560A	1	Enquiry ↗
33.22	Casing Tail Lamp Jawa 42 Rockey Beige Jawa 42 OgT13000KW0560T	1	Enquiry ↗
33.23	Casing Tail Lamp Jawa 42 Copper Matte Jawa 42 OgT13000KW0560K	1	Enquiry ↗
33.24	Casing Tail Lamp Jawa 42 All Star Black Jawa 42 OgT13000KW0560E	1	Enquiry ↗
33.25	Casing Tail Lamp Jawa 42 Nebula Blue Matte Jawa 42 Og UgT13000KW0560V	1	Enquiry ↗
33.26	Casing Tail Lamp Jawa 42 Red Matte Jawa 42 Og UgT13000KW0610A	1	Enquiry ↗
33.27	Casing Tail Lamp Jawa 42 Ivory Jawa 42 Og UgT13000KW0560Y	1	Enquiry ↗
33.28	Casing Tail Lamp Jawa 42 White Matte Jawa 42 Og UgT13000KW0610B	1	Enquiry ↗
33.29	Casing Tail Lamp Jawa 42 All Star Black Jawa 42 Og UgT13000KW0610E	1	Enquiry ↗
34	Nut Clip 5Mm (Black)TSF0300022	1	Enquiry ↗
35	M6 NutTSF0301091	1	Enquiry ↗
36	Headlamp - Rim Assembly - J1AT1501DKW0270N	1	Enquiry ↗
36.1	Headlamp - Rim Assembly - J1BT1501DKW0290N	1	Enquiry ↗
36.2	Headlamp - Rim Assembly - J1B UgT1501DKW0280E	1	Enquiry ↗
37	Headlamp - Rubber RingT1501DKW0100N	1	Enquiry ↗
38	Washer 10.3200.8T18010UF0920N	1	Enquiry ↗
39	Headlamp Rim - Jawa ClassicT1501DKW0090N	1	Enquiry ↗
39.1	Headlamp Rim - Jawa Fourty TwoT1501DKW0110N	1	Enquiry ↗
39.2	Headlamp Rim - Jawa Fourty Two UgT1501DKW0160E	1	Enquiry ↗
39.3	Headlamp Rim Jawa 42 Ug 2.2T1501DKW0370E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

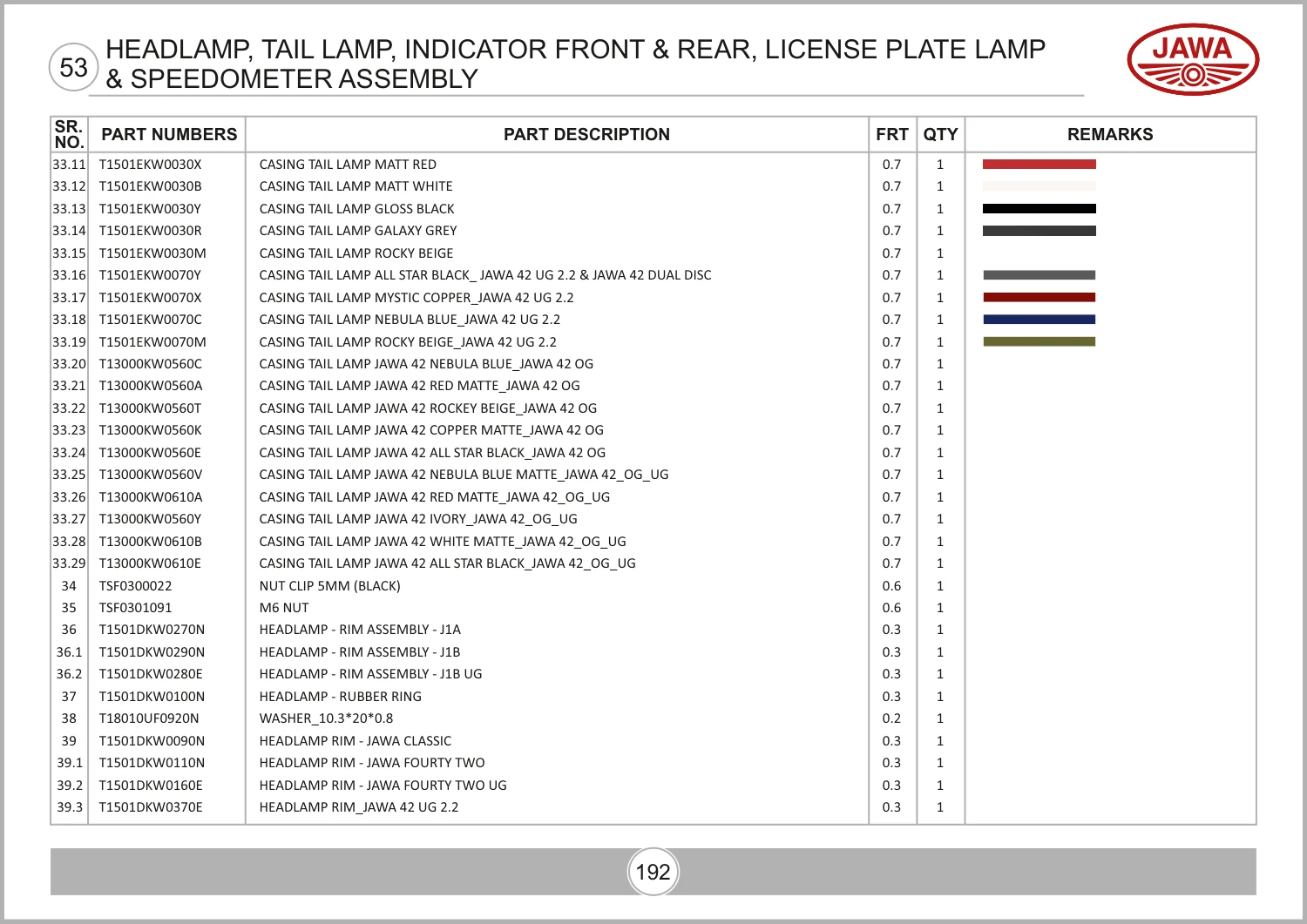

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 206, parts table page 207. View original parts table ↗
