Jawa & Jawa 42 Platform · ASSEMBLY 4 · REV 36

Cylinder Head Explosion

Select a diagram reference or a row below to enquire about the exact part.

CATALOGUE DRAWING

Tap a diagram number to select a part

Jawa & Jawa 42 Platform Cylinder Head Explosion exploded assembly diagram, catalogue page 9

Jawa & Jawa 42 Platform · Rev 36 · p. 9Original parts list ↗

Parts in this drawing

30 entries

Ref.	Part name / number	Assembly qty.	Action
1	Cylinder Head And Camshaft Holder Kit J1B BSIVT0202BVE0080E	1	Enquiry ↗
1.1	Cylinder Head And Camshaft Holder Kit J1B BSVI (Cp3)T0202BVE0150N	1	Enquiry ↗
1.2	Cylinder Head And Camshaft Holder Kit J1B OBD II (Cp4)T0202BVG0140N	1	Enquiry ↗
1.3	Cylinder Head And Camshaft Holder Kit J1A BSVI (Cp4)T0202BVG0170N	1	Enquiry ↗
1.4	Cylinder Head And Camshaft Holder Kit J1B Black Mat Raven TextureT0202BVG0390N Applicable for JAWA 42	1	Enquiry ↗
2	Water SensorT1502HUF0060N	1	Enquiry ↗
3	Spark PlugT1502DUF0070N	1	Enquiry ↗
3.1	Spark Plug (Fm) (Jawa 42)T1502DVG0010N FIT FROM - MZDKW1C16R1C12360	1	Enquiry ↗
4	Gromate, Spark PlugT02010UF0020N	1	Enquiry ↗
5	Stud Muffler (M8X41) BSIVT0202BUF0830N	4	Enquiry ↗
5.1	Stud Muffler (M8X48) BSVIT0202BVG0040N	4	Enquiry ↗
6	Dowel Pin, Hollow (Ø8*12)MJ01760000500	2	Enquiry ↗
7	O-Ring, Camshaft HolderT18040UF0090N	2	Enquiry ↗
8	Bolt, Hex Flange Sh - M6X35TSF0102290	7	Enquiry ↗
9	Dowel Pin, Solid (Ø6X14)T0202AUF0820N	2	Enquiry ↗
10	Upper Valve Spring RetainerT0202BUF0420N	4	Enquiry ↗
11	Lower Valve Spring RetainerT0202BUF0410N	4	Enquiry ↗
12	Head Nut Washer Cylinder Head (Ø10.2Ø182)T0202BUF1660N	4	Enquiry ↗
13	Valve Stem SealT0208BUF0510N	4	Enquiry ↗
14	Valve Spring Inner BSIV / BSVIT0202BUF0580N	4	Enquiry ↗
14.1	Inner Valve Spring(C334) OBD IIT0202BVG0240N	4	Enquiry ↗
15	Valve Spring Outer BSIV / BSVIT0202BUF0430N	4	Enquiry ↗
15.1	Outer Valve Spring(C334)T0202BVG0250N	4	Enquiry ↗
16	Gasket, Cylinder Head BSIV & BSVIT02090VE0010N	1	Enquiry ↗
16.1	Gasket, Cylinder Head OBD IIT02090VG0020N	1	Enquiry ↗
17	Bolt, Hex Flange Sh - M6X130 (Head Mount)TSF0102293	2	Enquiry ↗
18	Pan Head Screw (M4*10)93500-04010-OH	1	Enquiry ↗
19	Guide Chain (Top) With InsertT0208AUF0640N	1	Enquiry ↗
20	Head Nut Cap TypeT0202BUF2140N	4	Enquiry ↗
21	Asm Cylinder Head J1B BSIVT0202BVE0090E	1	Enquiry ↗

Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

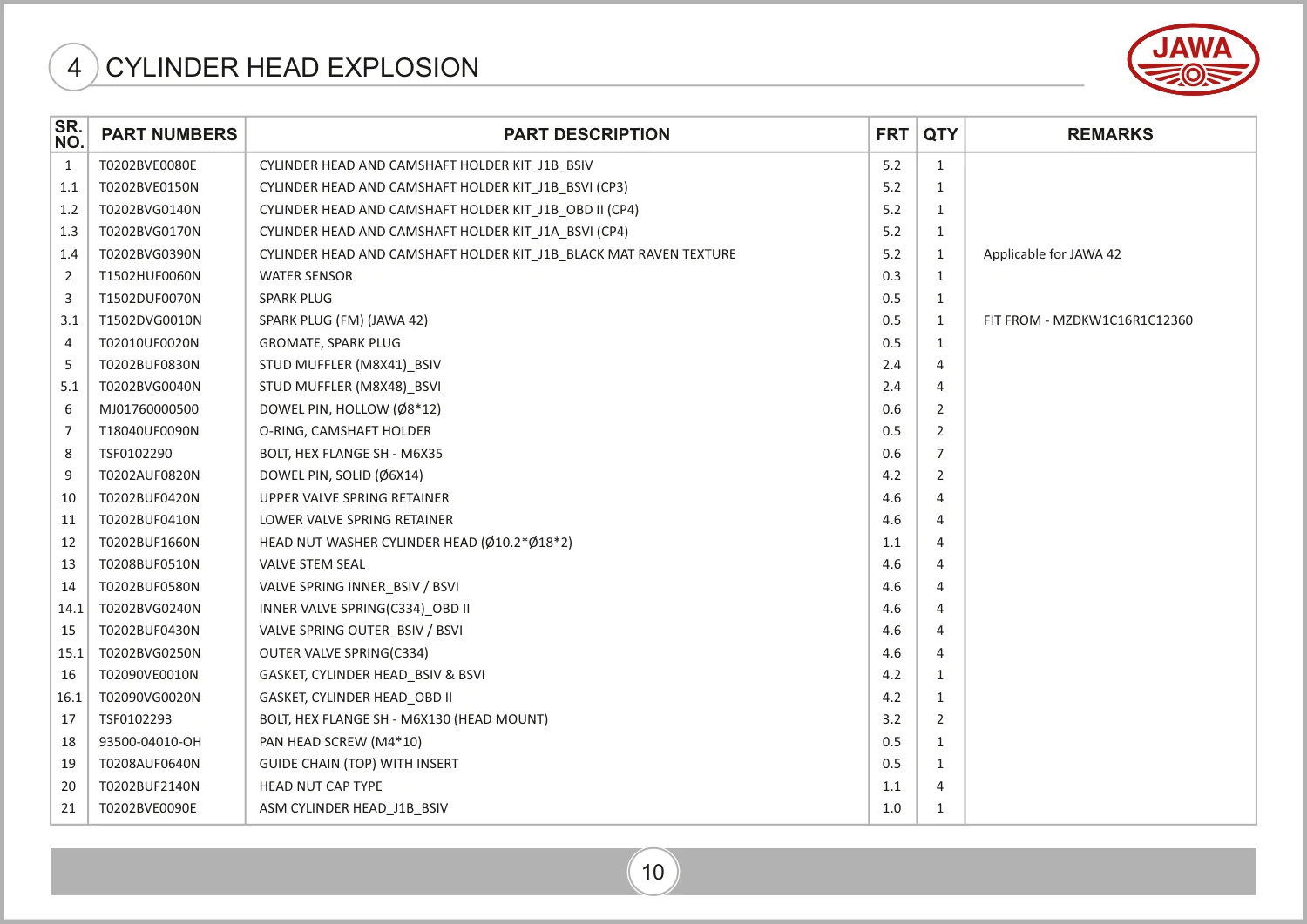

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 24, parts table page 25. View original parts table ↗
