Jawa & Jawa 42 Platform · ASSEMBLY 4 · REV 36
Cylinder Head Explosion
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 11Original parts list ↗
Parts in this drawing
11 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 21.1 | Asm Cylinder Head J1B BSVI (Cp3)T0202BVE0160N | 1 | |
| 21.2 | Asm Cylinder Head J1B OBD II (Cp4)T0202BVG0130N | 1 | |
| 21.3 | Asm Cylinder Head J1A BSVI (Cp4)T0202BVG0160N | 1 | |
| 21.4 | Asm Cylinder Head J1B Black Mat Raven Texture VariantT0202BVG0360N | 1 | |
| 22 | Rubber Grommet Cylinder HeadT0209AVE0020N | 1 | |
| 23 | Cover Thermostat Chrome & NVH Black VariantT04000VE0010N | 1 | |
| 23.1 | Cover Thermostat Black Mat Raven TextureT04000VG0010N | 1 | |
| 24 | Thermostat Valve Two WayT0401EVE0030N | 1 | |
| 25 | O-Ring Themostat 1.78X33.05T0209BVE0020N | 1 | |
| 26 | Bolt, Hex Flange Sh-M6X12SP0906041 | 2 | |
| 27 | Washer Plain M10X19X2SF0401062 | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

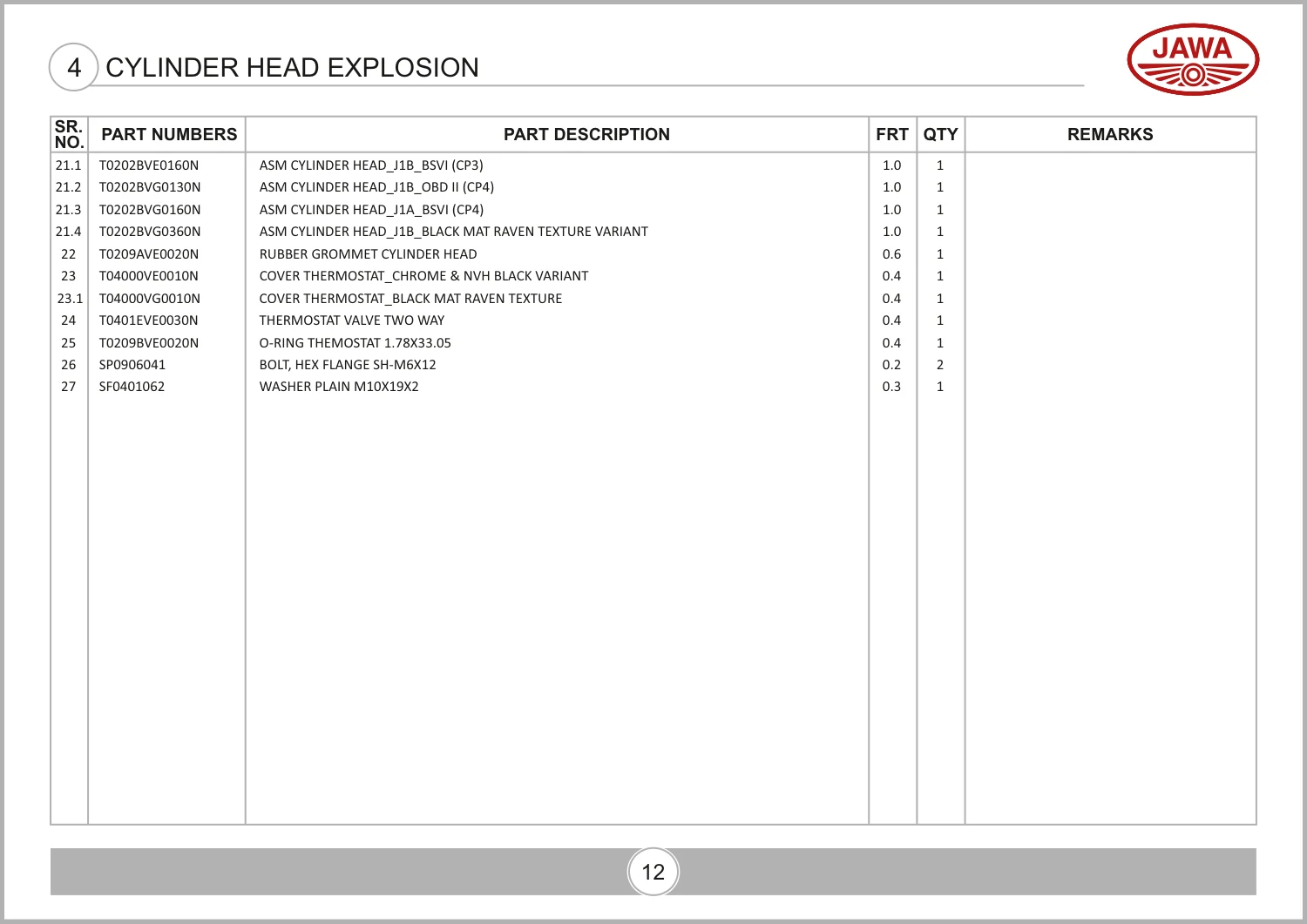

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 26, parts table page 27. View original parts table ↗
