Jawa & Jawa 42 Platform · ASSEMBLY 8 · REV 36
Starting System & Starter Motor
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 19Original parts list ↗
Parts in this drawing
19 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Asm Slipper ClutchT0205BUF0530N | 1 | |
| 2 | Shaft, Starter CounterT0205BUF0350N | 1 | |
| 3 | Assembly, Starter MotorT1503BUF0060N | 1 | |
| 4 | Washer 10.3*20*0.8 (Strater Intrm Gear)T18010UF0920N | 4 | |
| 5 | Bolt, Hex Flange Sh - M6X30 (Starter Motor Count)TSF0102296 | 2 | |
| 6 | Washer One Way ClutchT18010UF0940N | 1 | |
| 7 | Gear, Starter OwcT0205BUF0310N | 1 | |
| 8 | Gear Starter CounterT0205BVG0010N | 1 | |
| 8.1 | Gear, Interim Starter CounterT0205BVG0010N | 1 | |
| 9 | Needle Roller Bearing (Ø26Xø31X24) - Single RowT18050UF0260N | 1 | |
| 10 | Needle Brg Starter Interim Gear (Dia10*Dia14*10)T18050UF0160N | 2 | |
| 11 | Brush Holder SetT1501BKE0010E | 1 | |
| 12 | Square RingT1501BKE0020E | 2 | |
| 13 | O RingT1503BKE0030E | 1 | |
| 14 | Cover Starter Motor Chrome VariantT0202DVE0100N | 1 | |
| 14.1 | Cover Starter Motor NVH Black VariantT0202DVG0150E | 1 | |
| 14.2 | Cover Starter Motor Black Mat Raven TextureT0202DVG1020N | 1 | |
| 15 | Rubber Grommet Starter Motor CoverT0209CVE0010N | 1 | |
| 16 | M6 Nyloc Nut (Black)TSF0318007 | 1 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

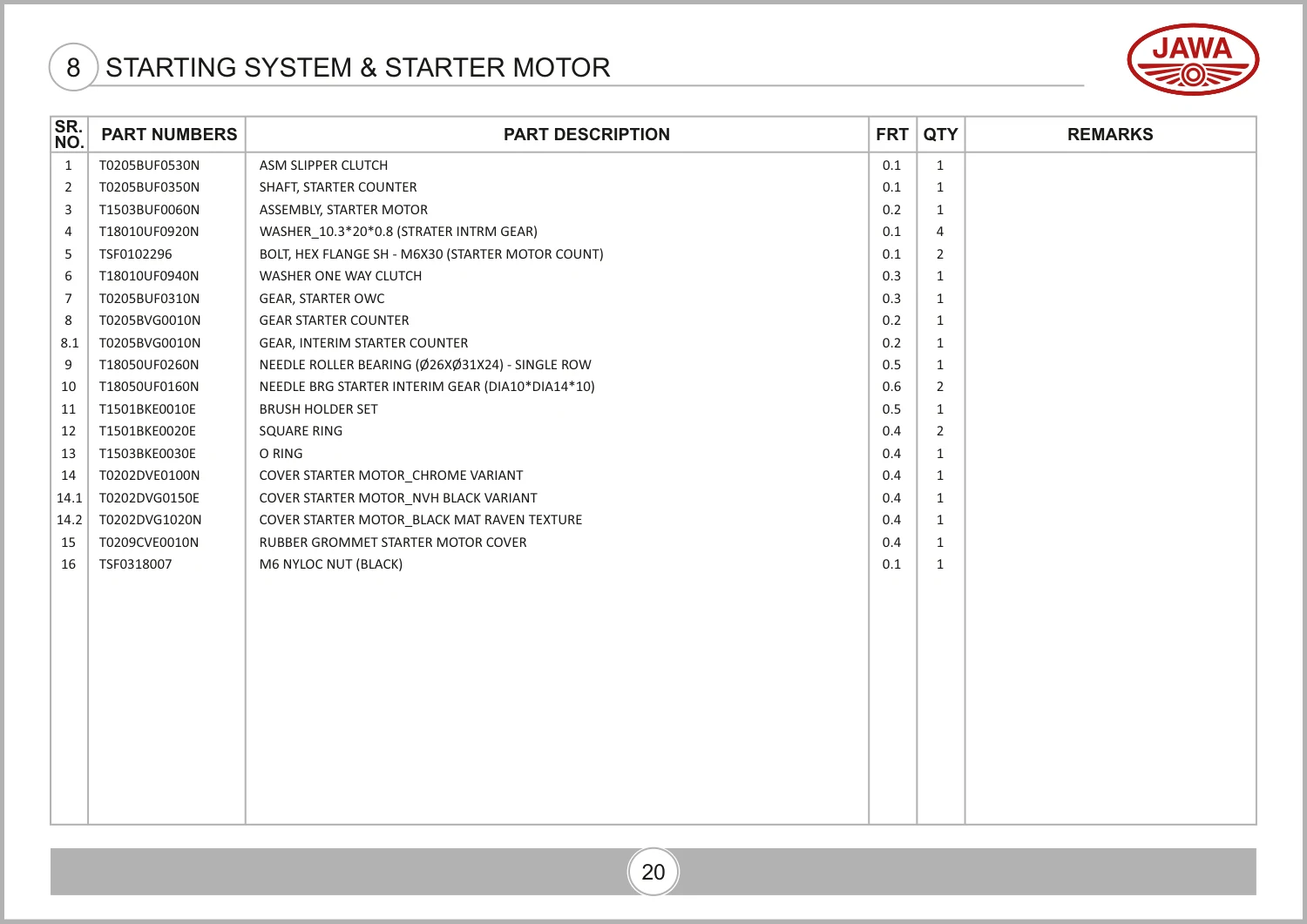

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 34, parts table page 35. View original parts table ↗
