Jawa & Jawa 42 Platform · ASSEMBLY 9 · REV 36
Valve Train And Cam Shaft
Select a diagram reference or a row below to enquire about the exact part.
CATALOGUE DRAWING
Tap a diagram number to select a part
Jawa & Jawa 42 Platform · Rev 36 · p. 21Original parts list ↗
Parts in this drawing
30 entries| Ref. | Part name / number | Assembly qty. | Action |
|---|---|---|---|
| 1 | Valve, IntakeT0208DUF0430N | 2 | |
| 2 | Valve, Exhaust BSIVT0208DUF0420N | 2 | |
| 2.1 | Valve, Exhaust BSVIT0208DVG0010N | 2 | |
| 3 | CotterT0208BUF0490N | 8 | |
| 4 | Upper Valve Spring RetainerT0202BUF0420N | 4 | |
| 5 | Shim KitT0208BUF0480N | 1 | |
| 5 | Shim 2.000-2.020T0208EUF0670N | 4 | |
| 5 | Shim 2.021-2.040T0201AUF0340N | 4 | |
| 5 | Shim 2.041-2.060T0208EUF0680N | 4 | |
| 5 | Shim 2.061-2.080T0201AUF0350N | 4 | |
| 5 | Shim 2.081-2.100T0208EUF0690N | 4 | |
| 5 | Shim 2.101-2.120T0201AUF0360N | 4 | |
| 5 | Shim 2.121-2.140T0208EUF0700N | 4 | |
| 5 | Shim 2.141-2.160T0201AUF0370N | 4 | |
| 5 | Shim 2.161-2.180T0208EUF0710N | 4 | |
| 5 | Shim 2.181-2.200T0201AUF0380N | 4 | |
| 5 | Shim 2.201-2.220T0208EUF0720N | 4 | |
| 5 | Shim 2.221-2.240T0201AUF0390N | 4 | |
| 5 | Shim 2.241-2.260T0208EUF0730N | 4 | |
| 5 | Shim 2.261-2.280T0201AUF0400N | 4 | |
| 5 | Shim 2.281-2.300T0208EUF0740N | 4 | |
| 5 | Shim 2.301-2.320T0201AUF0410N | 4 | |
| 5 | Shim 2.321-2.340T0208EUF0750N | 4 | |
| 5 | Shim 2.341-2.360T0201AUF0420N | 4 | |
| 5 | Shim 2.361-2.380T0208EUF0760N | 4 | |
| 5 | Shim 2.381-2.400T0201AUF0430N | 4 | |
| 5 | Shim 2.401-2.420T0208EUF0770N | 4 | |
| 5 | Shim 2.421-2.440T0201AUF0440N | 4 | |
| 5 | Shim 2.441-2.460T0208EUF0780N | 4 | |
| 5 | Shim 2.461-2.480T0201AUF0450N | 4 |
No matching parts in this drawing.
Assembly quantity is the number used in this assembly. Choose the quantity you need separately. Fitment and supply are confirmed by our team.

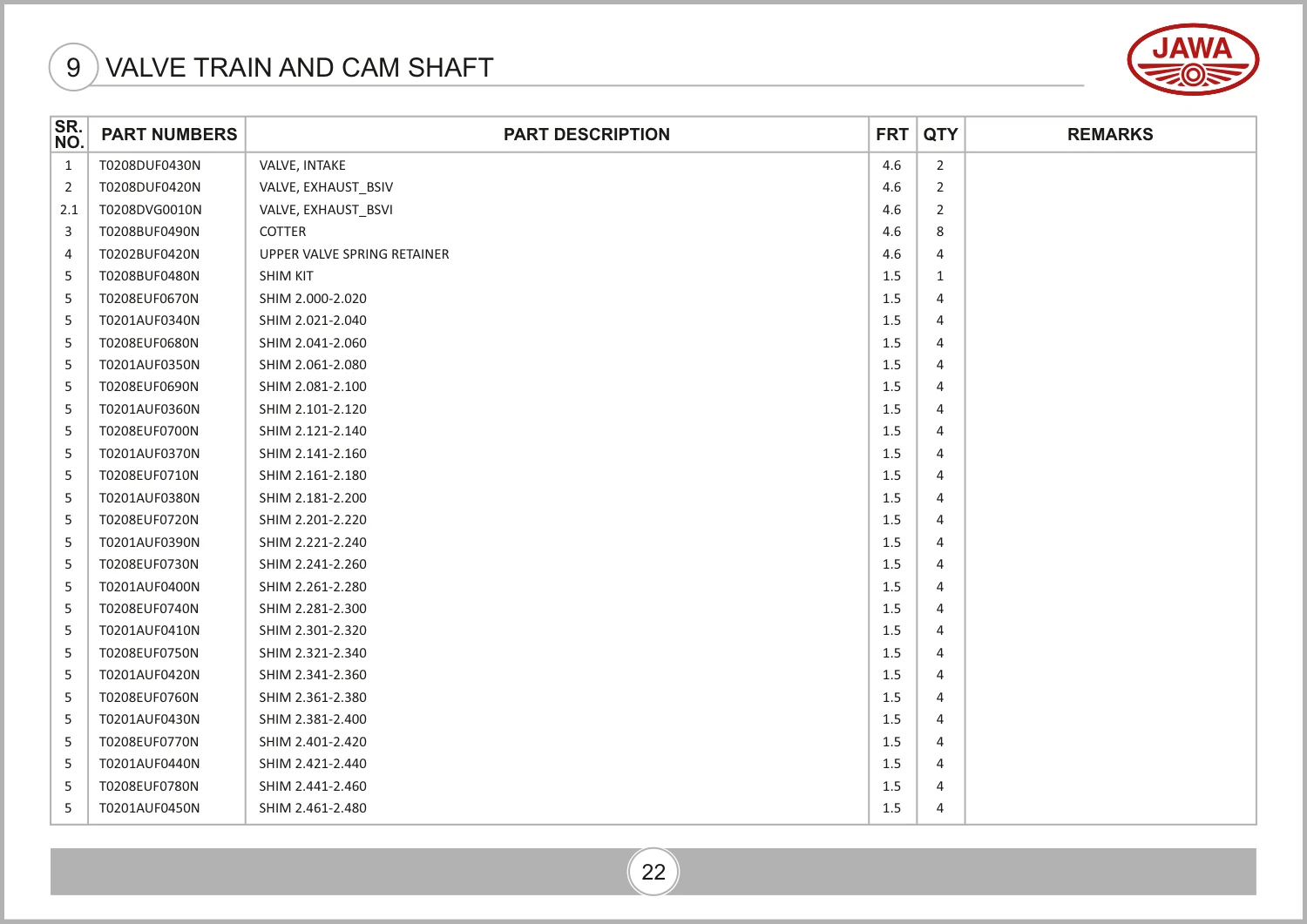

Source: PARTS CATALOGUE - JAWA PLATFORM_REV-36.pdf · PDF diagram page 36, parts table page 37. View original parts table ↗
